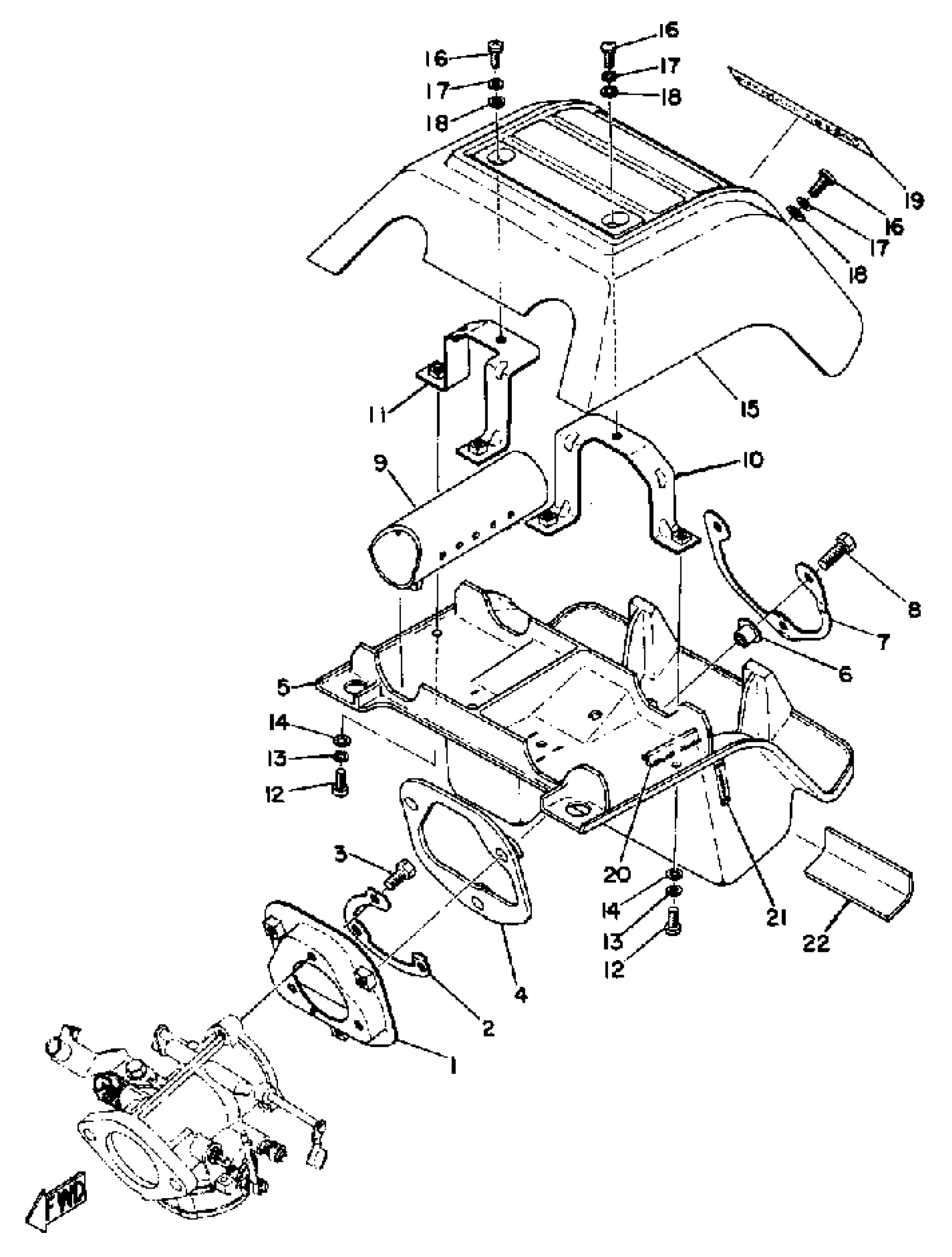

Yamaha TL433F 1974 INTAKE Diagram

#

Description
Price

1

GASKET,MANIFOLD

811-13556-09-00

Unavailable

1

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

2

MANIFOLD, INTAKE

(8F1-13555-00-00)

Unavailable

2

WASHER, SPRING

92995-06100-00

Unavailable

3

GASKET

811-13563-09-00

Unavailable

4

SHAFT, WORM

826-13175-00-00

Unavailable

5

O-RING (11M)

93210-07540-00

$7.49

6

NOZZLE

824-13552-00-00

Unavailable

7

BOLT, SOCKET

91317-08030-00

$8.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

WASHER, PLAIN

92990-08200-00

Unavailable

8

BOLT

97013-08035-00

$5.60

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

WASHER, PLAIN

92990-08200-00

Unavailable

11

BOLT, STUD

(90116-08051-00)

Unavailable

12

GASKET

810-13566-09-00

Unavailable

13

MANIFOLD, INTAKE

(812-13555-70-00)

Unavailable

14

SPACER

(810-13576-00-00)

Unavailable

15

. NUT

95380-08700-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

17

PLATE

(841-14477-00-00)

Unavailable

19

SILENCER, INTAKE 1

(841-14431-00-00)

Unavailable

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

21

JOINT, AIR CLNR 1

841-14453-00-00

Unavailable

22

SPRING, TENSION

90506-06082-00

Unavailable

23

SILENCER, INTAKE 2

(841-14441-02-00)

Unavailable

24

NUT(6TA)

95317-06600-00

Unavailable

25

WASHER, SPRING

92907-06100-00

Unavailable

26

WASHER(6TA)

92907-06200-00

Unavailable

27

CLAMP, THROTTLE

822-41222-00-00

Unavailable
