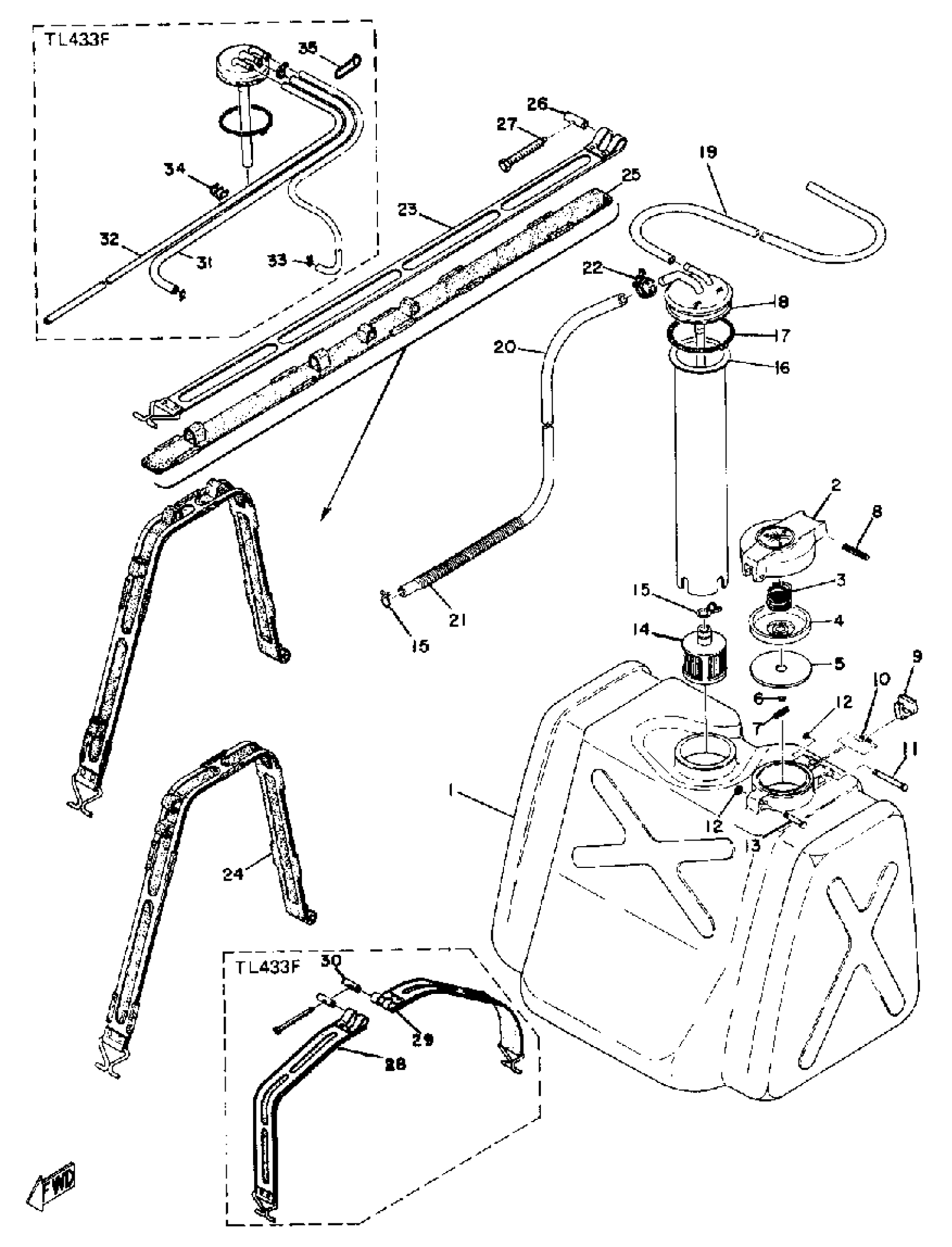

Yamaha TL433F 1974 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

865-24111-00-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

GASKET, CAP

256-24612-00-00

Unavailable

4

DISK,CAP

813-24613-01-00

$20.99

5

GASKET, CAP

256-24612-00-00

Unavailable

6

O-RING (256)

93210-04122-00

$8.49

7

PIN, SPRING

91690-30016-00

Unavailable

8

PIN, SPRING

91609-25032-00

$2.49

9

HOOK

83M-24628-00-00

$24.99

10

SPRING, TORSION (813-24637-00)

90508-08003-00

Unavailable

11

PIN (813)

90249-03017-00

$7.49

12

CIRCLIP (604)

93430-02001-00

$8.49

13

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

14

FILTER ASSY

8H5-24560-00-00

Unavailable

15

CLIP (8J7)

90467-11009-00

$10.49

16

PIPE, SUCTION 2

865-24336-00-00

Unavailable

17

SPRING, TENSION (8R4)

90506-06261-00

Unavailable

18

PIPE, SUCTION 1

(865-24335-00-00)

Unavailable

19

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

Unavailable

20

HOSE

90446-11040-00

Unavailable

21

SPRING, COMPRESSION (3LD4)

90501-084G9-00

Unavailable

22

CLIP(3BM)

90467-10135-00

Unavailable

23

BAND, TNK FITTING 1

838-24173-00-00

Unavailable

24

DAMPER, LOCATING 3

(838-24183-00-00)

Unavailable

25

DAMPER, LOCATING 4

(838-24184-00-00)

Unavailable

26

CLAMP

806-24135-00-00

Unavailable

27

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

Unavailable

28

BAND, TNK FITTING 1

865-24173-00-00

Unavailable

29

BAND, TNK FITTING 2

(865-24199-00-00)

Unavailable

30

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

Unavailable

31

HOSE

90446-11326-00

Unavailable

32

HOSE

90446-09057-00

Unavailable

33

CLAMP, HOSE

90460-09001-00

Unavailable

34

CLIP (867)

90468-15020-00

Unavailable

35

CLAMP

(90465-11025-00)

Unavailable
