Description

Price

1

COWL, ENGINE

(841-77411-00-00)

Unavailable

2

DAMPER 1

(811-77461-00-00)

Unavailable

3

WASHER, SPRING

92907-06100-00

$4.25

3

BOLT, HEXAGON

97017-06016-00

$8.49

4

WASHER, PLATE (4L0)

90201-062A8-00

$8.49

5

WASHER, SPRING

92907-06100-00

$4.25

5

BOLT, HEXAGON

97017-06020-00

$4.06

6

WASHER, PLATE 8221447500

90201-06057-00

$5.60

7

LID, ENGINE COWL

(841-77425-00-00)

Unavailable

8

KNOB, LATCH

841-77491-00-00

Unavailable

9

SPRING, TORSION

90508-08006-00

Unavailable

10

PIN

90243-04004-00

Unavailable

11

HINGE 1

841-77475-00-00

Unavailable

12

RIVET, BLIND

(90267-40023-00)

Unavailable

13

HINGE 2

(841-77476-00-00)

Unavailable

14

EMBLEM 1

(861-77451-00-00)

Unavailable

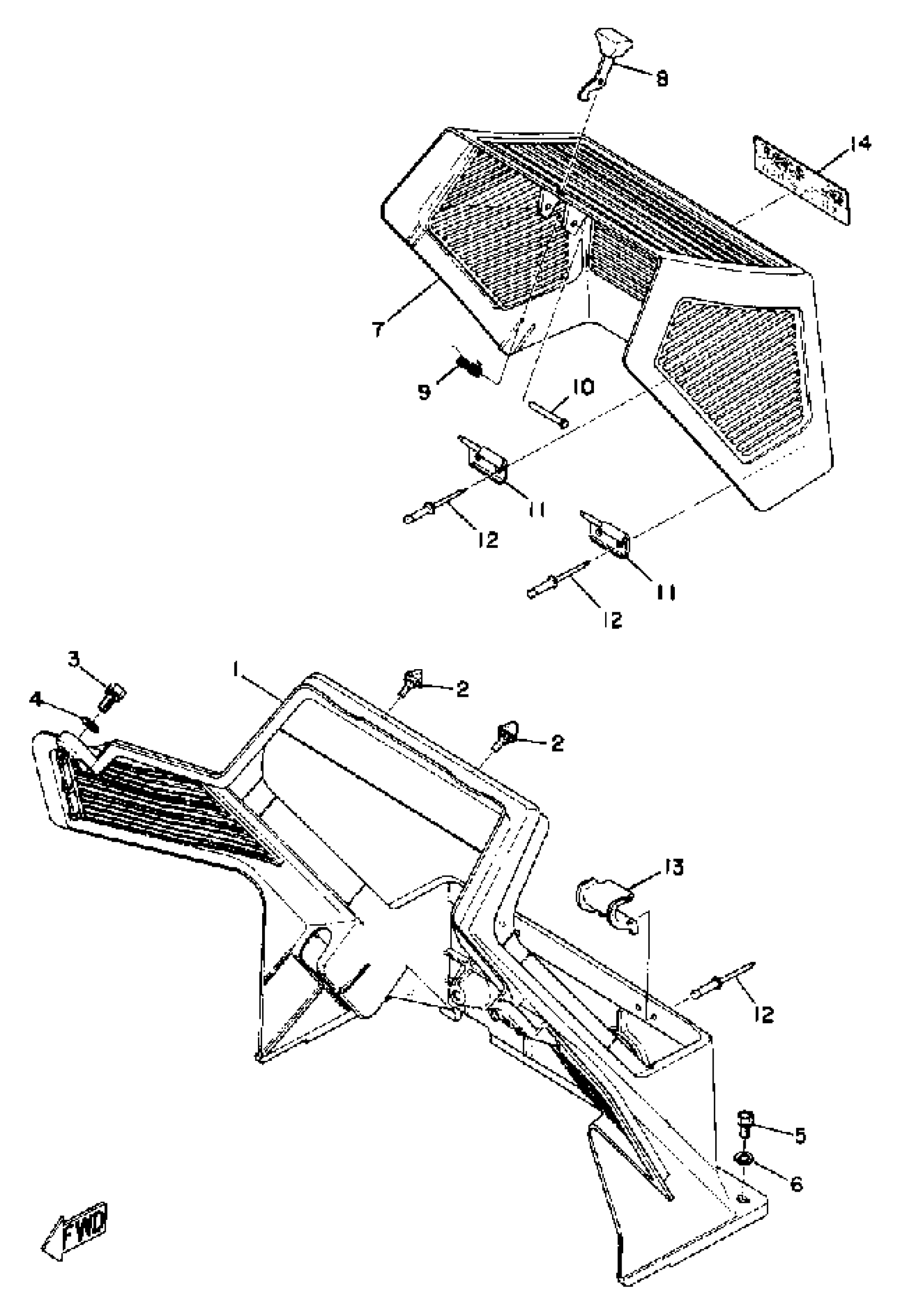

Yamaha TL433F 1974 ENGINE COWL Diagram

COWL, ENGINE

DAMPER 1

WASHER, SPRING

BOLT, HEXAGON

WASHER, PLATE (4L0)

WASHER, SPRING

BOLT, HEXAGON

WASHER, PLATE 8221447500

LID, ENGINE COWL

KNOB, LATCH

SPRING, TORSION

PIN

HINGE 1

RIVET, BLIND

HINGE 2

EMBLEM 1
