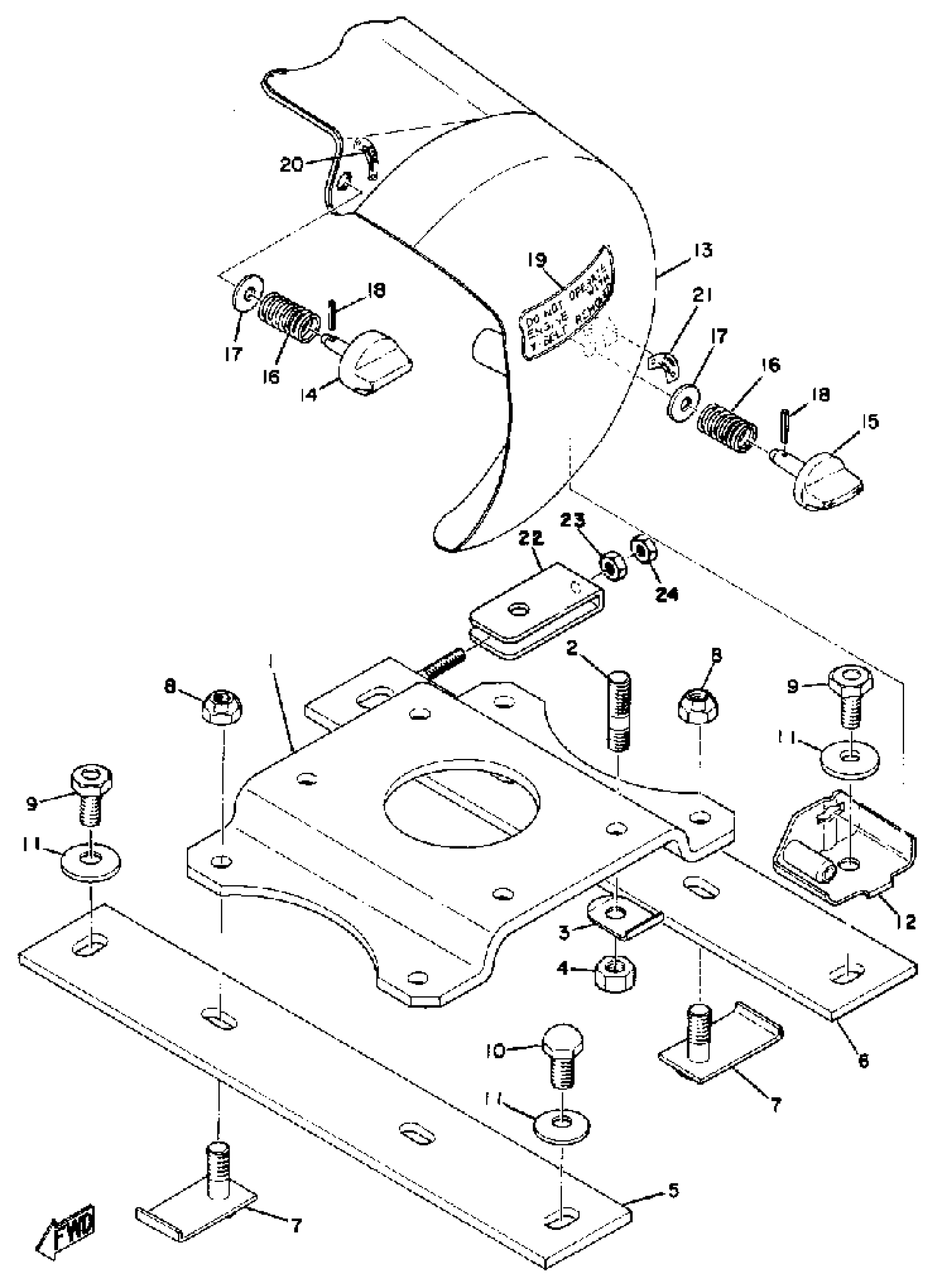

Yamaha TL433F 1974 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

(838-21411-01-00)

Unavailable

2

BOLT, STUD

(90116-10084-00)

Unavailable

3

WASHER, LOCK

(90215-10076-00)

Unavailable

4

NUT(3BM)

95314-10600-00

$2.39

5

BRACKET, ENGINE 2

(841-21419-00-00)

Unavailable

6

BRACKET, ENGINE 2

(874-21419-00-00)

Unavailable

7

BOLT, ENG MNTNG 2

(829-21482-00-00)

Unavailable

8

NUT, SELF-LOCKING

90185-10030-00

Unavailable

9

BOLT, DOME HEAD

(90106-10015-00)

Unavailable

10

BOLT

(90101-10057-00)

Unavailable

11

WASHER, CONICAL SPR

90208-10013-00

Unavailable

12

BRACKET 1

844-77315-00-00

Unavailable

13

GUARD, DRIVE

(841-77311-00-00)

Unavailable

14

KNOB

(829-77324-00-00)

Unavailable

15

KNOB

(853-77324-00-00)

Unavailable

16

SPRING 1

806-77325-00-00

Unavailable

17

WASHER, PLATE

90201-08104-00

Unavailable

18

PIN SPRING(664)

91690-40018-00

Unavailable

19

EMBLEM 10

(829-77365-00-00)

Unavailable

20

EMBLEM 11

(829-77366-00-00)

Unavailable

21

EMBLEM 12

(829-77367-00-00)

Unavailable

22

PLATE, ENGINE ADJUSTING

(834-21475-00-00)

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

NUT(650)

95380-06700-00

Unavailable
