ELECTRIC STARTER UNIT

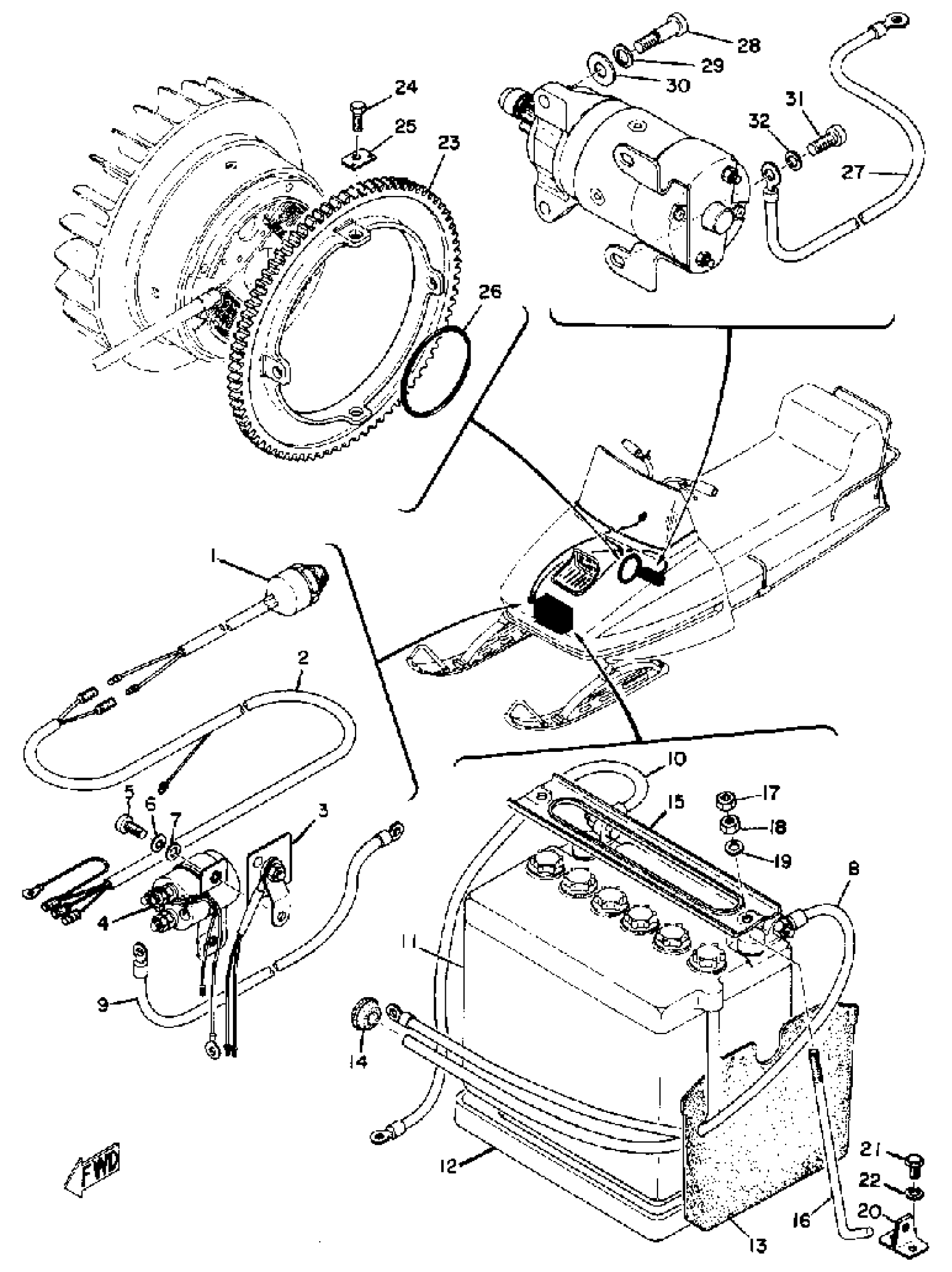

Yamaha TL433F 1974 ELECTRIC STARTER UNIT Diagram
#
1
STARTER SWITCH ASSEMBLY
(811-83970-00-00)
Unavailable
2
WIRE, LEAD 2
(842-82127-00-00)
Unavailable
3
RECTIFIER ASSEMBLY
(812-81970-41-00)
Unavailable
4
STARTER SWITCH ASSEMBLY
(842-81940-20-00)
Unavailable
5
SCREW, PAN
98507-06014-00
$8.49
6
WASHER, SPRING
92995-06100-00
Unavailable
7
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
8
ELECT.STARTER KIT (842-81800-20)
807-81000-00-00
Unavailable
9
WIRE, LEAD 3
(842-82149-00-00)
Unavailable
10
WIRE, MINUS LEAD
822-82116-00-00
Unavailable
11
SMB BATTERY B68-12
(807-82110-80-00)
Unavailable
12
SEAT, BATTERY
807-82122-00-00
Unavailable
13
SEAL, BATTERY
822-82118-00-00
Unavailable
14
GROMMET 152845180000
90480-12013-00
$8.49
15
PLATE, BATT FITTING
(822-82136-00-00)
Unavailable
16
SCREW(3JM)
90149-06306-00
Unavailable
17
NUT(650)
95380-06700-00
Unavailable
18
NUT, HEXAGON
95380-06600-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
BRACKET, BATTERY
(843-82128-00-00)
Unavailable
21
BOLT, HEXAGON
97013-05010-00
Unavailable
22
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
23
GEAR, RING
(842-81891-00-00)
Unavailable
24
BOLT, DOME HEAD
(90106-08004-00)
Unavailable
25
WASHER, LOCK
(90215-08071-00)
Unavailable
26
O-RING
(93210-61117-00)
Unavailable
27
WIRE, LEAD
(842-82117-00-00)
Unavailable
28
SCREW, SPEC''L SHAPE
90149-08056-00
Unavailable
29
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
30
WASHER, PLATE
(90201-09116-00)
Unavailable
31
SCREW PAN HEAD
98580-08020-00
Unavailable
32
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
