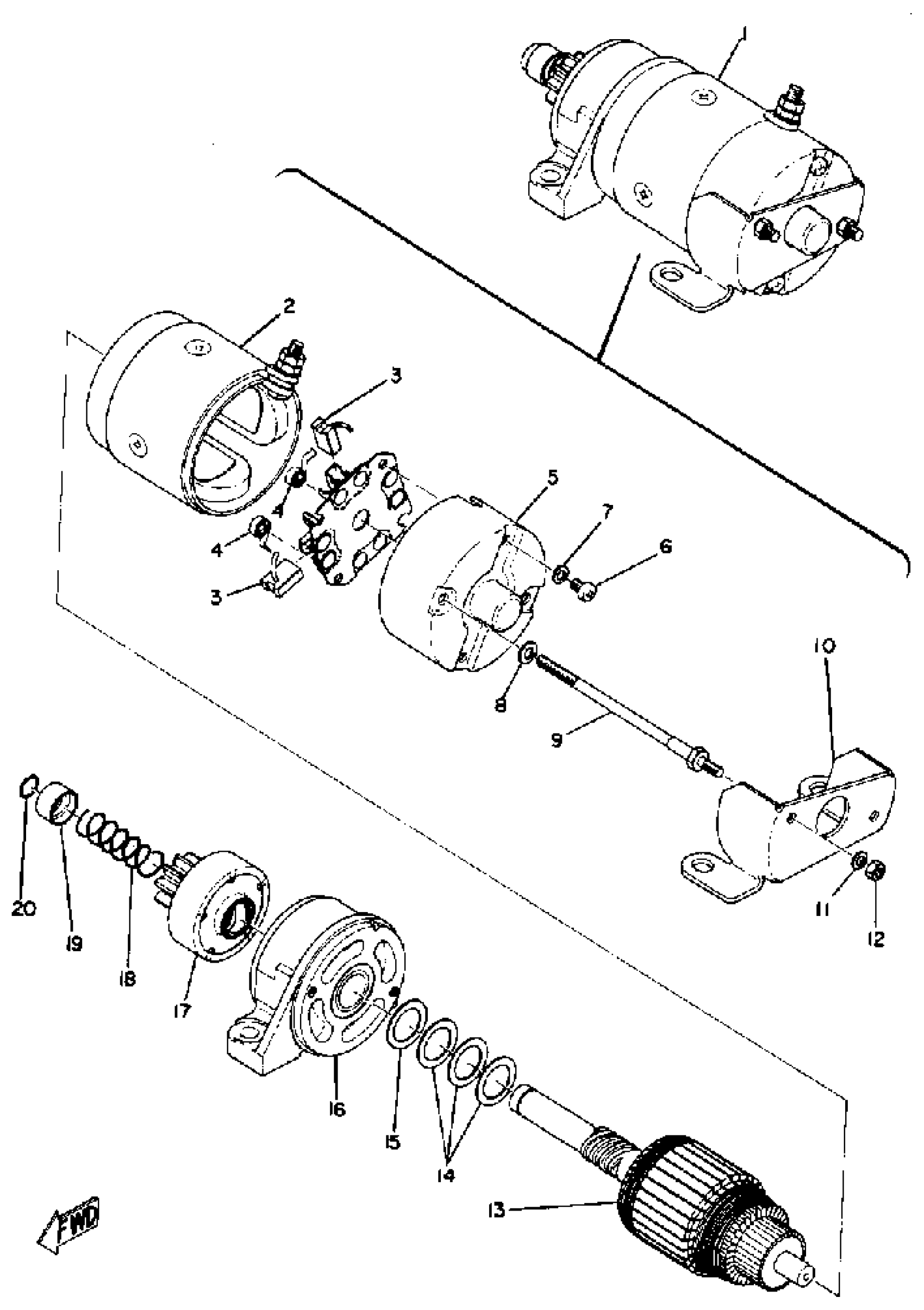

Yamaha TL433F 1974 ELECTRIC MOTOR Diagram

#

Description
Price

1

ELECT.STARTER KIT (842-81800-20)

807-81000-00-00

Unavailable

2

STATOR ASSEMBLY

(842-81810-20-00)

Unavailable

3

BRUSH 1

(842-81811-20-00)

Unavailable

4

SPRING, BRUSH

(842-81813-20-00)

Unavailable

5

REAR BRACKET ASSEMBLY

(842-81820-20-00)

Unavailable

6

SCREW, BRUSH HOLDER

(842-81848-20-00)

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BOLT

(842-81826-20-00)

Unavailable

10

BRACKET, STRTG MTR

(842-81822-20-00)

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

NUT, HEXAGON (663)

95380-05600-00

$8.49

13

ARMATURE ASSEMBLY

(842-81850-20-00)

Unavailable

14

WASHER 1

(842-81843-20-00)

Unavailable

15

WASHER 2

(842-81824-20-00)

Unavailable

16

FRONT BRACKET ASSEMBLY

(842-81830-20-00)

Unavailable

17

CLUTCH, OVER RUN

(842-81832-20-00)

Unavailable

18

. SPRING, LEVER

842-81836-20-00

Unavailable

19

RING, STOP

(842-81833-20-00)

Unavailable

20

RING

(842-81834-20-00)

Unavailable
