Description

Price

1

CRANKCASE ASSEMBLY

838-15100-01-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, HEXAGON

97013-08050-00

Unavailable

5

BOLT (663)

97013-08060-00

$4.41

6

BOLT(6TC)

97027-08070-00

Unavailable

7

BOLT (248-11361-00)

90116-08064-00

$7.49

8

GASKET, CYLINDER

857-11351-09-00

$4.42

9

CYLINDER 1

(838-11311-00-00)

Unavailable

10

CRANKSHAFT ASSEMBLY

838-11400-00-00

Unavailable

11

GASKET, CYL HEAD 1

818-11181-09-00

Unavailable

12

HEAD, CYLINDER 1

(838-11111-00-00)

Unavailable

13

HEAD, CYLINDER 2

(838-11121-00-00)

Unavailable

14

NUT, SPEC''L SHAPE

90179-08090-00

Unavailable

15

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

16

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

GASKET 838153840000

90430-06016-00

Unavailable

19

JOINT, BREATHER

J38-11116-00-00

Unavailable

20

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable

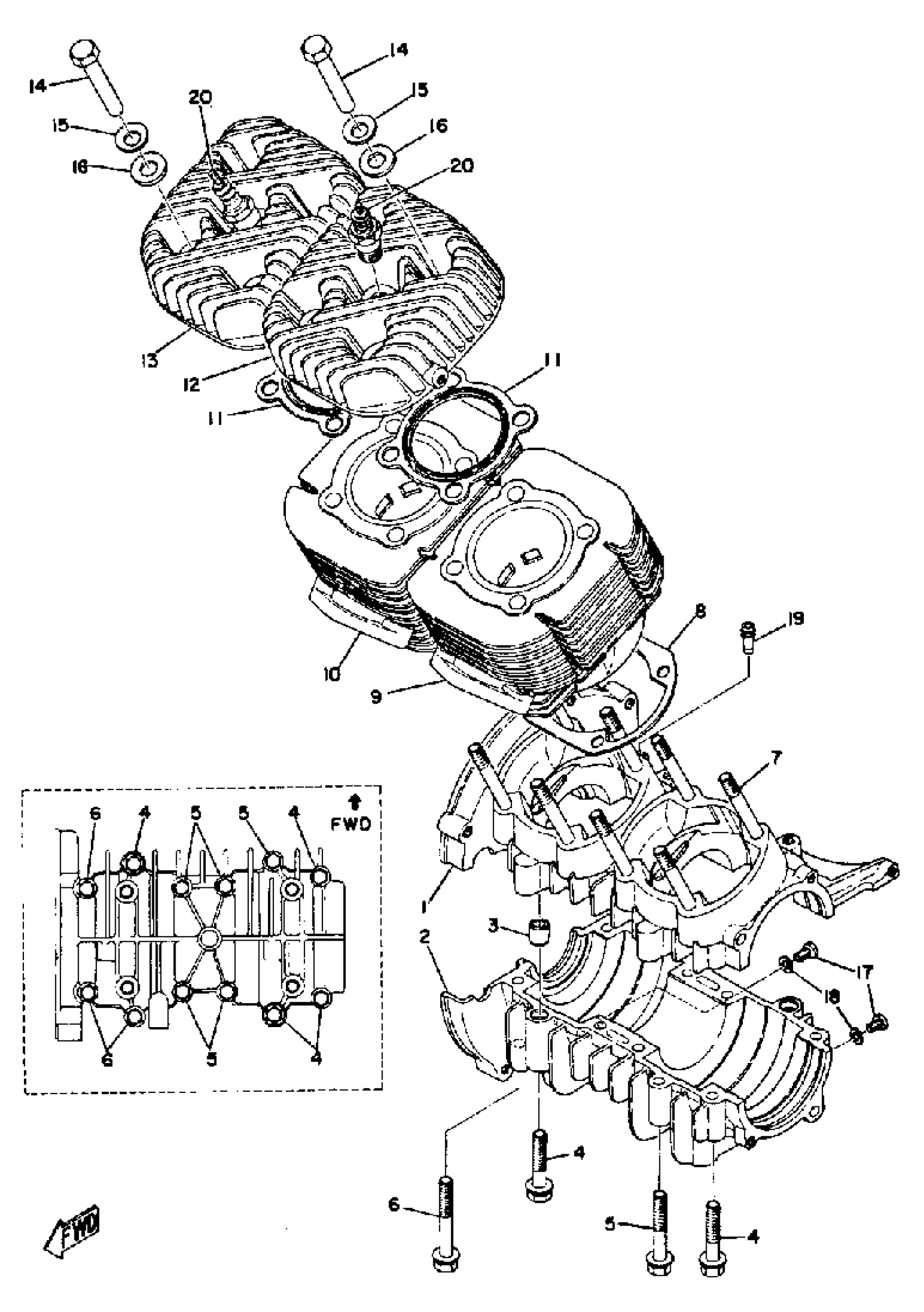

Yamaha TL433F 1974 CRANKCASE - CYLINDER Diagram

CRANKCASE ASSEMBLY

PIN, DOWEL

BOLT, HEXAGON

BOLT (663)

BOLT(6TC)

BOLT (248-11361-00)

GASKET, CYLINDER

CYLINDER 1

CRANKSHAFT ASSEMBLY

GASKET, CYL HEAD 1

HEAD, CYLINDER 1

HEAD, CYLINDER 2

NUT, SPEC''L SHAPE

WASHER, CONICAL SPRING 12,2 X

YBS66-12 WASHER,PLAIN

SCREW PAN HEAD

GASKET 838153840000

JOINT, BREATHER

B7HS NGK 4PK
