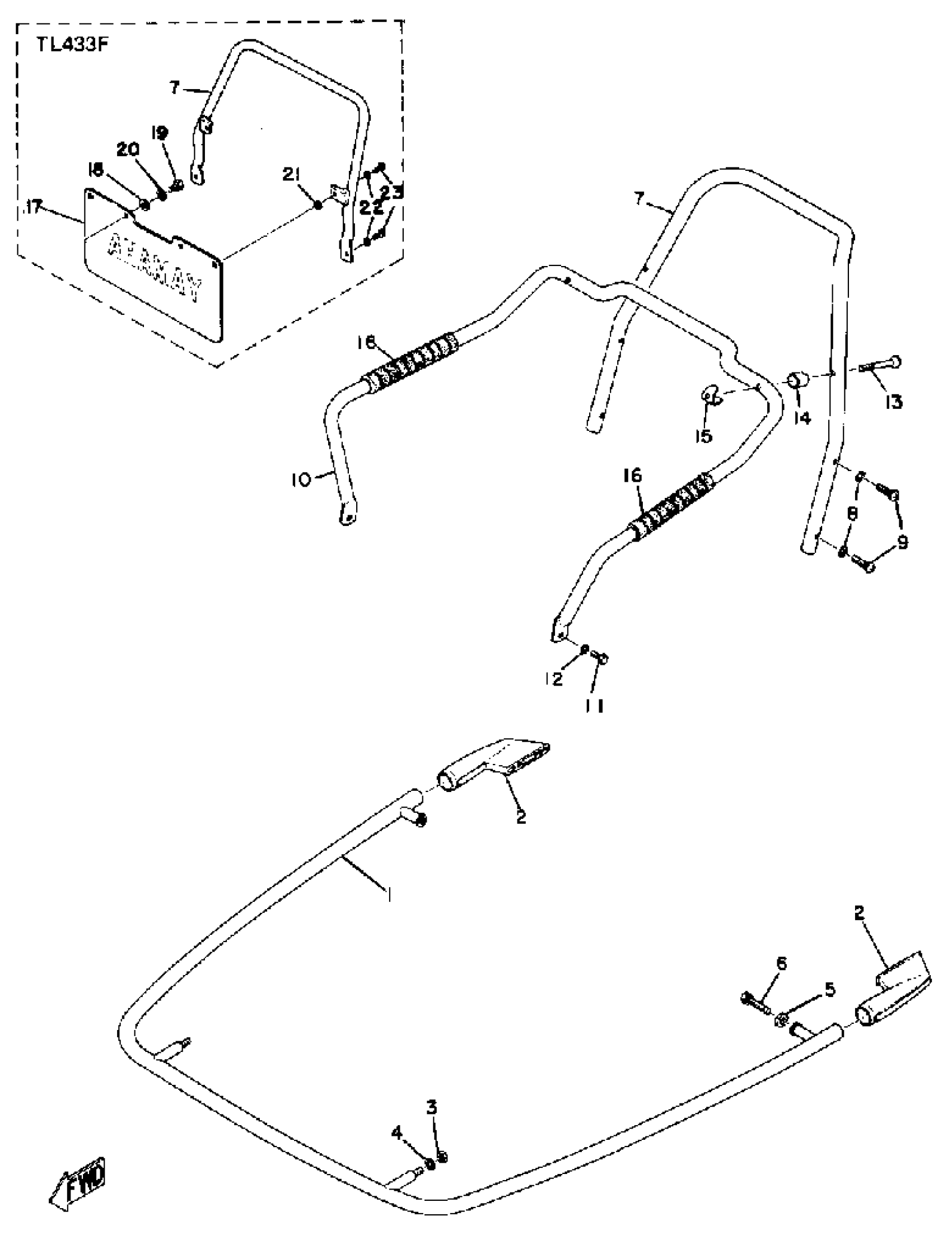

Yamaha TL433F 1974 BUMPER Diagram

#

Description
Price

1

FRONT BUMPER

841-77510-00-00

Unavailable

2

END, BUMPER

838-77523-00-00

Unavailable

3

NUT, SPECIAL SHAPE

90179-08288-00

Unavailable

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

WASHER, PLATE

(90201-08456-00)

Unavailable

6

WASHER(JN5)

92907-08100-00

$8.49

6

BOLT (8K4)

90101-08499-00

Unavailable

7

BUMPER, REAR 1

(865-77541-00-00)

Unavailable

8

WASHER

92990-06500-00

Unavailable

9

SCREW, FLAT HEAD

98780-06530-00

$5.60

10

GRIP, ASSIST 1

841-77571-00-00

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

SCREW, SPEC''L SHAPE

90149-06054-00

Unavailable

14

BUSH, RUBBER 1

(806-77515-00-00)

Unavailable

15

NUT, SPECIAL

806-77573-00-00

Unavailable

16

COVER, ASSIST GRIP

838-77575-00-00

Unavailable

17

FLAP

865-77595-00-00

Unavailable

18

WASHER, PLATE (J10)

90201-06697-00

Unavailable

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

COLLAR

90387-06106-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

BOLT, HEXAGON

97017-06020-00

Unavailable
