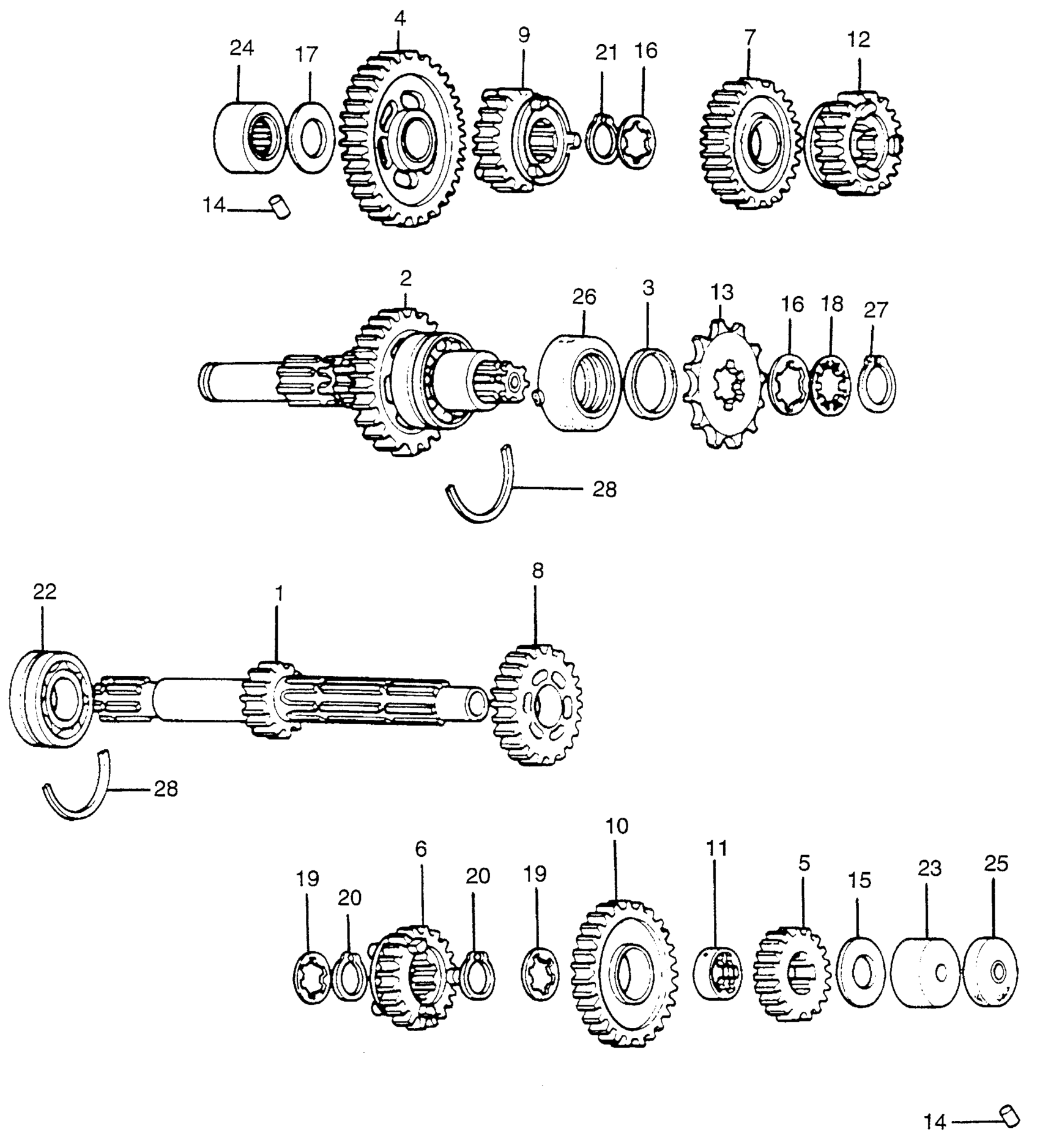

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-376-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-376-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 2001822 This part replaces 23220-376-010.

23220-376-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 2001822

23220-376-020

Unavailable

3

COLLAR, COUNTERSHAFT (NOT AVAILABLE)

23223-376-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (42T) (NOT AVAILABLE)

23410-376-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T)

23421-376-000

Unavailable

6

GEAR, MAINSHAFT THIRD (32T) (NOT AVAILABLE)

23441-376-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (35T) (NOT AVAILABLE)

23451-376-000

Unavailable

8

GEAR, MAINSHAFT FOURTH (28T) (NOT AVAILABLE)

23461-329-010

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (29T)

23471-376-010

Unavailable

10

GEAR, MAINSHAFT TOP (32T)

23481-376-000

Unavailable

11

BUSH, SPLINE (22MM) (NOT AVAILABLE)

23485-329-000

Unavailable

12

GEAR, COUNTERSHAFT TOP (24T)

23491-356-000

Unavailable

13

SPROCKET, DRIVE (14T) (NOT AVAILABLE)

23801-376-000

Unavailable

14

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

15

WASHER, THRUST (17X32) (NOT AVAILABLE)

90411-356-000

Unavailable

16

WASHER, THRUST (25MM) (NOT AVAILABLE)

90451-300-000

Unavailable

17

WASHER, THRUST (20MM)

90458-292-000

$3.54

18

WASHER, LOCK (25MM) (NOT AVAILABLE)

90462-286-000

Unavailable

19

WASHER, SPLINE (22MM) (NOT AVAILABLE)

90463-329-000

Unavailable

20

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

21

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

22

BEARING, BALL (5205HS) (TOYO)

91002-286-008

Unavailable

23

BEARING, NEEDLE (17MM) (TOYO) (NOT AVAILABLE)

91021-356-018

Unavailable

24

BEARING B, NEEDLE (20MM) (KOYO)

91022-312-004

Unavailable

25

OIL SEAL (8X34X8)

91203-292-005

$13.88

26

OIL SEAL (34X52X13.5X15.5)

91205-333-015

Unavailable

27

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49

28

SET-RING (520)

95015-25200

Unavailable
