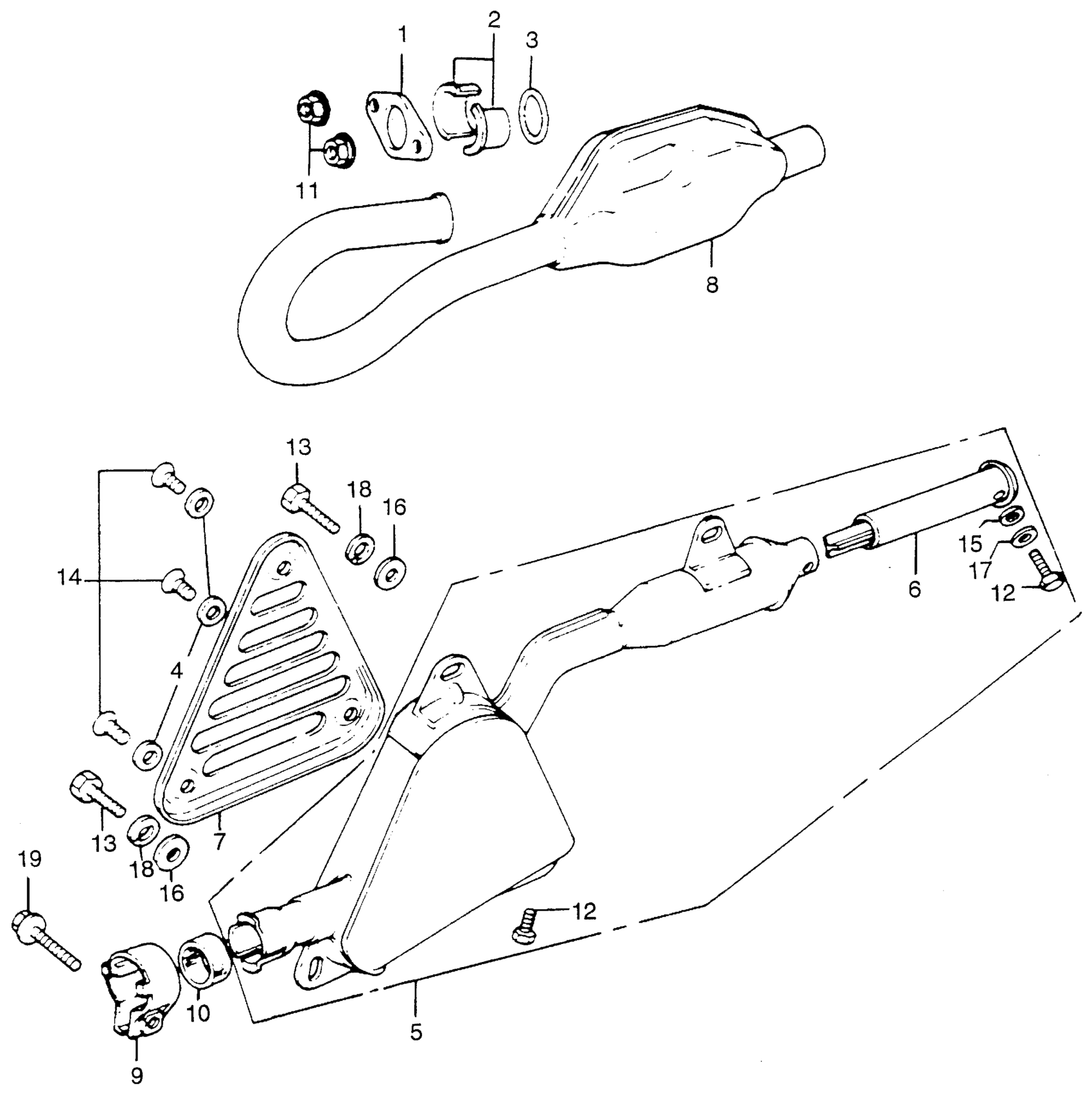

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-376-000

$17.07

2

COLLAR, EX. JOINT

18233-107-000

$5.91

3

GASKET, EX. PIPE

18291-MN5-650

$3.52

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.52

4

GASKET, PROTECTOR

18292-167-890

$1.80

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.80

5

MUFFLER (NOT AVAILABLE) This part replaces 18300-376-003.

18300-376-007

Unavailable

5

MUFFLER (NOT AVAILABLE)

18300-376-007

Unavailable

6

PIPE, DIFFUSER (NOT AVAILABLE)

18311-376-000

Unavailable

7

PROTECTOR, MUFFLER (NOT AVAILABLE)

18315-376-000

Unavailable

8

PIPE, EX. CHAMBER (NOT AVAILABLE) This part replaces 18330-376-003.

18330-376-007

Unavailable

8

PIPE, EX. CHAMBER (NOT AVAILABLE)

18330-376-007

Unavailable

9

BAND, MUFFLER (NOT AVAILABLE) This part replaces 18371-110-300.

18371-110-310

Unavailable

9

BAND, MUFFLER (NOT AVAILABLE)

18371-110-310

Unavailable

10

GASKET, MUFFLER

18391-ML8-000

$8.27

10

GASKET, MUFFLER This part replaces 18391-110-000.

18391-ML8-000

$8.27

11

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$0.86

11

NUT, FLANGE (8MM)

94050-08000

$0.86

12

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.25

12

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

12

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

13

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.48

13

BOLT, HEX. (8X20)

92101-08020-0A

$1.48

14

SCREW, OVAL (6X10) (NOT AVAILABLE)

93700-06010-07

Unavailable

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

15

WASHER, PLAIN (6MM)

94101-06800

Unavailable

16

WASHER, PLAIN (8MM)

94101-08000

$0.75

17

WASHER, SPRING (6MM)

94111-06000

$0.86

18

WASHER, SPRING (8MM)

94111-08000

$0.90

19

BOLT, FLANGE (6X28)

95700-06028-00

$1.65

19

BOLT, FLANGE (6X28)

95701-06028-00

$1.65
