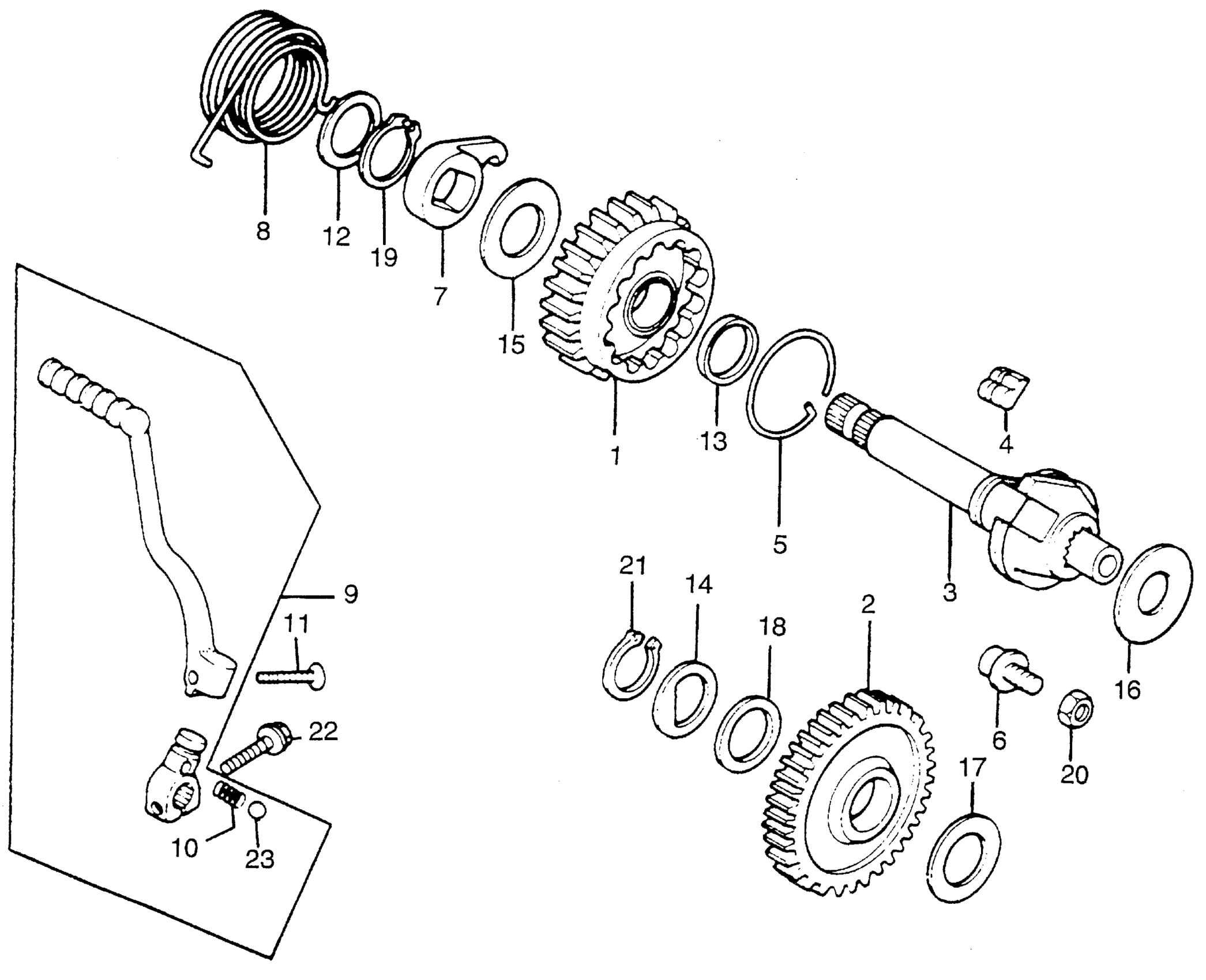

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER

28210-356-020

Unavailable

2

GEAR, KICK STARTER IDLE (NOT AVAILABLE)

28221-356-010

Unavailable

2

GEAR, KICK STARTER IDLE (35T) (NOT AVAILABLE) | Use from Engine SN 2005341

28220-385-000

Unavailable

3

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-376-000

Unavailable

4

PAWL, KICK STARTER (NOT AVAILABLE)

28252-356-000

Unavailable

5

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28253-300-000

Unavailable

6

PIN, KICK STOPPER (NOT AVAILABLE)

28254-356-000

Unavailable

7

RETAINER, KICK STARTER SPRING

28258-329-000

Unavailable

8

SPRING, KICK STARTER

28261-376-000

Unavailable

9

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-376-000

Unavailable

10

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

11

BOLT, KICK ARM

90101-329-000

$3.67

12

WASHER (18MM)

90451-357-000

Unavailable

13

WASHER A, THRUST (22MM)

90452-504-010

Unavailable

14

WASHER, THRUST (20MM) (NOT AVAILABLE)

90453-329-000

Unavailable

15

WASHER, THRUST (22.5MM) (NOT AVAILABLE) This part replaces 90453-704-000.

90453-426-000

Unavailable

16

WASHER (16MM) (NOT AVAILABLE)

90454-329-000

Unavailable

17

WASHER, THRUST (20MM)

90458-292-000

$3.54

18

WASHER, THRUST (20MM) (NOT AVAILABLE)

90458-329-010

Unavailable

19

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

20

NUT, HEX. (10MM)

94002-10000-0S

$4.06

21

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

22

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

22

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

23

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
