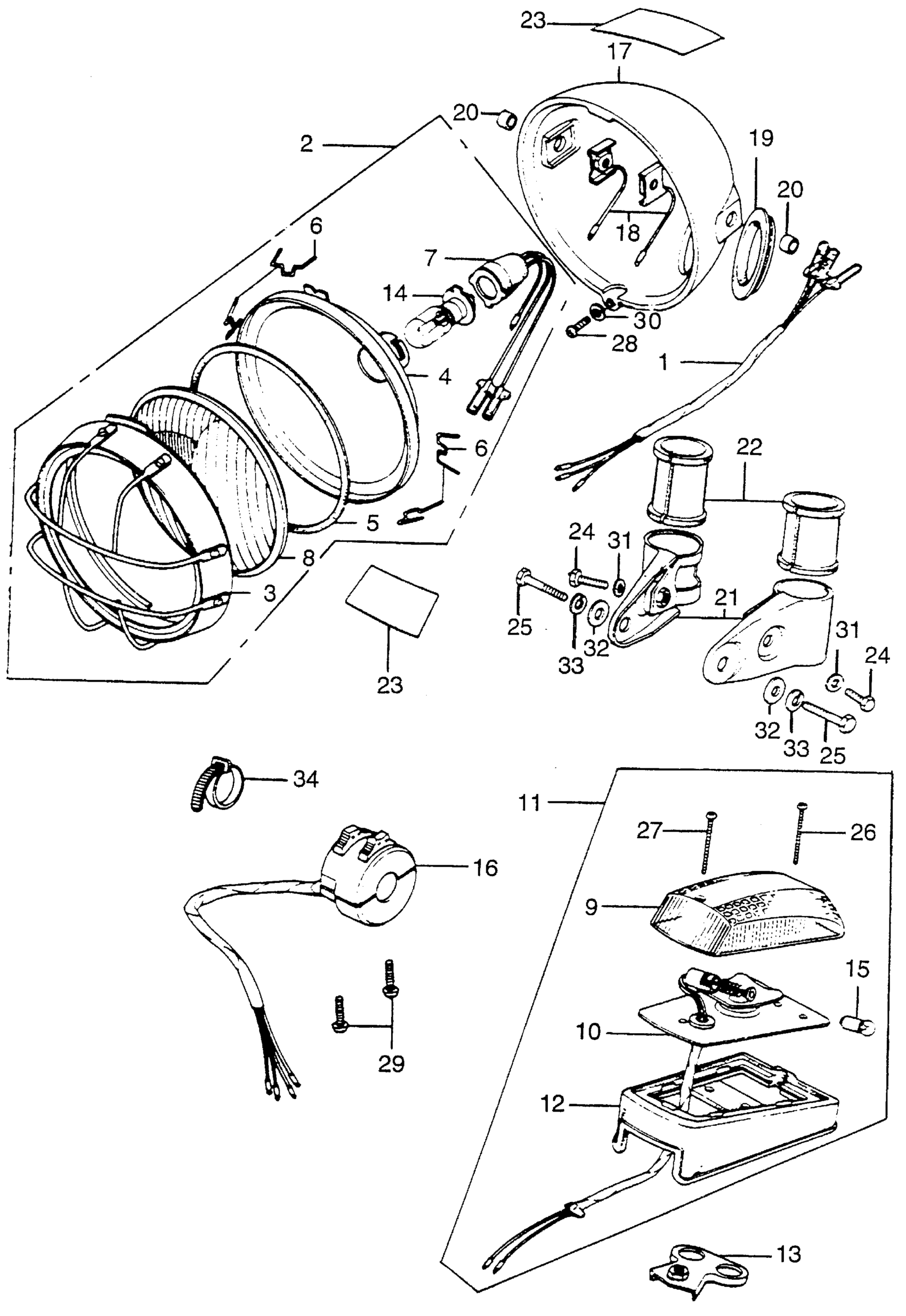

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 HEADLIGHT + TAILLIGHT Diagram

#

Description
Price

1

WIRE HARNESS B (NOT AVAILABLE)

32105-376-810

Unavailable

2

HEADLIGHT ASSY. (6V25/25W) (NOT AVAILABLE)

33100-355-970

Unavailable

3

RIM, HEADLIGHT (NOT AVAILABLE)

33101-355-970

Unavailable

4

REFLECTOR, HEADLIGHT

33104-028-003

Unavailable

5

GASKET, HEADLIGHT LENS

33105-028-003

Unavailable

6

SPRING, UNIT HOLDER (STANLEY)

33108-028-013

$2.34

7

SOCKET, HEADLIGHT (NOT AVAILABLE)

33110-121-003

Unavailable

8

LENS, HEADLIGHT (STANLEY)

33121-065-003

Unavailable

9

LENS, TAILLIGHT

33141-373-670

Unavailable

10

BASE, TAILLIGHT (NOT AVAILABLE)

33142-373-670

Unavailable

11

TAILLIGHT UNIT (NOT AVAILABLE) This part replaces 33701-373-671.

33701-373-771

Unavailable

12

BODY, TAILLIGHT (NOT AVAILABLE)

33702-373-670

Unavailable

13

STAY, TAILLIGHT (NOT AVAILABLE)

33720-376-810

Unavailable

14

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-030-003

$9.57

14

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-087-640

$9.57

15

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

16

SWITCH ASSY., LIGHTING (NOT AVAILABLE)

35300-373-671

Unavailable

17

CASE, HEADLIGHT *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 61301-115-000MA.

61301-115-010ZP

Unavailable

17

CASE, HEADLIGHT *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

61301-115-010ZP

Unavailable

18

NUT, HEADLIGHT CASE

61303-105-000

$3.81

19

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61304-115-000

Unavailable

20

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

21

STAY, HEADLIGHT (NOT AVAILABLE)

61311-376-810

Unavailable

22

RUBBER, HEADLIGHT STAY (NOT AVAILABLE)

61313-373-671

Unavailable

23

LABEL, CAUTION (NOT AVAILABLE)

87560-373-670

Unavailable

24

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

25

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

26

SCREW, PAN (3X18) (SOURCE: VINTAGE PARTS INC.)

93500-03018-3B

Unavailable

27

SCREW, PAN (3X25) (SOURCE: VINTAGE PARTS INC.)

93500-03025-3B

Unavailable

28

SCREW, PAN (5X12)

93500-05012-0A

$1.49

29

SCREW, PAN (5X16)

93500-05016-0A

$1.49

30

WASHER, PLAIN (5MM)

94101-05000

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, SPRING (8MM)

94111-08000

$1.49

34

BAND B3, CABLE HARNESS

95014-62300

$2.25
