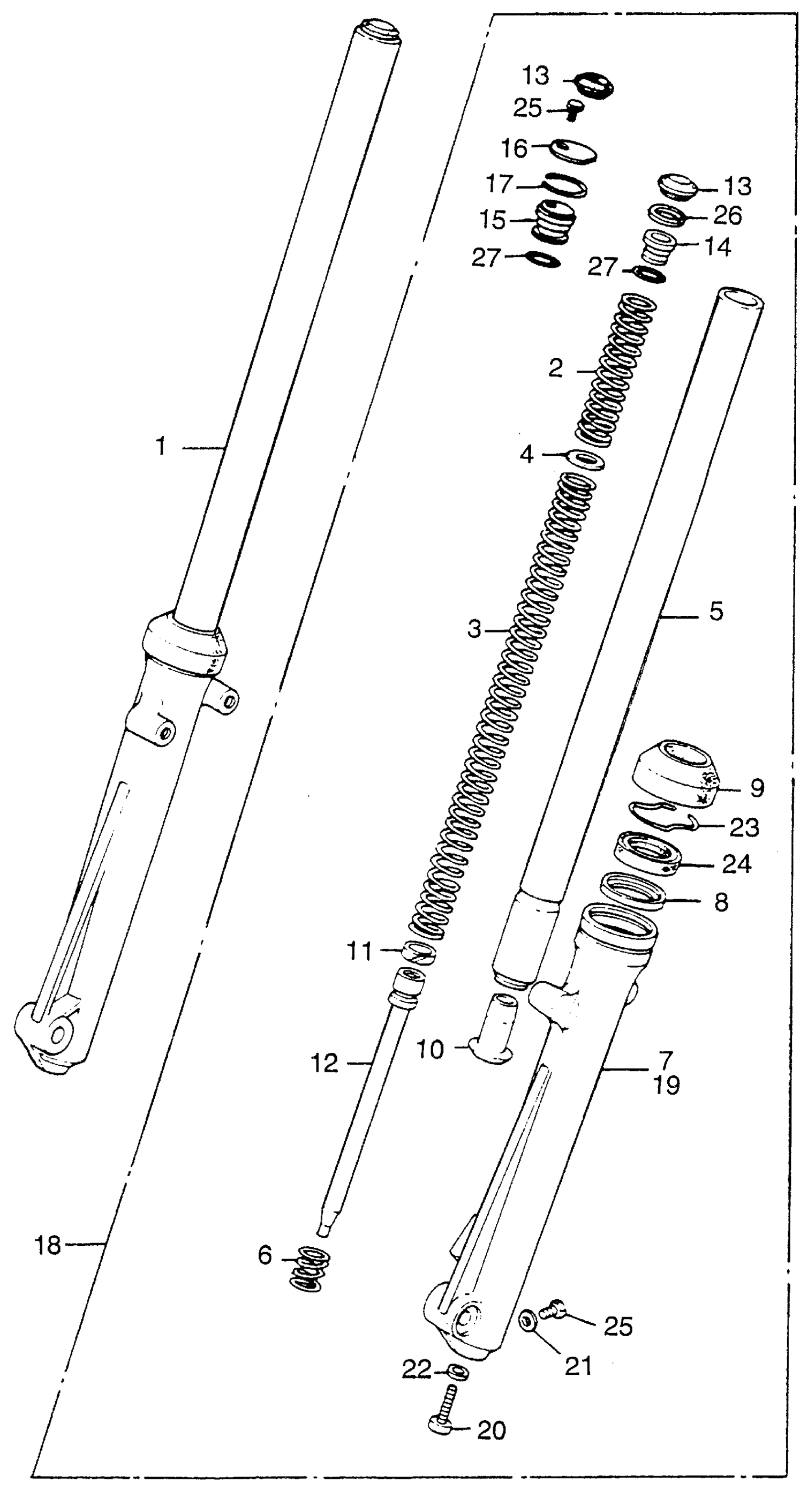

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-376-013

Unavailable

2

SPRING A, FR. FORK (NOT AVAILABLE)

51401-355-000

Unavailable

3

SPRING B, FR. FORK (NOT AVAILABLE)

51402-376-000

Unavailable

4

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-362-010

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-376-013

Unavailable

6

SPRING, FR. FORK REBOUND

51412-369-000

$4.94

7

CASE, R. FORK (NOT AVAILABLE)

51420-376-003

Unavailable

8

RING, BACK-UP This part replaces 51422-376-003.

51422-376-305

Unavailable

8

RING, BACK-UP

51422-376-305

Unavailable

9

DUST SEAL, FR. FORK This part replaces 51425-369-000.

91254-413-881

$25.92

9

DUST SEAL, FR. FORK

91254-413-881

$25.92

10

PIECE, OIL LOCK (NOT AVAILABLE)

51432-369-000

Unavailable

11

RING, PISTON This part replaces 51437-369-000.

51437-413-003

$7.96

11

RING, PISTON

51437-413-003

$7.96

12

SEAT (LOWER)

51440-376-003

Unavailable

13

CAP, FORK PIPE (NOT AVAILABLE)

51449-355-013

Unavailable

14

SEAT SET, SPRING (UPPER) (NOT AVAILABLE) | Use from Frame SN 2004921 This part replaces 51454-355-013.

51460-355-305

Unavailable

14

SEAT SET, SPRING (UPPER) (NOT AVAILABLE) | Use from Frame SN 2004921

51460-355-305

Unavailable

18

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-376-013

Unavailable

19

CASE, L. (LOWER) (NOT AVAILABLE)

51520-376-003

Unavailable

20

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

20

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

21

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

23

RING, OIL SEAL STOPPER

90601-369-000

$3.47

24

OIL SEAL (33X46X10.2)

91255-312-003

$16.36

25

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

26

CIRCLIP (INNER) (26MM)

94520-26000

$1.85

27

O-RING (19.4X2.8)

94608-40000

$1.49
