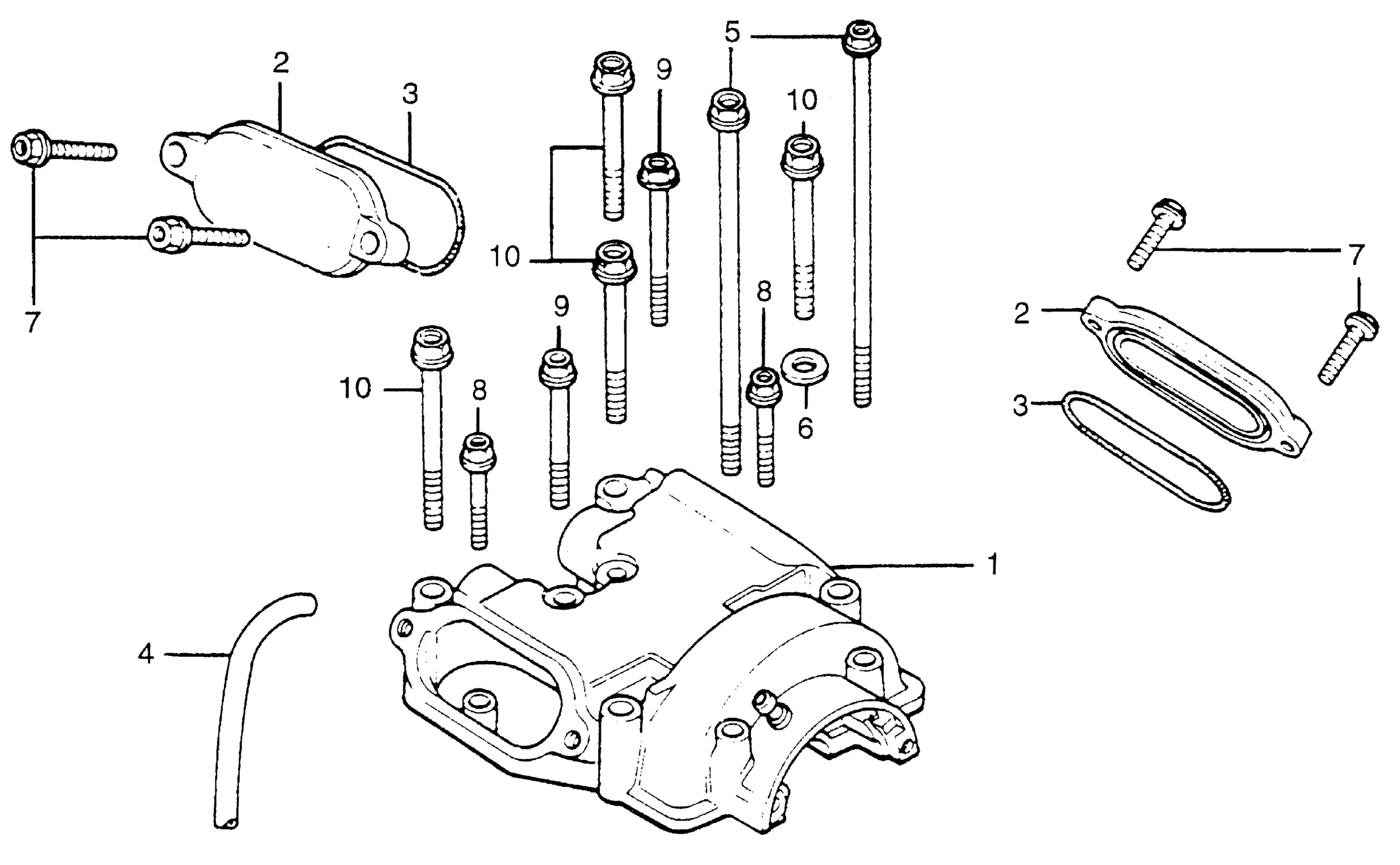

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-376-000

Unavailable

2

COVER, VALVE ADJ. (NOT AVAILABLE)

12351-329-770

Unavailable

3

GASKET, VALVE ADJ. CAP

12392-329-000

Unavailable

4

TUBE, POINT BREATHER (NOT AVAILABLE)

15772-356-000

Unavailable

5

BOLT, FLANGE (6X130) This part replaces 90048-329-000.

95701-06130-00

$3.06

5

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

6

WASHER, SEAL (8MM)

90441-286-000

$1.90

7

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

7

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

8

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

8

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

9

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

9

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

10

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

10

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
