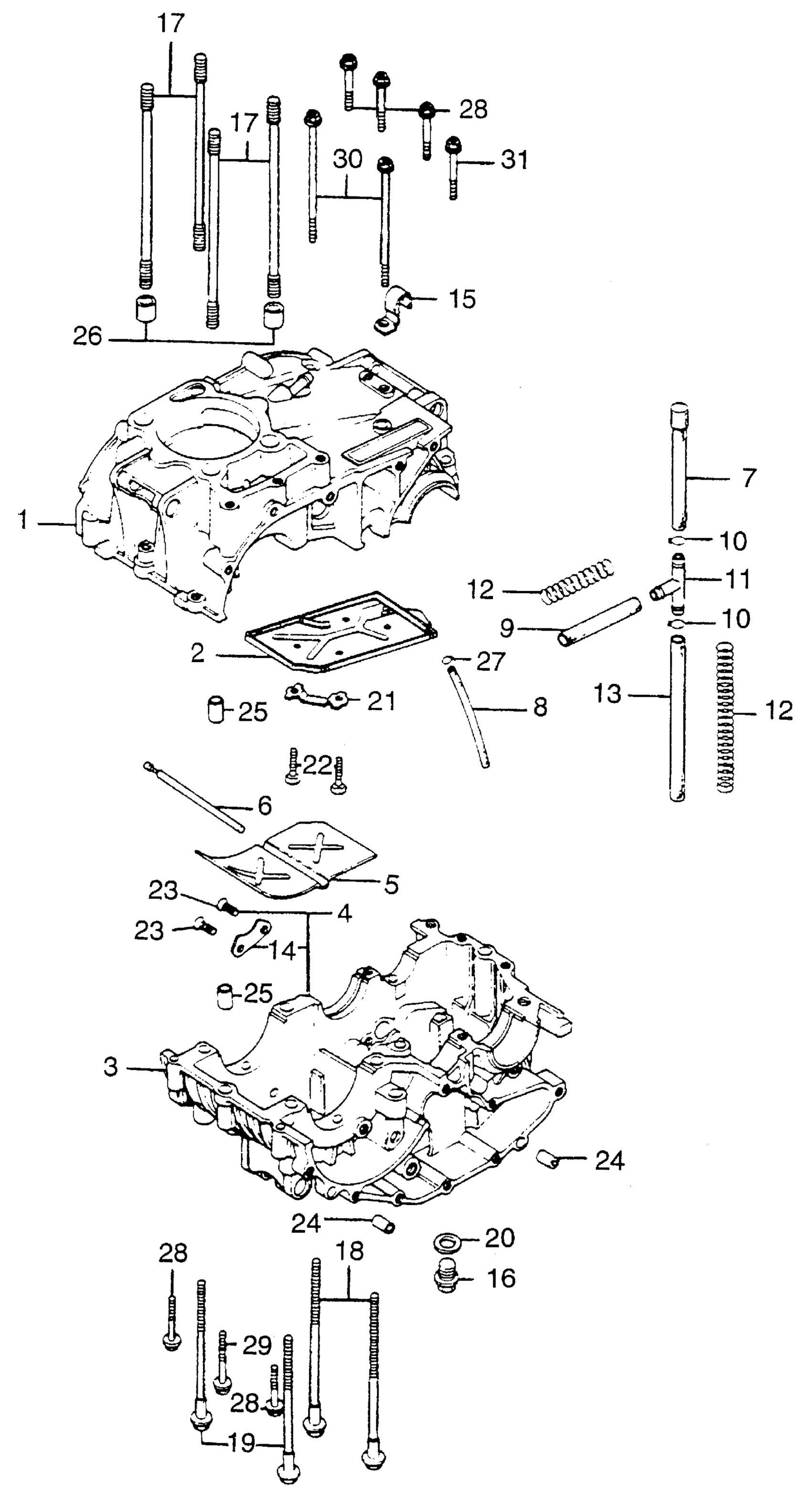

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER)

11100-376-030

Unavailable

2

PLATE, BREATHER (NOT AVAILABLE)

11110-356-000

Unavailable

3

CRANKCASE (LOWER)

11200-376-020

Unavailable

3

CRANKCASE (LOWER) | Use from Engine SN 2001822 to 2005340

11200-376-030

Unavailable

4

CRANKCASE (LOWER) | Use from Engine SN 2005341

11200-376-040

Unavailable

5

SEPARATOR, OIL (NOT AVAILABLE)

11761-356-000

Unavailable

6

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11762-329-000

Unavailable

7

TUBE, OIL DRAIN (NOT AVAILABLE)

15706-376-000

Unavailable

8

TUBE, OIL RETURN (NOT AVAILABLE)

15713-356-000

Unavailable

9

TUBE, CASE BREATHER (NOT AVAILABLE)

15771-376-000

Unavailable

10

CLIP, BREATHER TUBE

15772-292-010

$2.92

11

JOINT, BREATHER (THREE-WAY)

15772-376-000

$19.49

12

PROTECTOR, BREATHER TUBE (NOT AVAILABLE)

15773-356-000

Unavailable

13

TUBE, BREATHER (NOT AVAILABLE)

15773-376-000

Unavailable

15

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

32112-329-000

Unavailable

16

BOLT, DRAIN VALVE

90013-230-000

Unavailable

17

BOLT, CYLINDER STUD (10MM) (NOT AVAILABLE)

90031-329-000

Unavailable

18

BOLT, UBS (8X160) (NOT AVAILABLE)

90044-356-000

Unavailable

19

BOLT, UBS (8X114) (NOT AVAILABLE)

90045-329-000

Unavailable

20

GASKET, DRAIN This part replaces 90407-205-000.

90407-367-690

$4.15

20

GASKET, DRAIN

90407-367-690

$4.15

21

WASHER (6MM) (NOT AVAILABLE)

90484-329-000

Unavailable

22

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

24

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

25

PIN A, DOWEL (10X14)

94301-10140

$2.28

26

PIN, KNOCK (12X16)

94301-12160

$2.27

27

CLIP, TUBE (C11)

95002-70000

$1.56

28

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

28

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

29

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

29

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

30

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

30

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

31

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

31

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
