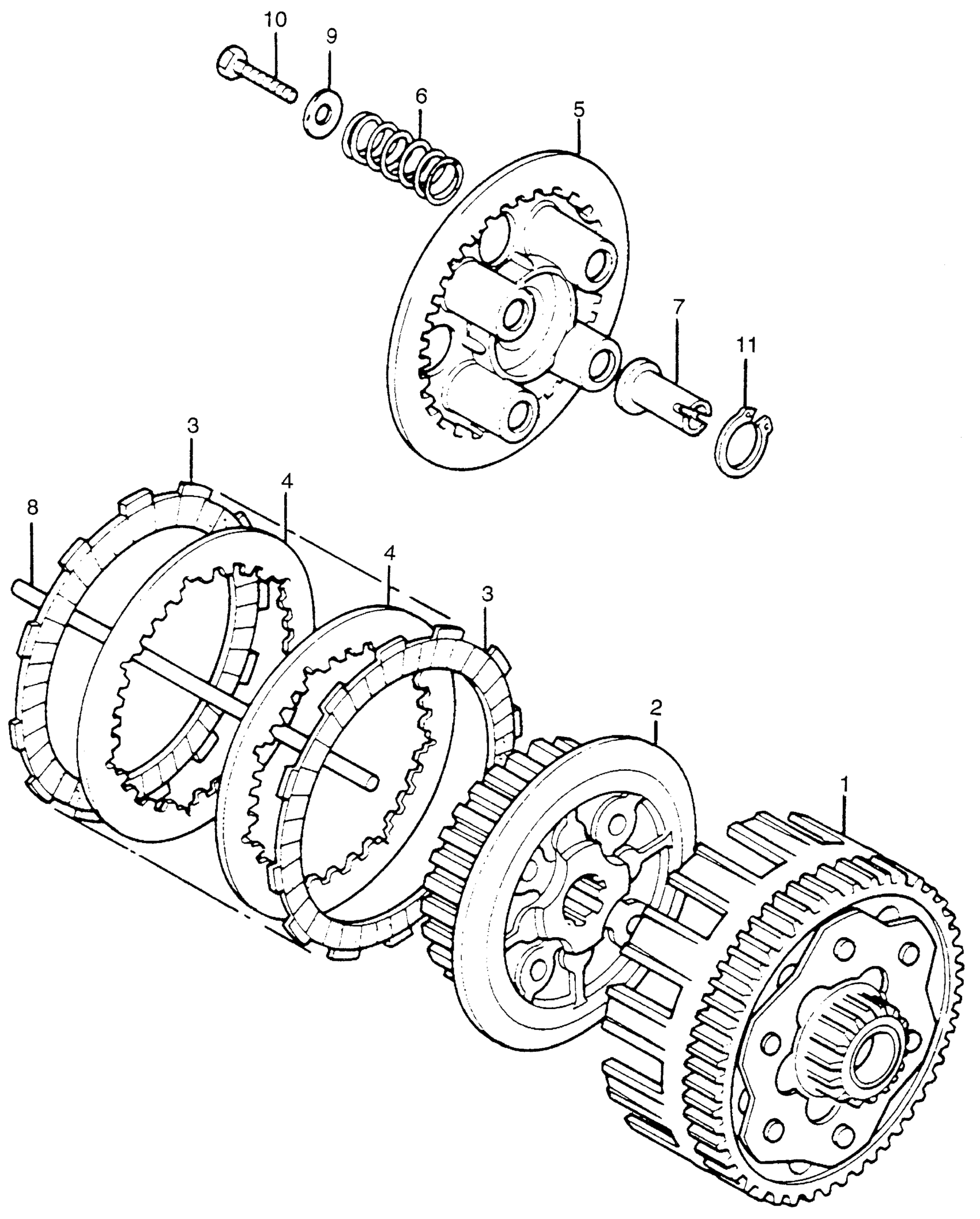

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 CLUTCH Diagram

#

Description

Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-356-000

Unavailable

2

CENTER, CLUTCH (NOT AVAILABLE)

22120-329-010

Unavailable

3

DISK, CLUTCH FRICTION

22201-286-010

$19.81

3

DISK, CLUTCH FRICTION This part replaces 22201-376-000.

22201-286-010

$19.81

4

PLATE B, CLUTCH

22321-329-000

$16.92

5

PLATE, CLUTCH PRESSURE

22350-329-000

Unavailable

6

SPRING, CLUTCH This part replaces 22401-268-000.

95014-75140

$3.06

6

SPRING, CLUTCH

95014-75140

$3.06

7

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-329-000

Unavailable

8

ROD, CLUTCH LIFTER (NOT AVAILABLE) This part replaces 22850-329-000.

22850-329-770

Unavailable

8

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-329-770

Unavailable

9

WASHER (6X19)

90481-259-000

Unavailable

10

BOLT, HEX. (6X20) (NOT AVAILABLE)

92020-06020

Unavailable

11

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49
