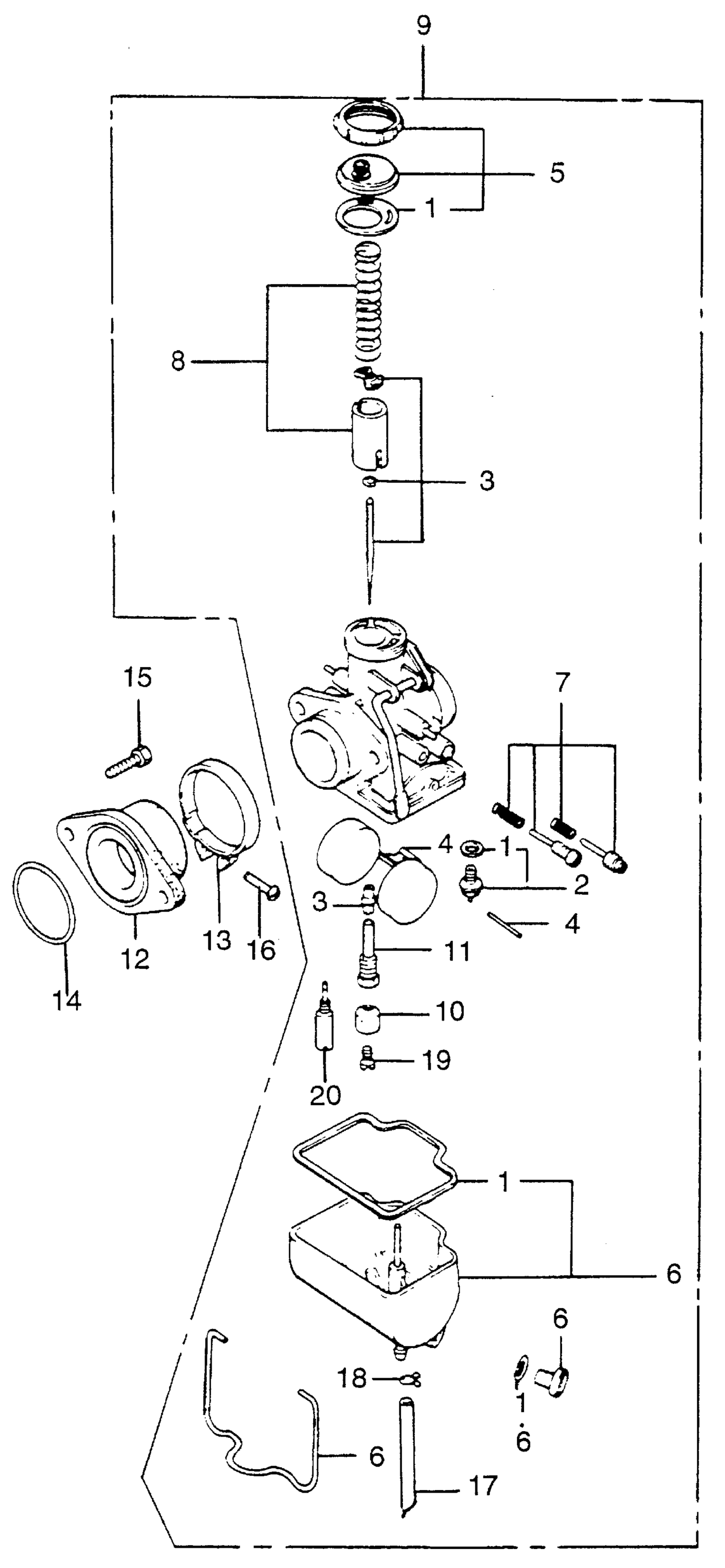

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-107-305

$12.74

1

GASKET SET This part replaces 16010-312-004.

16010-107-305

$12.74

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-376-004

Unavailable

4

FLOAT SET This part replaces 16013-302-670.

16013-312-004

Unavailable

4

FLOAT SET

16013-312-004

Unavailable

4

FLOAT SET This part replaces 16122-268-004.

16013-312-004

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-376-004.

16014-312-004

$22.44

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-376-004

Unavailable

7

SCREW SET (NOT AVAILABLE)

16016-376-004

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-376-004

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-376-004

Unavailable

10

HOLDER, JET This part replaces 16168-365-004.

16168-382-004

Unavailable

10

HOLDER, JET

16168-382-004

Unavailable

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16176-312-004

Unavailable

12

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-376-000

Unavailable

13

BAND, INSULATOR

16223-317-000

$8.82

14

O-RING (38X2.4) (NOT AVAILABLE)

91311-329-000

Unavailable

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

16

SCREW, PAN (4X20)

93500-04020-0A

$1.49

17

BULK HOSE, FUEL (3.5X3000) (3.5X240)

95001-35003-60M

$20.85

18

CLIP, TUBE (B7)

95002-02070

$1.80

19

JET, MAIN (#115)

99114-246-1150

Unavailable

20

JET, SLOW (#38) (NOT AVAILABLE)

99124-300-0380

Unavailable
