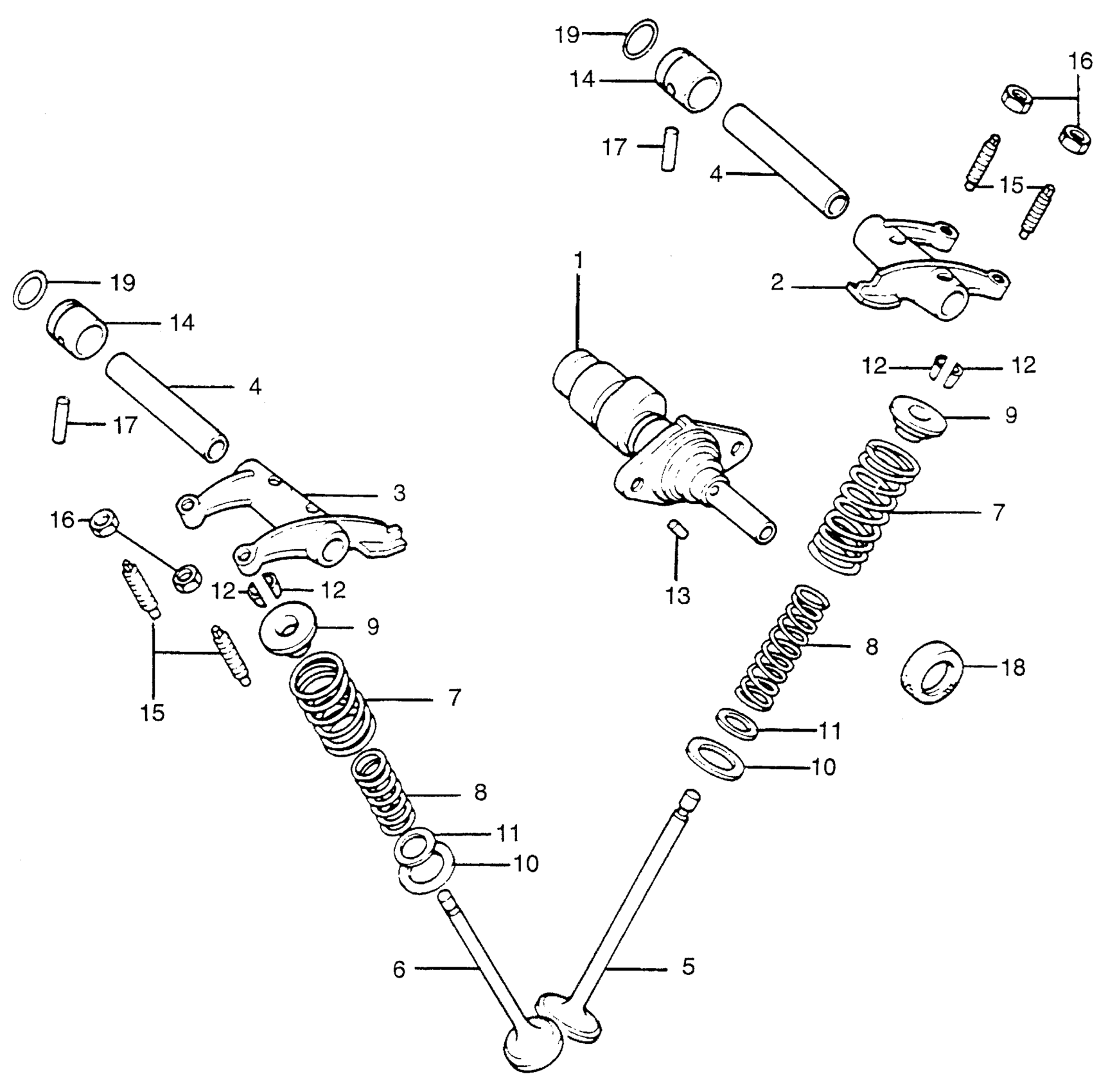

Honda TL250A MOTORCYCLE, JPN, VIN# TL250-1000001 TO TL250-1005276 CAMSHAFT + VALVE Diagram

#

Description
Price

1

CAMSHAFT (NOT AVAILABLE)

14101-329-040

Unavailable

2

ARM, IN. VALVE ROCKER

14431-329-010

Unavailable

3

ARM, EX. VALVE ROCKER

14441-329-000

Unavailable

4

SHAFT, VALVE ROCKER ARM

14451-329-000

Unavailable

5

VALVE, IN. (NOT AVAILABLE)

14711-329-010

Unavailable

6

VALVE, EX.

14721-329-000

Unavailable

7

SPRING, VALVE (OUTER) (NIPPON HATSUJO) (NOT AVAILABLE)

14751-329-005

Unavailable

8

SPRING, VALVE (INNER) (NIPPON HATSUJO) (NOT AVAILABLE)

14761-329-005

Unavailable

9

RETAINER, VALVE SPRING

14771-329-000

$5.93

10

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-329-000

Unavailable

11

SEAT, VALVE SPRING (INNER)

14776-MA6-000

Unavailable

11

SEAT, VALVE SPRING (INNER) This part replaces 14776-329-000.

14776-MA6-000

Unavailable

12

COTTER, VALVE (SANKO)

14781-107-003

$2.55

12

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

13

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

14

PLUG, ROCKER ARM SHAFT (NOT AVAILABLE)

90011-356-000

Unavailable

15

SCREW, TAPPET ADJ.

90012-333-000

$2.75

16

NUT, TAPPET ADJ.

90206-KM3-000

$1.49

16

NUT, TAPPET ADJUSTING This part replaces 90206-246-000.

90206-KM3-000

$1.49

17

PIN, DOWEL (6X20.5) (NOT AVAILABLE)

90708-329-000

Unavailable

18

OIL SEAL (15X27X7)

91207-329-003

Unavailable

19

O-RING (16X1.9)

91306-329-000

$2.92
