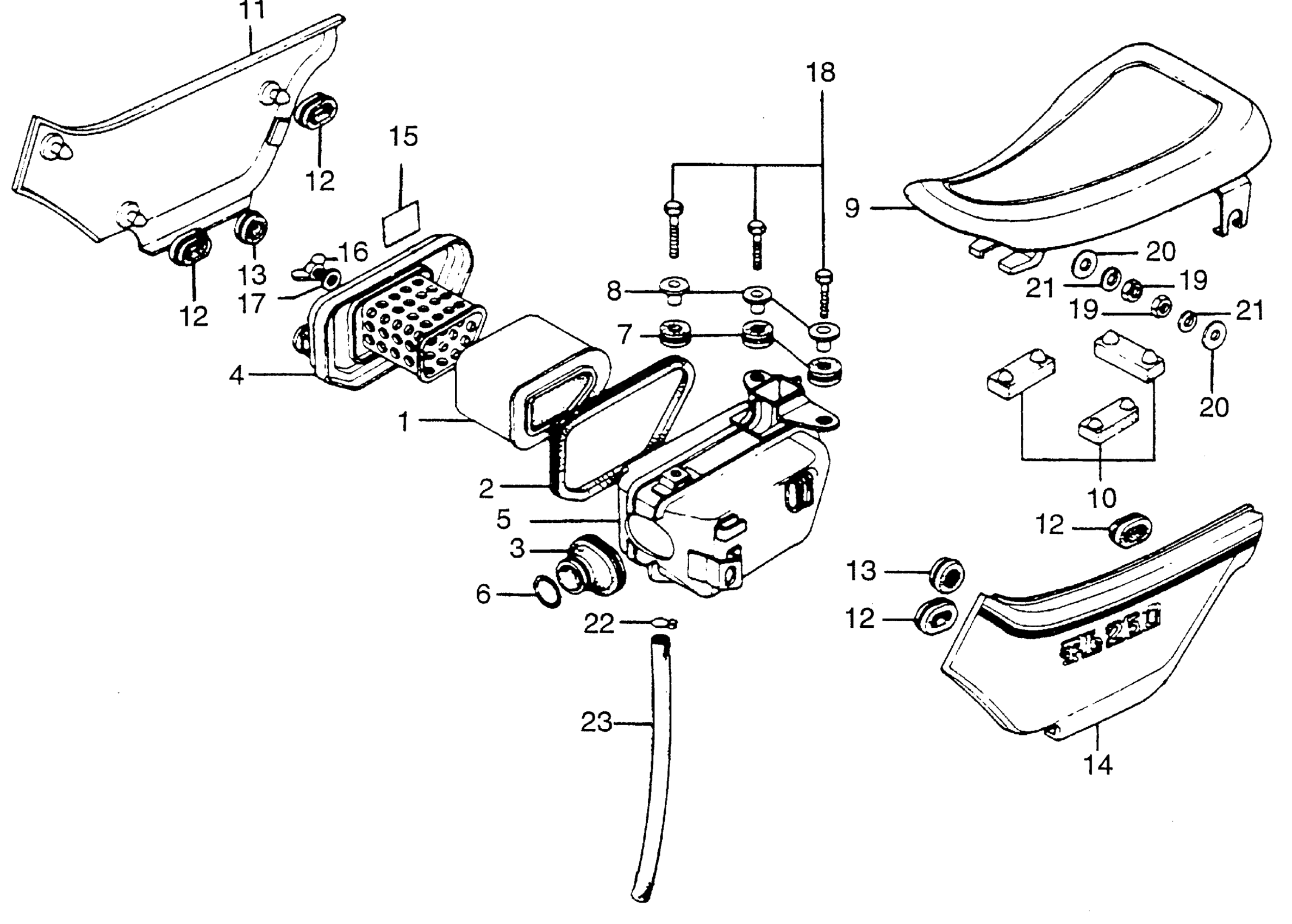

Honda TL250A (76) TRIALS 250, JPN, VIN# TL250-2004700 SEAT + AIR CLEANER + SIDE COVER Diagram

ELEMENT, AIR CLEANER (TOYO TOKI) (NOT AVAILABLE)

17211-376-003

Unavailable

RUBBER, ELEMENT SEAL (TOYO TOKI) (NOT AVAILABLE)

17213-376-003

Unavailable

TUBE, AIR CLEANER CONNECTING (TOYO TOKI) (NOT AVAILABLE)

17214-376-003

Unavailable

COVER, AIR CLEANER HOUSING (TOYO TOKI) (NOT AVAILABLE)

17220-376-003

Unavailable

HOUSING, AIR CLEANER (TOYO TOKI) (NOT AVAILABLE)

17230-376-003

Unavailable

BAND, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)

17242-376-000

Unavailable

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

COLLAR, RR. FENDER

61105-428-000

Unavailable

SEAT (NOT AVAILABLE)

77100-376-004

Unavailable

RUBBER B, SEAT SETTING

77205-286-000

$5.28

COVER ASSY., R. SIDE *NH44MS/YR26* (SPECIAL SILVER METALLIC AND SHINY ORANGE) (NOT AVAILABLE)

83530-376-770ZA

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

GROMMET, SIDE COVER

83551-376-000

$2.97

COVER ASSY., L. SIDE *NH44MS/YR26* (SPECIAL SILVER METALLIC AND SHINY ORANGE) (NOT AVAILABLE)

83630-376-770ZA

Unavailable

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

WINGNUT, TOOL BOX SETTING

90325-044-000

$3.51

WASHER, SEALING (6MM)

90416-551-000

Unavailable

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

CLIP, TUBE (C11)

95002-70000

$1.56

BULK HOSE, VINYL (7X11X8000) (7X11X360) (SOURCE: VINTAGE PARTS INC.)

95003-19008-10M

Unavailable
