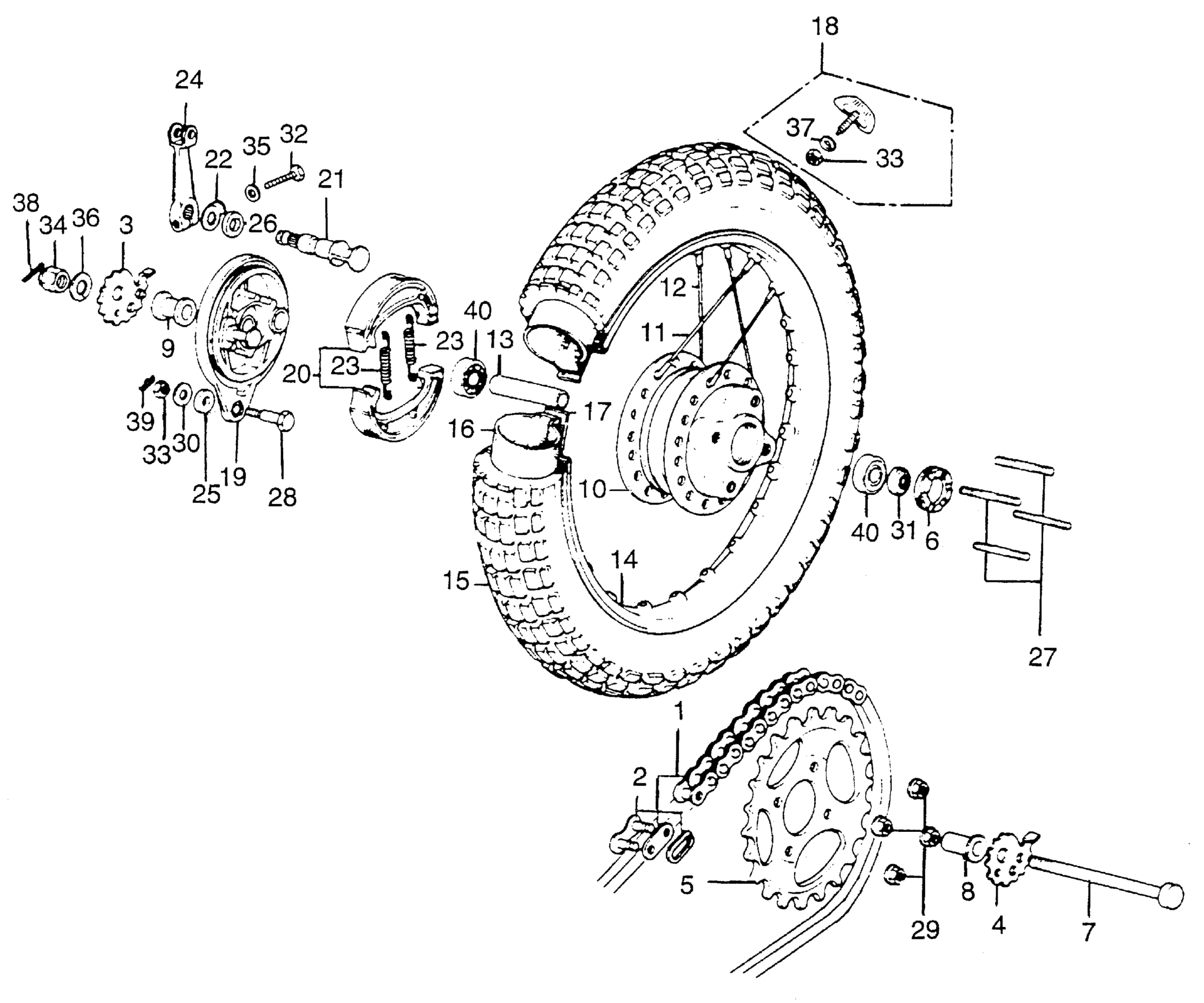

Honda TL250A (76) TRIALS 250, JPN, VIN# TL250-2004700 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

CHAIN, DRIVE (120L) (DAIDO) (NOT AVAILABLE)

40530-376-003

Unavailable

1

CHAIN, DRIVE (122L) (DAIDO) (NOT AVAILABLE)

40530-376-811

Unavailable

2

MASTER LINK (DAIDO) This part replaces 40531-376-003.

40531-418-711

$7.10

2

MASTER LINK (DAIDO)

40531-418-711

$7.10

3

ADJUSTER, R. CHAIN (NOT AVAILABLE)

40544-376-000

Unavailable

4

ADJUSTER, L. CHAIN (NOT AVAILABLE)

40545-376-000

$17.58

5

SPROCKET, FINAL DRIVEN (57T) (NOT AVAILABLE)

41201-376-000

Unavailable

5

SPROCKET, FINAL DRIVEN (59T) (NOT AVAILABLE)

41201-376-810

Unavailable

6

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-360-000

Unavailable

7

AXLE, RR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 2004940 This part replaces 42301-376-000.

42301-376-010

Unavailable

7

AXLE, RR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 2004940

42301-376-010

Unavailable

7

AXLE, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 2004940

42301-376-010

Unavailable

8

COLLAR, RR. WHEEL (NOT AVAILABLE)

42311-376-000

Unavailable

9

COLLAR, RR. BRAKE PANEL (NOT AVAILABLE)

42313-376-000

Unavailable

10

HUB, RR. WHEEL (NOT AVAILABLE)

42601-376-000

Unavailable

11

SPOKE A, RR.

42606-360-305

$5.57

12

SPOKE B, RR.

42607-360-305

$5.57

13

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-360-700

Unavailable

14

RIM, RR. WHEEL (2.15X18) (NOT AVAILABLE) This part replaces 42701-376-003.

42701-428-003

Unavailable

15

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE)

42711-329-672

Unavailable

16

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

16

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

17

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

17

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-340-006.

42713-304-003

$6.69

18

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

18

STOPPER, BEAD (2.15) This part replaces 42715-357-000.

42715-MA0-770

$37.88

18

STOPPER, BEAD (2.15) This part replaces 42715-428-000.

42715-MA0-770

$37.88

19

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-365-670

Unavailable

20

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

21

CAM, RR. BRAKE (NOT AVAILABLE)

43141-361-670

Unavailable

22

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-355-000

Unavailable

23

SPRING, BRAKE SHOE

43151-110-000

$2.92

24

ARM, RR. BRAKE (NOT AVAILABLE)

43411-376-000

Unavailable

25

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

26

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

27

BOLT, STUD (10X48MM)

90125-323-000

Unavailable

28

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

28

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

29

NUT, HEX. (10MM)

90308-357-000

$4.85

30

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

31

OIL SEAL (21X35X7) This part replaces 90752-035-000.

90752-035-003

$6.41

31

OIL SEAL (21X35X7)

90752-035-003

$6.41

32

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

32

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

33

NUT, HEX. (8MM)

94001-08000-0S

$1.49

34

NUT, CASTLE (14MM)

94011-14000-0S

$1.80

35

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

35

WASHER, PLAIN (6MM)

94101-06800

$1.49

36

WASHER, PLAIN (14MM)

94101-14000

$1.49

37

WASHER, SPRING (8MM)

94111-08000

$1.49

38

PIN, COTTER (3.0X45)

94201-30450

$1.49

39

PIN, LOCK (8MM)

94251-08000

$1.49

40

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

40

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
