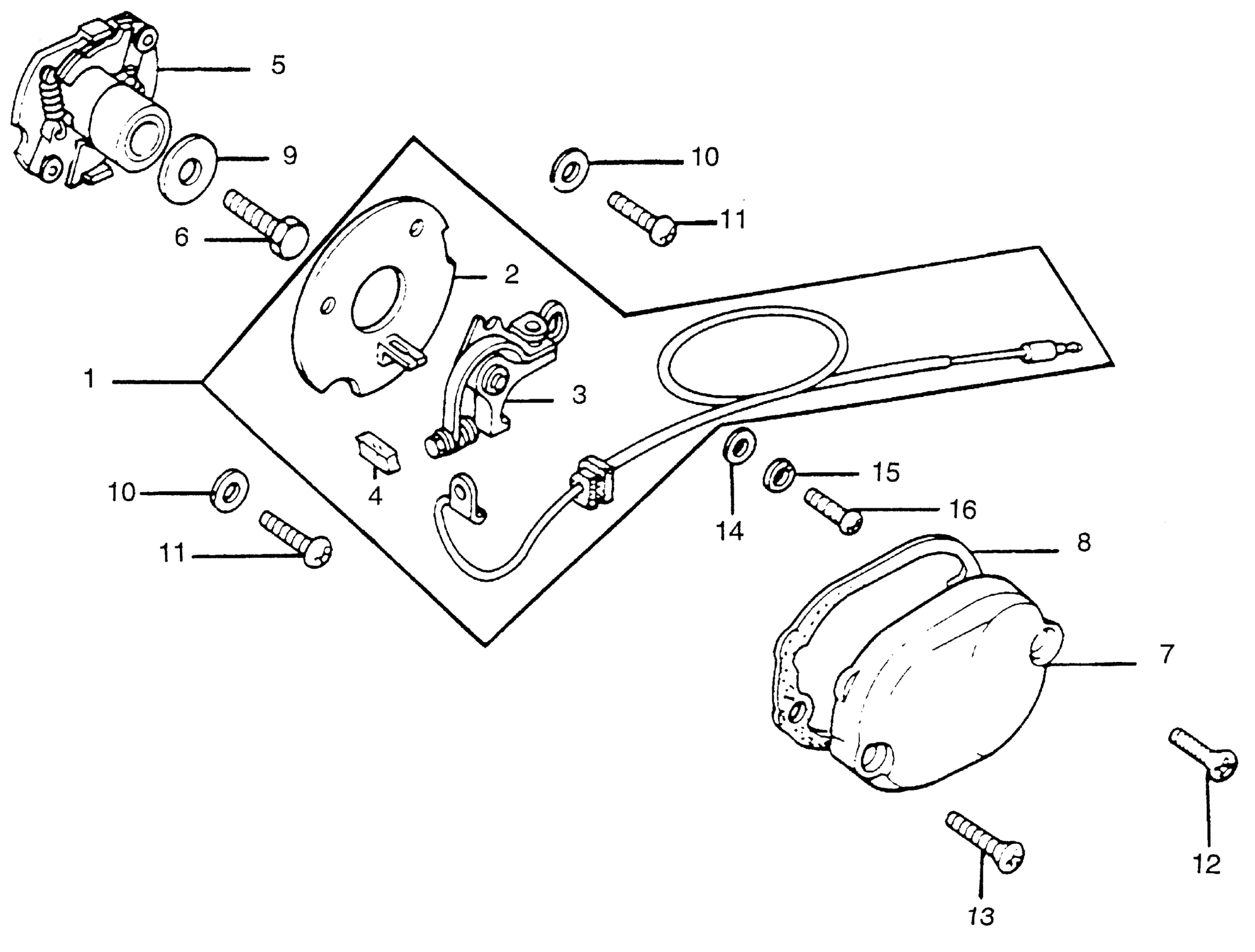

Honda TL250A (76) TRIALS 250, JPN, VIN# TL250-2004700 POINTS Diagram

POINTS ASSY. (DENSO) (NOT AVAILABLE) | Use up to Engine SN 2005340

30200-329-004

Unavailable

POINTS ASSY. (TOYO) (NOT AVAILABLE) | Use from Engine SN 2005341

30200-385-006

Unavailable

PLATE, POINTS BASE (DENSO) | Use up to Engine SN 2005340

30201-329-004

Unavailable

PLATE, POINTS BASE (TOYO) | Use from Engine SN 2005341

30201-107-154

Unavailable

POINTS (DENSO) | Use up to Engine SN 2005340

30202-107-004

$43.04

POINTS (TOYO)

30202-107-154

$27.89

FELT, OIL (KOKUSAN) (NOT AVAILABLE) | Use up to Engine SN 2005340 This part replaces 30205-028-004.

30205-028-003

Unavailable

FELT, OIL (TOYO) | Use from Engine SN 2005341

30205-300-154

Unavailable

ADVANCER ASSY., SPARK (DENSO) | Use up to Engine SN 2005340

30220-329-024

Unavailable

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE) | Use from Engine SN 2005341

30220-391-006

Unavailable

BOLT, SPARK ADVANCER SETTING (NOT AVAILABLE)

30225-246-004

Unavailable

COVER, POINTS (NOT AVAILABLE)

30370-329-700

Unavailable

GASKET, POINTS COVER This part replaces 30372-329-000.

30372-329-306

Unavailable

GASKET, POINTS COVER

30372-329-306

Unavailable

WASHER, GEARSHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 90417-035-303.

90417-302-000

Unavailable

WASHER (5MM)

90482-028-000

$2.09

SCREW, PAN (5X10)

93500-05010-0A

$1.49

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

SCREW, OVAL (5X22) (SOURCE: VINTAGE PARTS INC.)

93700-05022-0A

Unavailable

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49

SCREW, PAN (4X6) This part replaces 99500-04006-0A.

93500-04006-0A

$1.49

SCREW, PAN (4X6) This part replaces 99500-04007-0A.

93500-04006-0A

$1.49
