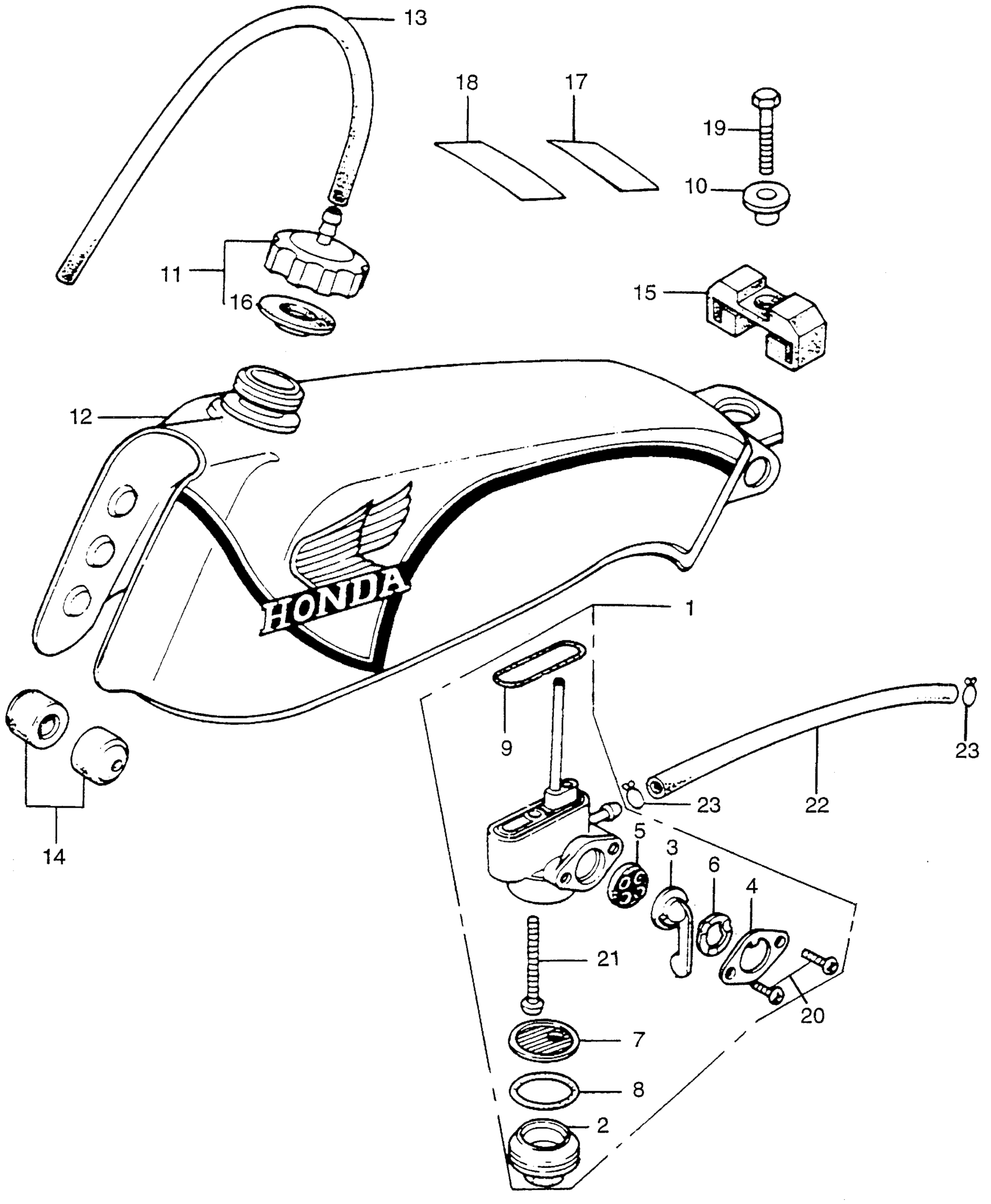

Honda TL250A (76) TRIALS 250, JPN, VIN# TL250-2004700 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-376-015

Unavailable

2

CUP, FUEL STRAINER (NOT AVAILABLE)

16952-376-005

Unavailable

3

LEVER, PETCOCK (NOT AVAILABLE)

16953-389-670

Unavailable

4

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

5

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

5

GASKET, VALVE

16957-ZE1-812

$3.08

6

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

7

SCREEN, FUEL STRAINER

16957-028-000

$16.22

8

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

8

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

8

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

8

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

9

O-RING (23.8X2.4)

16997-273-000

$4.53

10

COLLAR, FUEL TANK MOUNT (NOT AVAILABLE)

17508-357-000

Unavailable

11

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17510-355-000.

17510-355-010

Unavailable

11

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17510-355-010

Unavailable

11

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17510-357-000.

17510-355-010

Unavailable

12

TANK ASSY., FUEL *NH44MS/YR26* (SPECIAL SILVER METALLIC AND SHINY ORANGE) (NOT AVAILABLE)

17510-376-000ZB

Unavailable

13

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-357-000

Unavailable

14

RUBBER, FR. FUEL TANK

17611-303-000

$7.63

15

RUBBER, RR. FUEL TANK (NOT AVAILABLE) This part replaces 17613-376-000.

17613-383-720

Unavailable

16

GASKET, FUEL CAP This part replaces 17624-098-010.

17624-896-750

Unavailable

16

GASKET, FUEL CAP This part replaces 17624-355-000.

17624-896-750

Unavailable

16

GASKET, FUEL CAP This part replaces 17624-355-010.

17624-896-750

Unavailable

16

GASKET, FUEL CAP

17624-896-750

Unavailable

17

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87504-130-720ZA

Unavailable

18

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

19

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

19

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

20

SCREW, PAN (3X6)

93500-03006-0A

$1.49

21

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

21

SCREW, PAN (6X40)

93500-06040-0A

$1.49

22

BULK HOSE, FUEL (4.5X3000) (4.5)

95001-45003-60M

$36.67

22

TUBE (4.5) This part replaces 95001-45000-90.

95001-45000-40

Unavailable

23

CLIP, TUBE (B8)

95002-02080

$1.80
