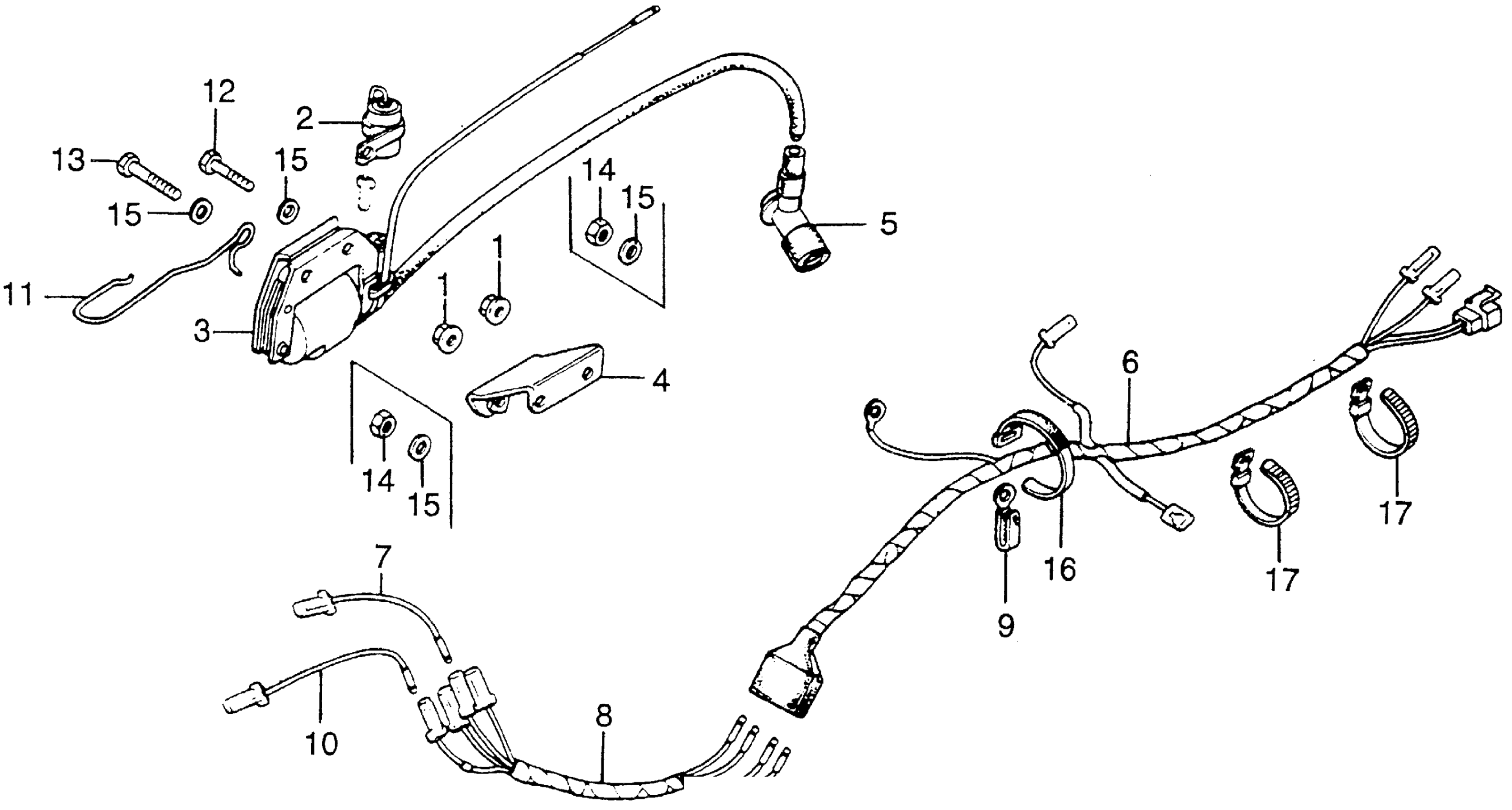

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

NUT, FLANGE (6MM) | Use from Frame SN 1010001 This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM) | Use from Frame SN 1010001

94050-06000

$1.49

2

CONDENSER ASSY. (TOYO)

30250-052-156

Unavailable

3

COIL, IGNITION This part replaces 30500-355-003.

30500-950-405

$118.02

3

COIL, IGNITION

30500-950-405

$118.02

3

COIL, IGNITION This part replaces 30530-355-003.

30500-950-405

$118.02

4

BRACKET, IGNITION COIL | Use up to Frame SN 1010054 This part replaces 30530-355-000.

30540-355-010

Unavailable

4

BRACKET, IGNITION COIL This part replaces 30530-355-010.

30540-355-010

Unavailable

4

BRACKET, IGNITION COIL

30540-355-010

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR | Use up to Frame SN 1018591 This part replaces 30600-918-670.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR | Use up to Frame SN 1018591 This part replaces 30700-152-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR | Use up to Frame SN 1018591 This part replaces 30700-152-163.

30700-KE2-942

$17.87

6

WIRE HARNESS (NOT AVAILABLE)

32100-355-971

Unavailable

7

SUB-WIRE A (WHITE/YELLOW) (NOT AVAILABLE)

32104-389-670

Unavailable

8

WIRE HARNESS B (NOT AVAILABLE)

32105-355-970

Unavailable

9

CLIP C, WIRE HARNESS (NOT AVAILABLE)

32173-369-000

Unavailable

10

SUB-WIRE

32201-355-710

Unavailable

11

GUIDE, CLUTCH CABLE

50721-382-670

Unavailable

12

BOLT, HEX. (6X16) | Use up to Frame SN 1010000 This part replaces 92000-06016.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) | Use up to Frame SN 1010000 This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) | Use up to Frame SN 1010000 This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X25) | Use from Frame SN 1010001 This part replaces 92000-06025.

92101-06025-0A

$1.62

12

BOLT, HEX. (6X16) | Use up to Frame SN 1010000 This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) | Use up to Frame SN 1010000

92101-06016-0A

$1.49

12

BOLT, HEX. (6X25) | Use from Frame SN 1010001

92101-06025-0A

$1.62

12

BOLT, HEX. (6X16) | Use up to Frame SN 1010000 This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

13

BOLT, HEX. (6X20) | Use up to Frame SN 1010000 This part replaces 92000-06020.

92101-06020-0A

$1.49

13

BOLT, HEX. (6X25) | Use from Frame SN 1010001 This part replaces 92000-06025.

92101-06025-0A

$1.62

13

BOLT, HEX. (6X20) | Use up to Frame SN 1010000

92101-06020-0A

$1.49

13

BOLT, HEX. (6X25) | Use from Frame SN 1010001

92101-06025-0A

$1.62

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94030-06000.

94001-06200-0S

$1.49

15

WASHER, PLAIN (6MM) | Use up to Frame SN 1010000 This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use from Frame SN 1010001 This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use up to Frame SN 1010000 This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use from Frame SN 1010001 This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use up to Frame SN 1010000

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use from Frame SN 1010001

94101-06800

$1.49

16

BAND A3, CABLE

95014-61300

$1.97

17

BAND B1, CABLE

95014-62100

$1.64
