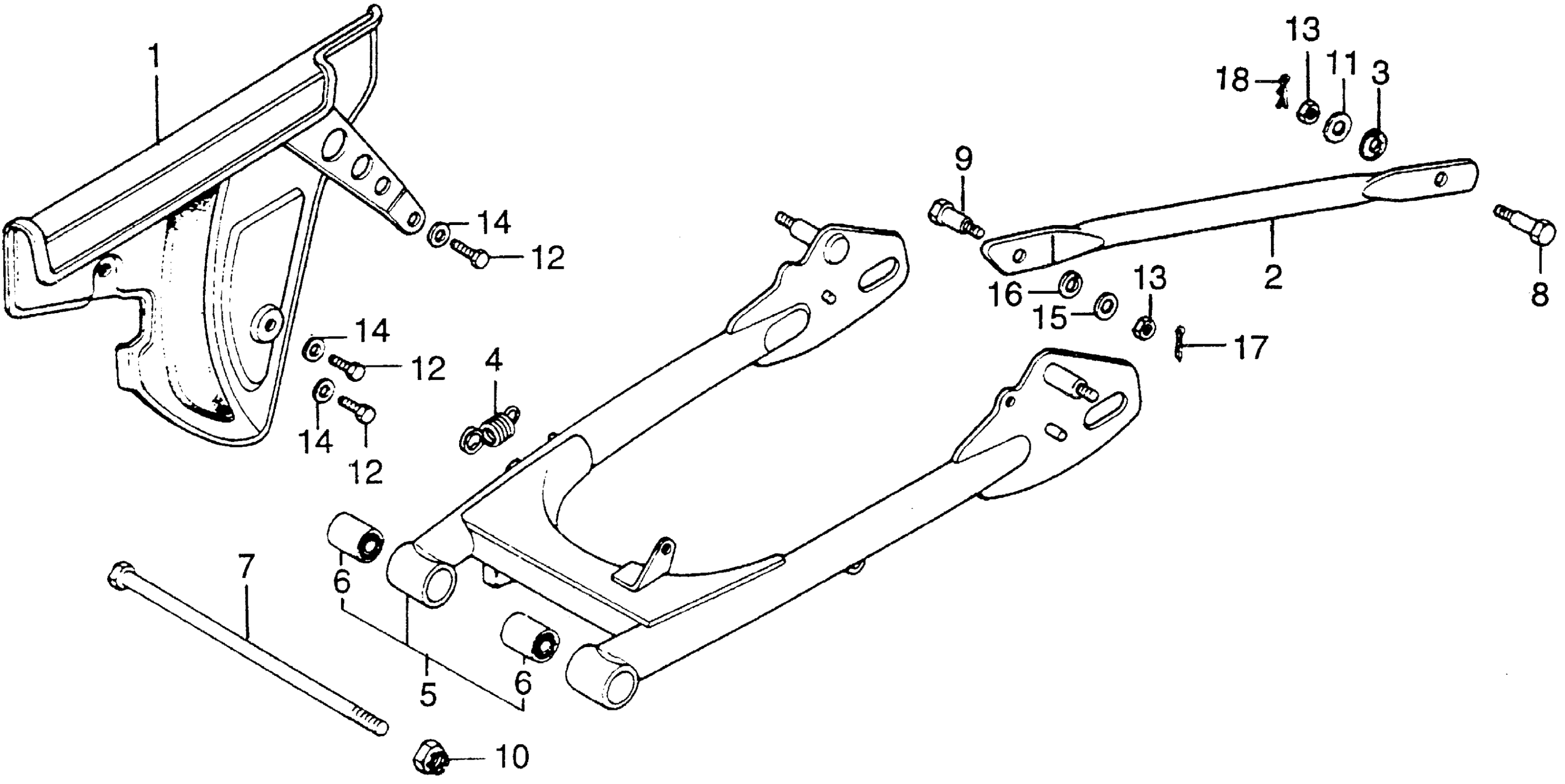

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-355-000B

Unavailable

2

ARM, RR. BRAKE STOPPER *NH1* (BLACK) (NOT AVAILABLE)

43431-355-000B

Unavailable

3

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

4

SPRING, STEP STOPPER (NOT AVAILABLE)

50660-355-000

Unavailable

5

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-355-670B

Unavailable

6

BUSH, SWINGARM PIVOT | Use up to Frame SN 1010010 This part replaces 52108-028-000.

52147-028-300

$17.90

6

BUSH, SWINGARM PIVOT | Use up to Frame SN 1010010

52147-028-300

$17.90

6

BUSH, SWINGARM PIVOT

52147-028-300

$17.90

7

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-355-000

Unavailable

8

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

8

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

9

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

10

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

11

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, PLAIN (8MM)

94101-08000

$1.49

16

WASHER, SPRING (10MM)

94111-10000

$1.49

17

PIN, SPLIT (2.0X15)

94201-20150

$1.49

18

PIN, LOCK (8MM)

94251-08000

$1.49
