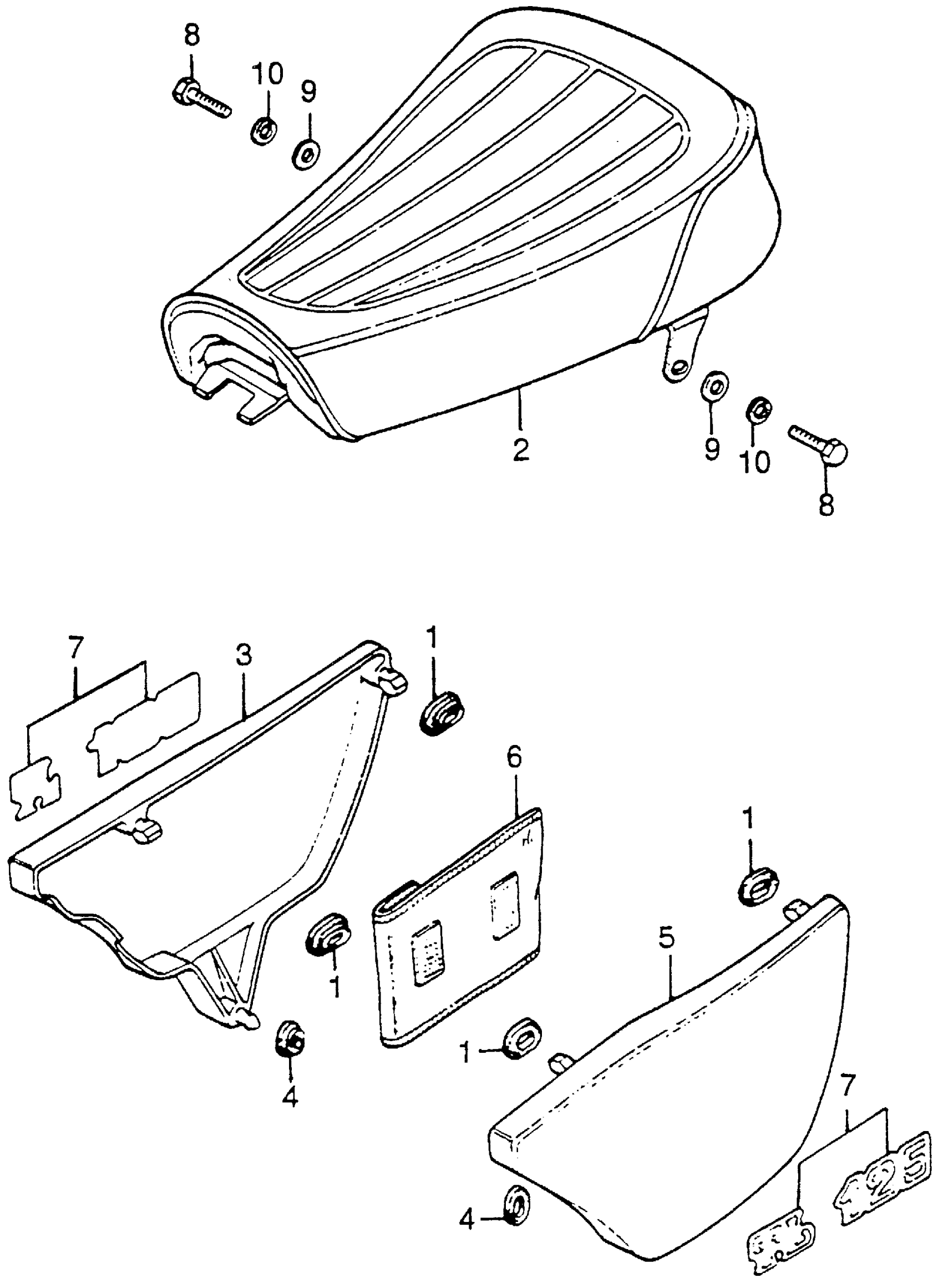

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 SEAT + SIDE COVER Diagram

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$7.75

SEAT

77100-KB2-000

Unavailable

SEAT This part replaces 77100-355-000A.

77100-KB2-000

Unavailable

COVER, R. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

83540-KB2-000MA

Unavailable

COVER, R. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE) This part replaces 83540-355-700MA.

83540-KB2-000MA

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

COVER, L. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

83640-KB2-000MA

Unavailable

COVER, L. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE) This part replaces 83640-355-700MA.

83640-KB2-000MA

Unavailable

BAG, OWNER'S MANUAL

83642-355-000

$26.34

EMBLEM, SIDE COVER *YR26* (SHINY ORANGE) (NOT AVAILABLE)

87128-355-710ZA

Unavailable

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable

WASHER, PLAIN (8MM)

94101-08000

Unavailable

WASHER, SPRING (8MM)

94111-08000

Unavailable
