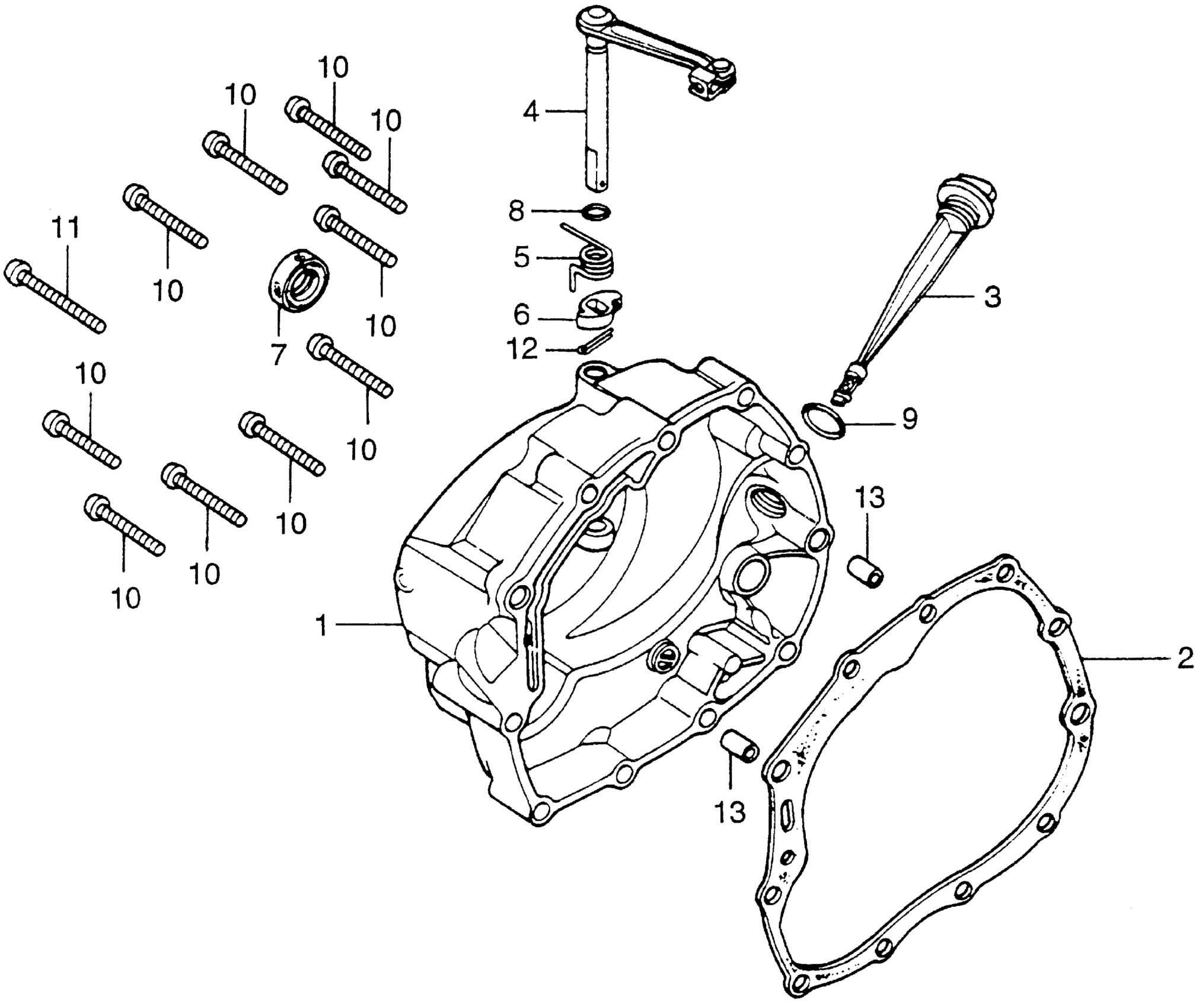

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-383-670

Unavailable

2

GASKET, R. This part replaces 11393-KY0-600.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-000.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-010.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-020.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-306.

11393-K0K-A00

Unavailable

3

DIPSTICK, OIL

15650-MC8-000

Unavailable

3

DIPSTICK, OIL This part replaces 15650-383-000.

15650-MC8-000

Unavailable

4

LEVER, CLUTCH

22810-365-000

Unavailable

5

SPRING, CLUTCH LEVER

22816-355-000

Unavailable

6

CAM, CLUTCH LIFTER

22821-355-000

Unavailable

7

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

7

OIL SEAL (16X28X7) (ARAI)

91204-259-003

$5.60

7

OIL SEAL (16X28X7) This part replaces 91204-259-005.

91204-259-003

$5.60

7

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

8

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

8

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

8

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

9

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

9

O-RING (18X3)

91307-035-000

$2.92

10

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

10

SCREW, PAN (6X40)

93500-06040-0A

$1.49

11

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

11

SCREW, PAN (6X50)

93500-06050-0A

$1.49

12

PIN, SPLIT (2.0X15)

94201-20150

$1.49

13

PIN, DOWEL (8X14)

94301-08140

$2.25
