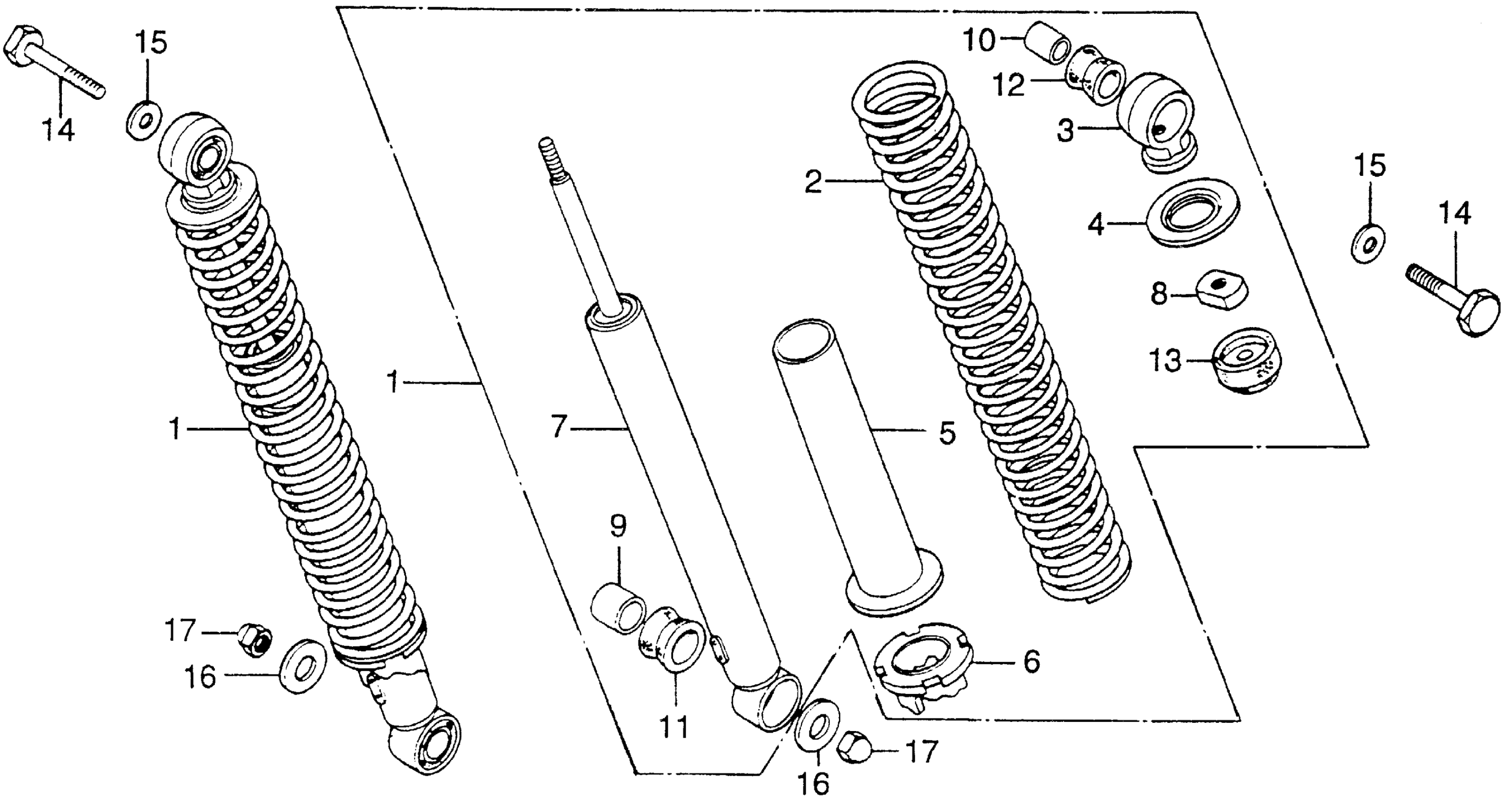

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-355-700

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-355-700

Unavailable

3

JOINT (UPPER) (SHOWA)

52403-331-003

Unavailable

4

STOPPER, SPRING SEAT (NOT AVAILABLE)

52405-355-000

Unavailable

5

GUIDE, SPRING

52406-GM2-003

Unavailable

5

GUIDE, SPRING This part replaces 52406-355-000.

52406-GM2-003

Unavailable

6

ADJUSTER, RR. SHOCK ABSORBER SPRING

52422-455-000

Unavailable

7

DAMPER, RR. (NOT AVAILABLE)

52430-355-010

Unavailable

8

NUT, LOCK (9MM) (NOT AVAILABLE)

52482-331-003

Unavailable

9

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-056-000

$4.28

10

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

11

RUBBER B, JOINT

52488-331-003

Unavailable

12

RUBBER A, JOINT (SHOWA)

52489-331-003

$2.03

13

RUBBER, STOPPER

52517-331-003

Unavailable

14

BOLT, RR. SHOCK ABSORBER (NOT AVAILABLE)

90122-355-000

Unavailable

15

WASHER A, HANDLE HOLDER SETTING | Use up to Frame SN 1010000

90524-030-000

$1.49

15

WASHER, PLAIN (8MM) | Use from Frame SN 1010001

94101-08000

$1.49

16

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

17

NUT, CAP (10MM)

94021-10020-0S

$2.08
