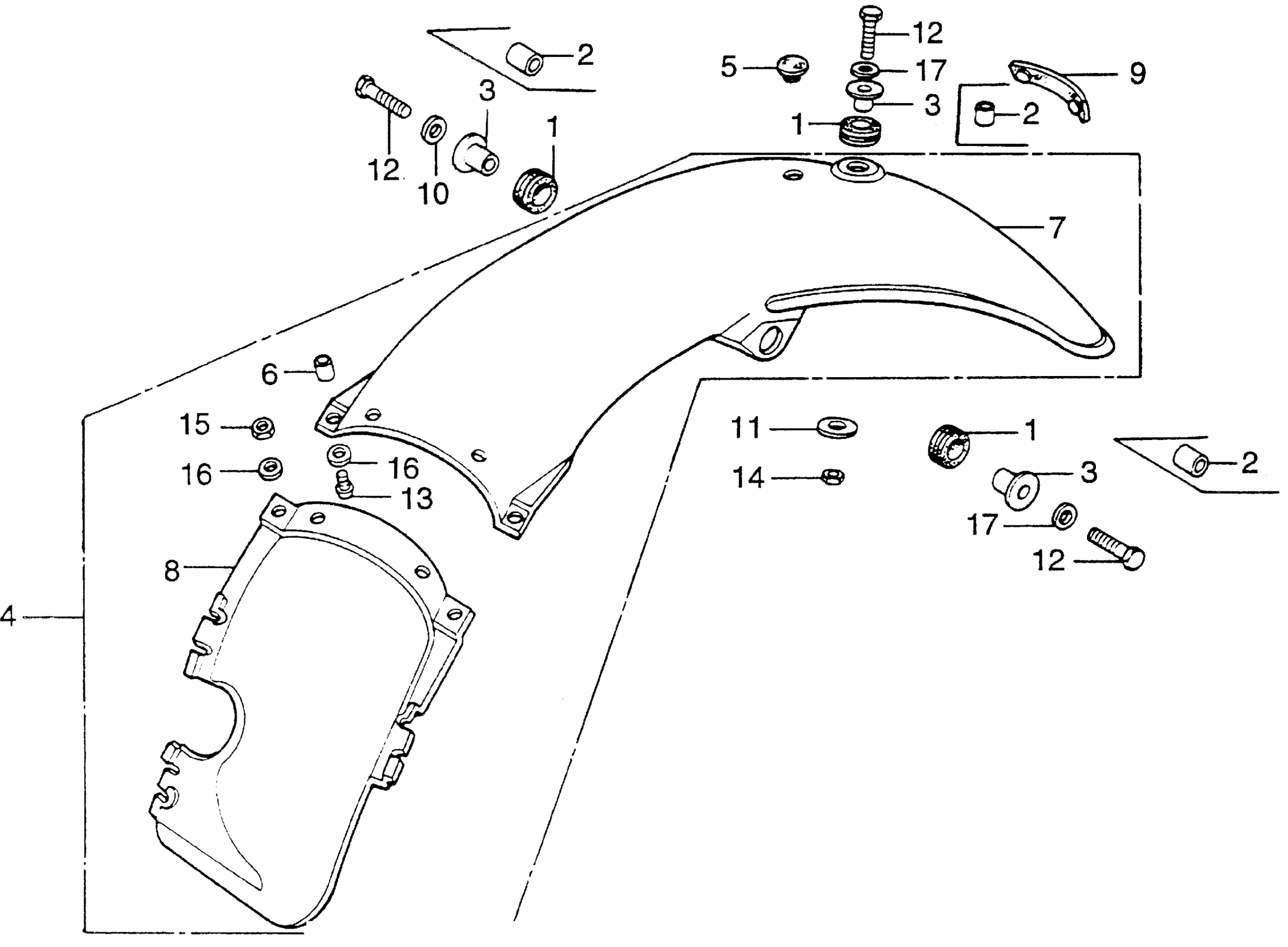

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 REAR FENDER Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

2

COLLAR, RR. TURN SIGNAL STAY | Use up to Frame SN 1010000

33603-053-650

$1.64

3

COLLAR, FR. FENDER (WHITE) | Use from Frame SN 1010001 This part replaces 61104-357-000.

61104-428-010

$4.42

3

COLLAR, FR. FENDER (WHITE) | Use from Frame SN 1010001 This part replaces 61104-428-000.

61104-428-010

$4.42

3

COLLAR, RR. FENDER | Use from Frame SN 1010001

61105-428-000

Unavailable

4

FENDER, RR. *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

80100-355-670MA

Unavailable

5

PLUG, HOLE (10MM) This part replaces 80102-355-670.

91601-SR3-000

Unavailable

5

PLUG

91601-SR3-000

Unavailable

6

COLLAR (NOT AVAILABLE)

80105-355-000

Unavailable

7

FENDER A *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

80100-355-000MA

Unavailable

7

FENDER A *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE) This part replaces 80107-355-000MA.

80100-355-000MA

Unavailable

8

FENDER B, RR. (NOT AVAILABLE)

80108-355-000

Unavailable

9

PLUG, RR. FENDER (NOT AVAILABLE)

80109-355-670

Unavailable

10

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

11

WASHER, WHEEL (6MM) | Use up to Frame SN 1010000

90563-355-000

$3.13

12

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

12

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

13

SCREW, PAN (5X10)

93500-05010-0A

$1.49

14

NUT, FLANGE (6MM) | Use from Frame SN 1010001 This part replaces 18362-720-000.

94050-06000

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) | Use up to Frame SN 1010000 This part replaces 94030-06000.

94001-06200-0S

$1.49

14

NUT, FLANGE (6MM) | Use from Frame SN 1010001

94050-06000

$1.49

15

NUT, HEX. (5MM)

94002-05000-0S

$1.49

16

WASHER, PLAIN (5MM)

94101-05000

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49
