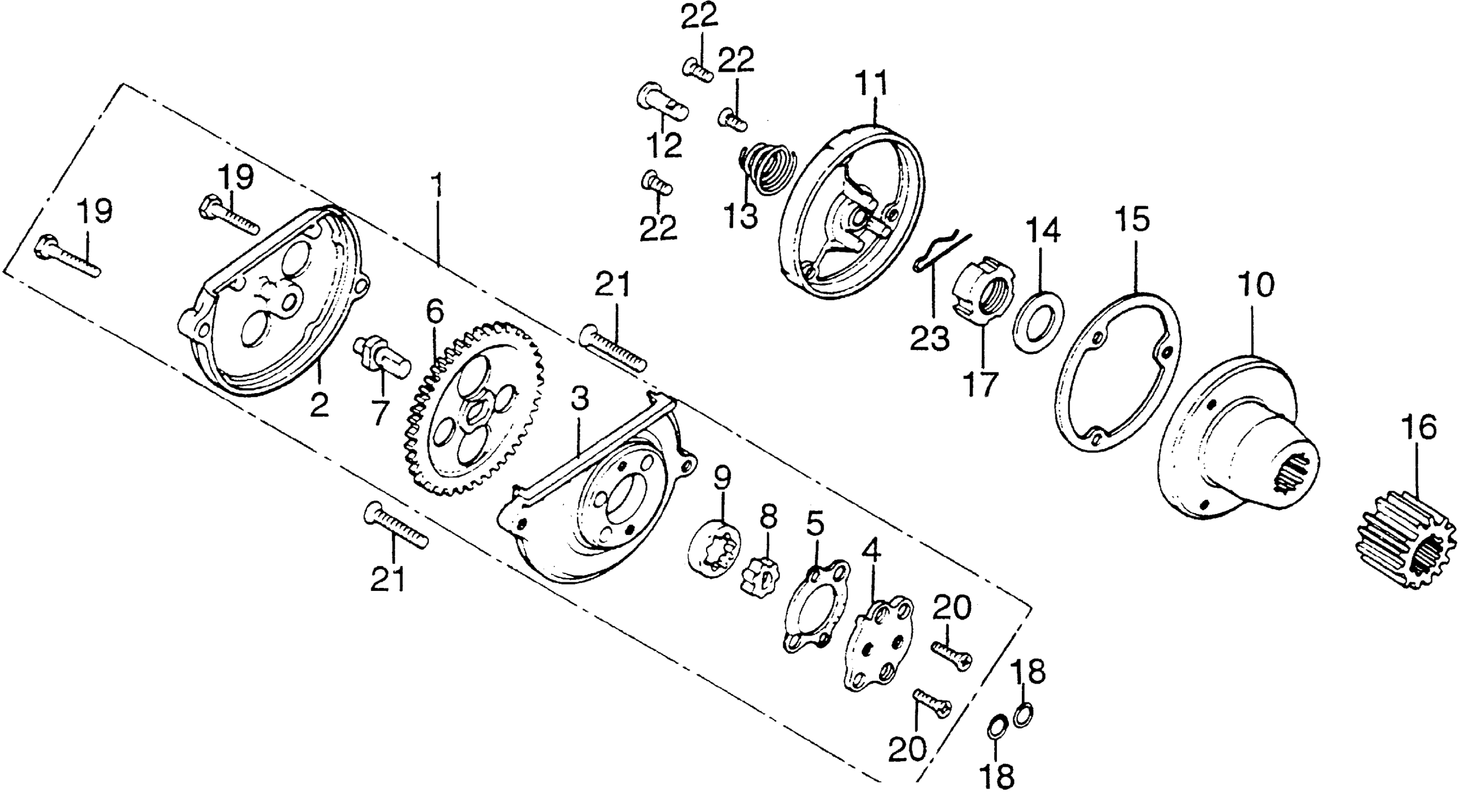

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 OIL PUMP + OIL FILTER Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KCS-851

Unavailable

1

PUMP ASSY., OIL This part replaces 15100-383-000.

15100-KCS-851

Unavailable

1

PUMP ASSY., OIL This part replaces 15100-383-010.

15100-KCS-851

Unavailable

2

COVER, OIL PUMP GEAR This part replaces 15106-330-000.

15106-330-010

Unavailable

2

COVER, OIL PUMP GEAR

15106-330-010

Unavailable

3

BODY, OIL PUMP (NOT AVAILABLE) This part replaces 15111-365-000.

15111-437-000

Unavailable

3

BODY, OIL PUMP

15111-437-000

Unavailable

4

PLATE, OIL PUMP

15116-107-020

Unavailable

5

GASKET, OIL PUMP

15126-107-020

$1.70

6

GEAR, OIL PUMP DRIVE (39T)

15131-324-010

$51.82

7

SHAFT, OIL PUMP (NOT AVAILABLE)

15136-383-000

Unavailable

8

ROTOR, OIL PUMP (INNER) (YAMADA)

15331-921-003

Unavailable

9

ROTOR, OIL PUMP (OUTER) (YAMADA)

15332-921-003

Unavailable

10

ROTOR, OIL FILTER This part replaces 15430-383-000.

15430-440-030

$64.57

10

ROTOR, OIL FILTER This part replaces 15430-440-000.

15430-440-030

$64.57

10

ROTOR, OIL FILTER This part replaces 15430-440-010.

15430-440-030

$64.57

10

ROTOR, OIL FILTER This part replaces 15430-440-020.

15430-440-030

$64.57

10

ROTOR, OIL FILTER

15430-440-030

$64.57

11

CAP, OIL FILTER ROTOR

15436-107-000

$39.51

12

THROUGH, OIL

15441-KCS-650

$6.77

12

THROUGH, OIL This part replaces 15441-107-000.

15441-KCS-650

$6.77

13

SPRING, OIL THROUGH

15446-107-000

$4.11

14

WASHER, OIL FILTER ROTOR LOCKING

15451-107-000

$4.03

15

GSKT, OIL FILTER CAP This part replaces 15459-KT0-710.

15459-K70-630

$3.56

15

GSKT, OIL FILTER CAP This part replaces 15459-107-000.

15459-K70-630

$3.56

15

GSKT, OIL FILTER CAP This part replaces 15459-107-306.

15459-K70-630

$3.56

16

GEAR, PRIMARY DRIVE (19T) This part replaces 23121-383-000.

23121-KCS-650

Unavailable

17

NUT, LOCK (16MM)

90231-107-000

Unavailable

18

O-RING (9.4X2.4)

91304-KK3-830

$2.31

18

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

19

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

20

SCREW, FLAT (4X12)

93600-04012-0A

$1.49

21

SCREW, FLAT (6X28) This part replaces 93600-06028.

93600-06028-0A

$1.49

21

SCREW, FLAT (6X28)

93600-06028-0A

$1.49

22

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

23

PIN, LOCK (8MM)

94251-08000

$1.49
