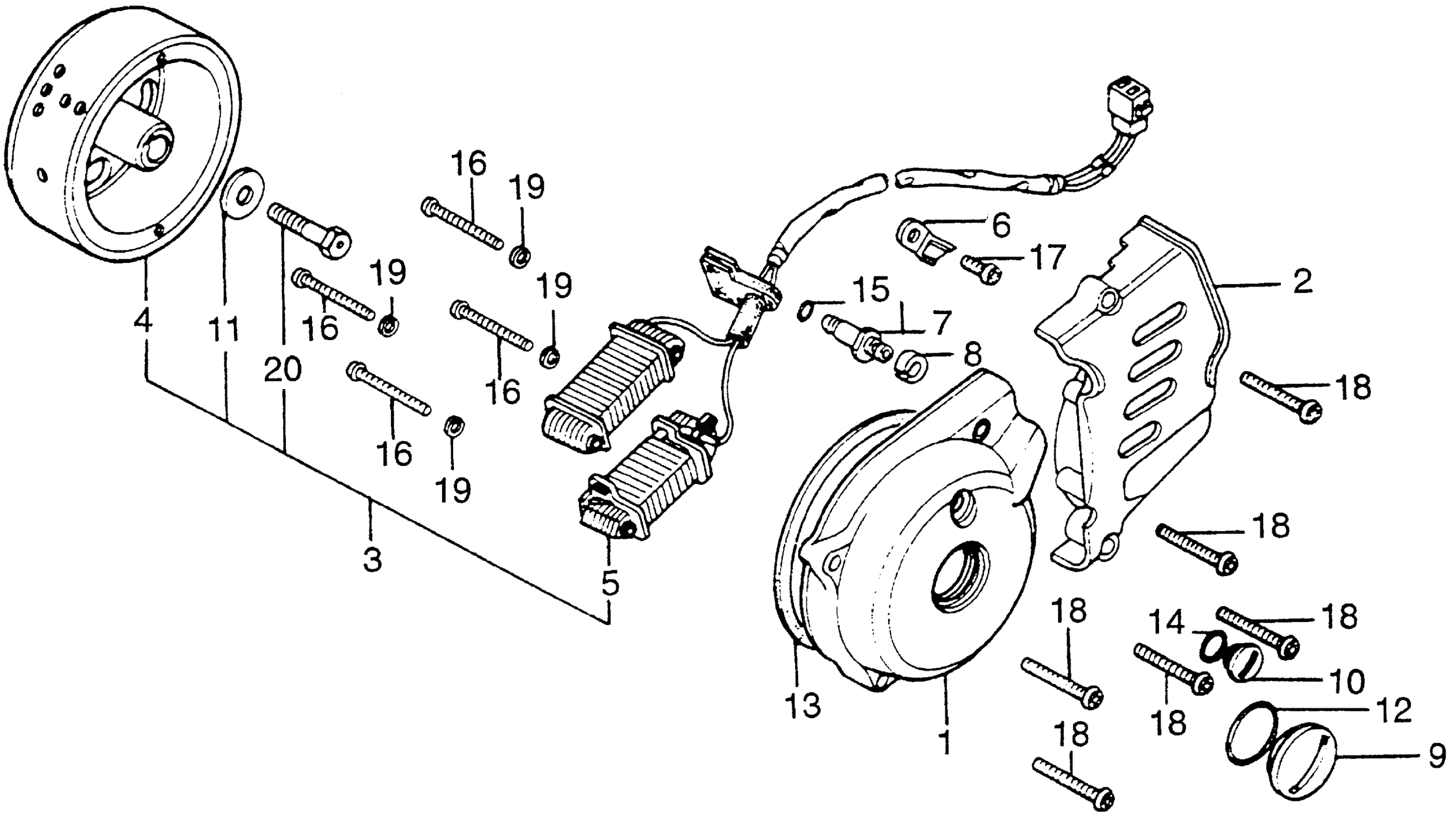

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-355-010

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-355-020

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-355-971

Unavailable

4

FLYWHEEL

31121-355-671

Unavailable

5

STATOR (NOT AVAILABLE)

31141-355-971

Unavailable

6

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.97

6

CLAMP, WIRE HARNESS

32976-107-010

$1.97

7

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

8

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.92

8

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.92

9

CAP A, ALTERNATOR (NOT AVAILABLE)

90082-355-000

Unavailable

10

CAP B, ALTERNATOR (NOT AVAILABLE)

90083-355-000

Unavailable

11

WASHER, ROTOR SETTING

90426-355-000

$4.22

12

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-790.

91301-428-003

$2.21

12

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-791.

91301-428-003

$2.21

12

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

12

O-RING (35.5X3) (NOK) This part replaces 91302-216-000.

91301-428-003

$2.21

12

O-RING (35.5X3) (NOK) This part replaces 91302-500-000.

91301-428-003

$2.21

13

GASKET, L. CRANKCASE COVER

91302-355-000

$12.49

14

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

14

O-RING (11X2.5)

91310-426-000

$5.19

14

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

15

O-RING (7X1.7)

91312-107-000

$3.18

16

SCREW, PAN (5X40)

93500-05040-0A

$1.49

17

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

17

SCREW, PAN (6X12)

93500-06012-0A

$1.49

17

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

18

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

18

SCREW, PAN (6X32)

93500-06032-0A

$1.49

19

WASHER, SPRING (5MM)

94111-05000

$1.49

20

BOLT A1, ROTOR

95015-11100

Unavailable
