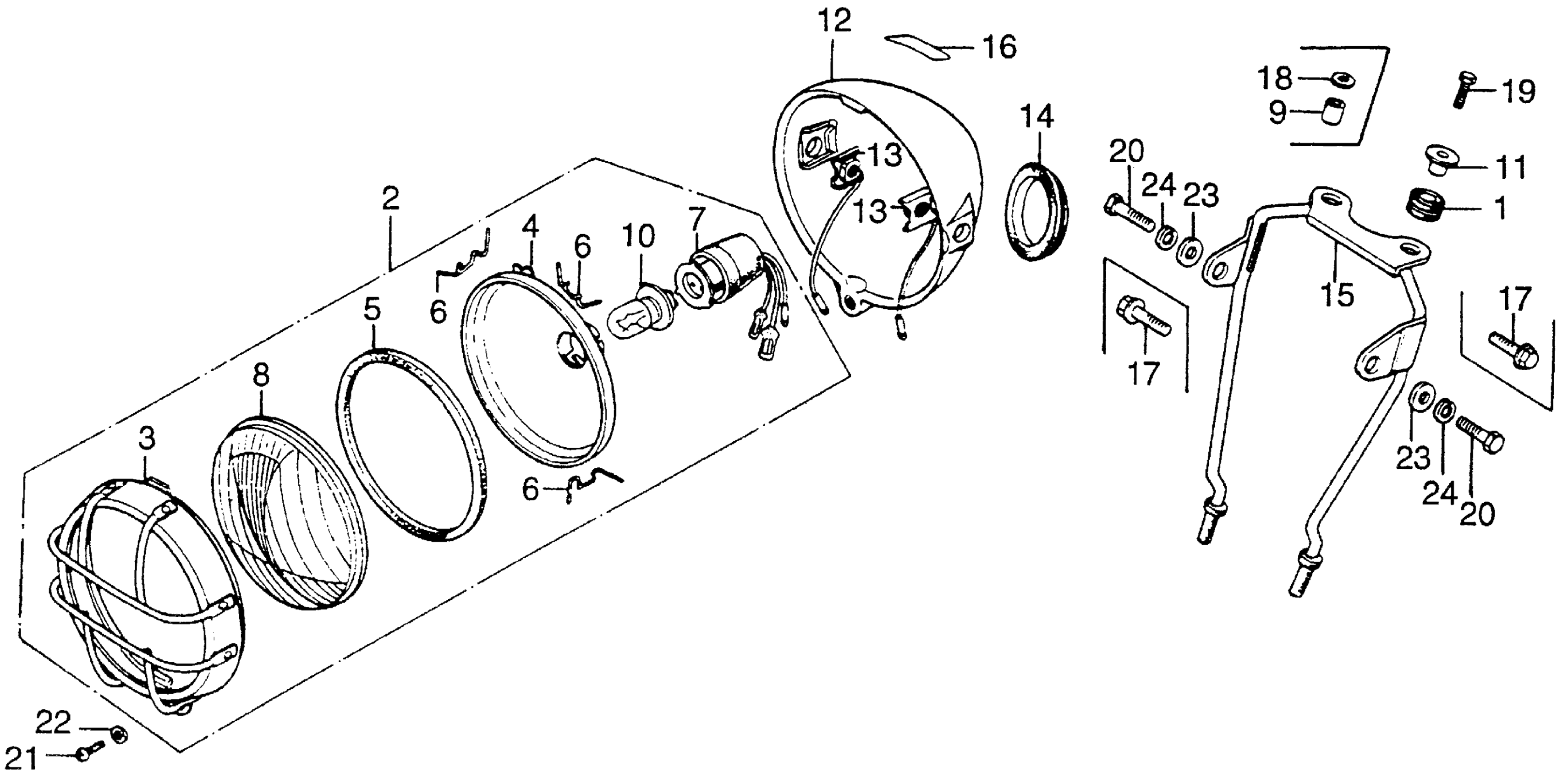

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 HEADLIGHT Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

2

HEADLIGHT ASSY. (6V25/25W) (NOT AVAILABLE)

33100-355-970

Unavailable

3

RIM, HEADLIGHT (NOT AVAILABLE)

33101-355-970

Unavailable

4

REFLECTOR, HEADLIGHT

33104-028-003

Unavailable

5

GASKET, HEADLIGHT LENS

33105-028-003

Unavailable

6

SPRING, UNIT HOLDER (STANLEY)

33108-028-013

$2.34

7

SOCKET, HEADLIGHT (NOT AVAILABLE)

33110-121-003

Unavailable

8

LENS, HEADLIGHT (STANLEY) (NOT AVAILABLE)

33121-065-003

Unavailable

9

COLLAR, RR. TURN SIGNAL STAY | Use up to Frame SN 1010000

33603-053-650

$1.64

10

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-030-003

$9.57

10

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-087-640

$9.57

11

COLLAR, FR. FENDER (WHITE) | Use from Frame SN 1010001 This part replaces 61104-357-000.

61104-428-010

$4.42

11

COLLAR, FR. FENDER (WHITE) | Use from Frame SN 1010001 This part replaces 61104-428-000.

61104-428-010

$4.42

11

COLLAR, RR. FENDER | Use from Frame SN 1010001

61105-428-000

Unavailable

12

CASE, HEADLIGHT *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 61301-115-000MA.

61301-115-010ZP

Unavailable

12

CASE, HEADLIGHT *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

61301-115-010ZP

Unavailable

13

NUT, HEADLIGHT CASE

61303-105-000

$3.81

14

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61304-115-000

Unavailable

15

BRACKET, HEADLIGHT CASE (NOT AVAILABLE)

61311-355-970

Unavailable

16

LABEL, CAUTION (NOT AVAILABLE)

87560-373-670

Unavailable

17

BOLT, FLANGE (8X25) (NOT AVAILABLE) | Use from Frame SN 1010001

90119-383-000

Unavailable

18

WASHER, WHEEL (6MM) | Use up to Frame SN 1010000

90563-355-000

$3.13

19

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

19

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

20

BOLT, HEX. (8X25) | Use up to Frame SN 1010000 This part replaces 92000-08025-0B.

92101-08025-0B

$1.79

20

BOLT, HEX. (8X25) | Use up to Frame SN 1010000

92101-08025-0B

$1.79

21

SCREW, PAN (5X12)

93500-05012-0A

$1.49

22

WASHER, PLAIN (5MM)

94101-05000

$1.49

23

WASHER, PLAIN (8MM) | Use up to Frame SN 1010000

94101-08000

$1.49

24

WASHER, SPRING (8MM) | Use up to Frame SN 1010000

94111-08000

$1.49
