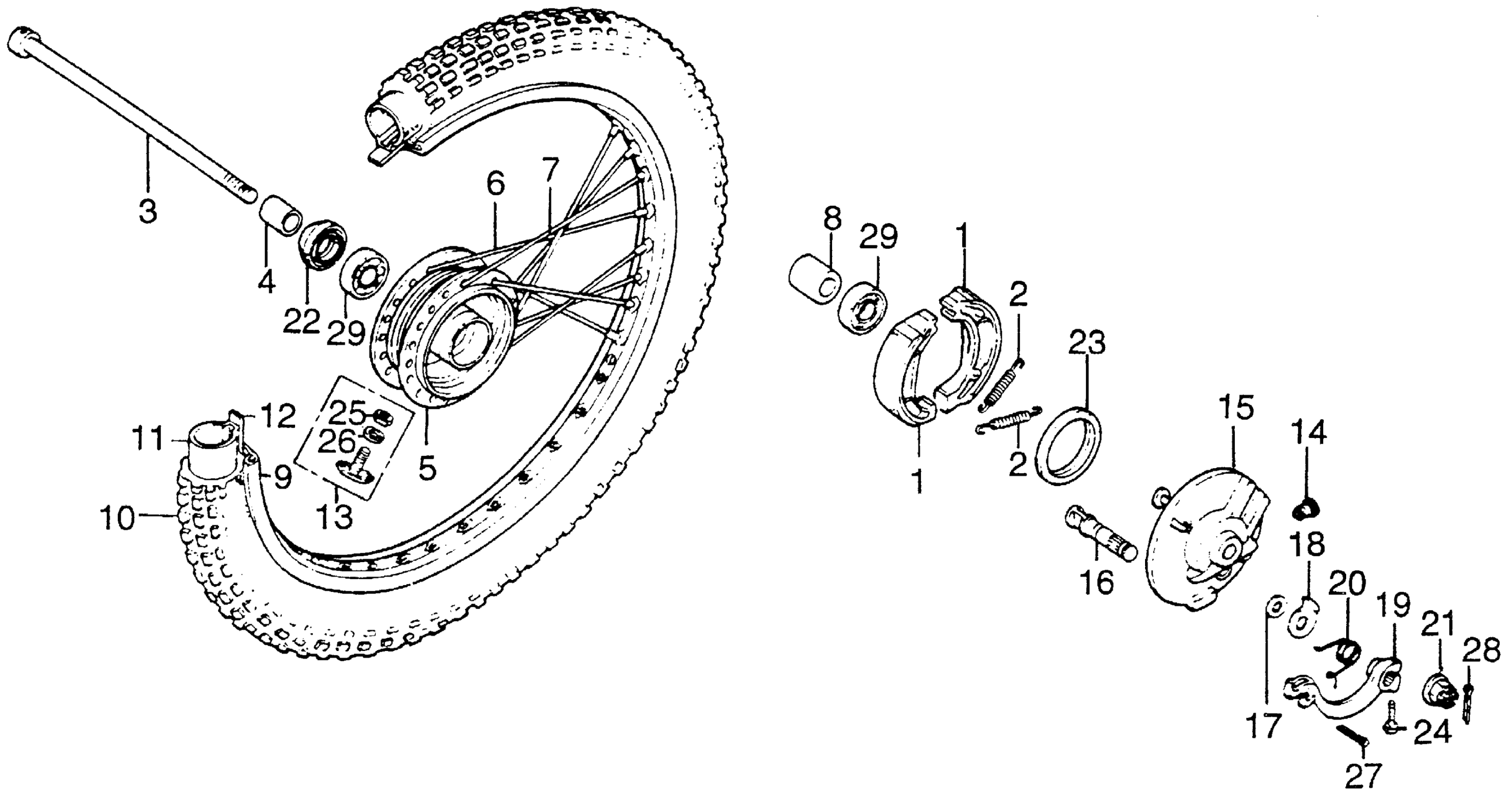

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 FRONT WHEEL + FRONT BRAKE PANEL Diagram

#

Description
Price

1

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

1

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

2

SPRING, BRAKE SHOE (NK)

43151-110-000

$2.92

3

AXLE, FR. WHEEL

44301-KF9-900

Unavailable

3

AXLE, FR. WHEEL This part replaces 44301-110-000.

44301-KF9-900

Unavailable

4

COLLAR, FR. WHEEL SIDE

44311-229-000

$6.58

5

HUB, FR. WHEEL (NOT AVAILABLE)

44601-355-000

Unavailable

6

SPOKE A (11X229) This part replaces 44606-360-305.

97280-31298-10

Unavailable

6

SPOKE A (11X229)

97280-31298-10

Unavailable

7

SPOKE A (11X228.5) This part replaces 44607-360-305.

97465-31297-10

$4.15

7

SPOKE A (11X228.5)

97465-31297-10

$4.15

8

COLLAR, FR. AXLE DISTANCE

44620-030-000

Unavailable

9

RIM, FR. WHEEL (1.40X21) (DAIDO) (NOT AVAILABLE) | Use up to Frame SN 1018591 This part replaces 44701-355-000.

44701-355-013

Unavailable

9

RIM, FR. WHEEL (1.40X21) (DAIDO) (NOT AVAILABLE) | Use up to Frame SN 1018591 This part replaces 44701-355-003.

44701-355-013

Unavailable

9

RIM, FR. WHEEL (1.40X21) (DAIDO) (NOT AVAILABLE)

44701-355-013

Unavailable

10

TIRE, FR. (2.75-21) (BS) (NOT AVAILABLE) | Use up to Frame SN 1018591

44711-329-671

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KB1-911.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-329-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-331-671.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) | Use from Frame SN 1018592 This part replaces 44712-340-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-006.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

12

FLAP, TIRE (1.4X21) (BS) (NA USE ALT:44713-MG7-003)

44713-329-003

Unavailable

12

FLAP, TIRE (21) (NITTO) (NOT AVAILABLE)

44713-331-671

Unavailable

13

STOPPER, BEAD (1.40) (NITTO) (NOT AVAILABLE)

44715-169-700

Unavailable

13

STOPPER, BEAD (1.40) (NITTO) (NOT AVAILABLE) This part replaces 44715-355-006.

44715-169-700

Unavailable

14

PLUG, SPEEDOMETER GEAR BOX (NOT AVAILABLE)

44835-355-670

Unavailable

15

PANEL, FR. BRAKE (NOT AVAILABLE)

45010-355-670

Unavailable

16

CAM, FR. BRAKE (NOT AVAILABLE)

45131-364-670

Unavailable

17

DUST SEAL (NOT AVAILABLE)

45134-121-000

Unavailable

18

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-364-670

Unavailable

19

ARM, FR. BRAKE (NOT AVAILABLE) This part replaces 45410-364-671.

45410-116-670

Unavailable

20

SPRING, FR. BRAKE ARM RETURN

45411-087-820

Unavailable

21

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

21

NUT, AXLE (12MM)

90305-169-000

$6.28

22

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-000.

90755-229-003

$5.05

22

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

22

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

23

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

23

OIL SEAL (47X60X7) | Use from Frame SN 1010001

91251-GK4-003

$9.19

23

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

23

OIL SEAL (47X60X7) (ARAI) | Use from Frame SN 1010001 This part replaces 91251-121-000.

91251-GK4-003

$9.19

23

OIL SEAL (47X60X7) (ARAI) | Use from Frame SN 1010001 This part replaces 91251-121-003.

91251-GK4-003

$9.19

23

OIL SEAL (47X60X7) | Use from Frame SN 1010001

91251-361-005

$13.39

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

25

NUT, HEX. (8MM)

94001-08000-0S

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

PIN, SPLIT (2.0X15)

94201-20150

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

28

PIN, SPLIT (3.0X45)

94201-30450

$1.49

29

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
