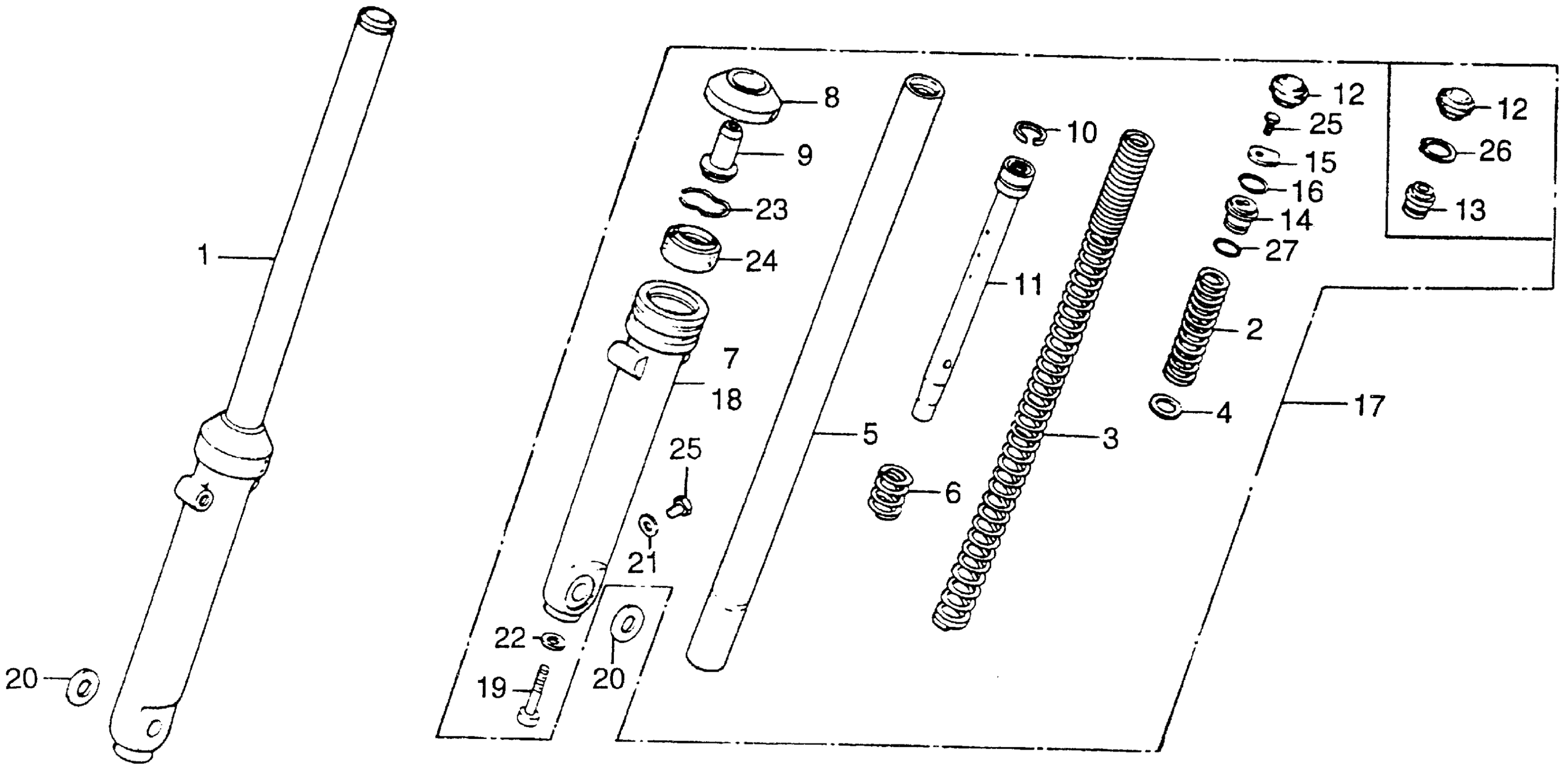

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA) | Use up to Frame SN 1010000 This part replaces 51400-355-023.

51400-355-033

Unavailable

1

FORK ASSY., R. FR. (SHOWA) | Use up to Frame SN 1010000

51400-355-033

Unavailable

1

FORK ASSY., R. FR. (SHOWA)

51400-355-033

Unavailable

2

SPRING A, FR. FORK (NOT AVAILABLE)

51401-355-000

Unavailable

3

SPRING B, FR. FORK (NOT AVAILABLE)

51402-355-000

Unavailable

4

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-362-010

Unavailable

5

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-355-013

Unavailable

6

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

7

CASE, R. FORK (LOWER) (SHOWA) (NOT AVAILABLE)

51421-355-003

Unavailable

8

DUST SEAL (SHOWA) This part replaces 51425-110-003.

91254-436-003

$16.75

8

DUST SEAL (SHOWA)

91254-436-003

$16.75

9

PIECE, OIL LOCKING (NOT AVAILABLE)

51432-331-770

Unavailable

10

RING, PISTON (NOT AVAILABLE)

51437-331-770

Unavailable

11

SEAT (LOWER) (SHOWA)

51440-355-003

Unavailable

12

CAP, FORK PIPE (NOT AVAILABLE) | Use up to Frame SN 1010000 This part replaces 51449-355-003.

51449-355-013

Unavailable

12

CAP, FORK PIPE (NOT AVAILABLE)

51449-355-013

Unavailable

13

SEAT SET, SPRING (UPPER) (NOT AVAILABLE) | Use up to Frame SN 1010000 This part replaces 51454-355-013.

51460-355-305

Unavailable

13

SEAT SET, SPRING (UPPER) (NOT AVAILABLE) | Use up to Frame SN 1010000

51460-355-305

Unavailable

14

SEAT, LOCK (UPPER) (NOT AVAILABLE) | Use from Frame SN 1010001

51454-355-023

Unavailable

15

WASHER, SUPPORT (NOT AVAILABLE) | Use from Frame SN 1010001

51455-355-003

Unavailable

16

RING, STOPPER | Use from Frame SN 1010001

51456-355-003

$7.08

17

FORK ASSY., L. FR. (SHOWA) | Use up to Frame SN 1010000 This part replaces 51500-355-023.

51500-355-033

Unavailable

17

FORK ASSY., L. FR. (SHOWA) | Use up to Frame SN 1010000

51500-355-033

Unavailable

17

FORK ASSY., L. FR. (SHOWA)

51500-355-033

Unavailable

18

CASE, L. FORK (LOWER) (SHOWA)

51521-355-003

Unavailable

19

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

19

BOLT, SOCKET (8X27)

90116-383-721

$5.13

20

WASHER (12MM) (NOT AVAILABLE)

90528-110-000

Unavailable

21

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

23

RING, OIL SEAL STOP

90601-354-000

$5.13

24

OIL SEAL SET (FR FORK)

51495-331-405

$19.75

24

OIL SEAL SET (FR FORK) This part replaces 91255-331-671.

51495-331-405

$19.75

25

BOLT, HEX. (6X8) | Use up to Frame SN 1010000 This part replaces 92000-06008.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) | Use from Frame SN 1010001 This part replaces 92000-06008.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) | Use up to Frame SN 1010000 This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) | Use from Frame SN 1010001 This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) | Use up to Frame SN 1010000

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) | Use from Frame SN 1010001

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) | Use up to Frame SN 1010000 This part replaces 93000-06008.

93000-06008-0A

Unavailable

25

BOLT, HEX. (6X8) | Use up to Frame SN 1010000

93000-06008-0A

Unavailable

25

BOLT, HEX. (6X8) | Use up to Frame SN 1010000

93101-06008-0A

$1.23

25

BOLT, HEX. (6X8) | Use up to Frame SN 1010000 This part replaces 93300-06008.

93000-06008-0A

Unavailable

26

CIRCLIP (INNER) (26MM) | Use up to Frame SN 1010000

94520-26000

$1.85

27

O-RING (19.4X2.8)

94608-40000

$1.49
