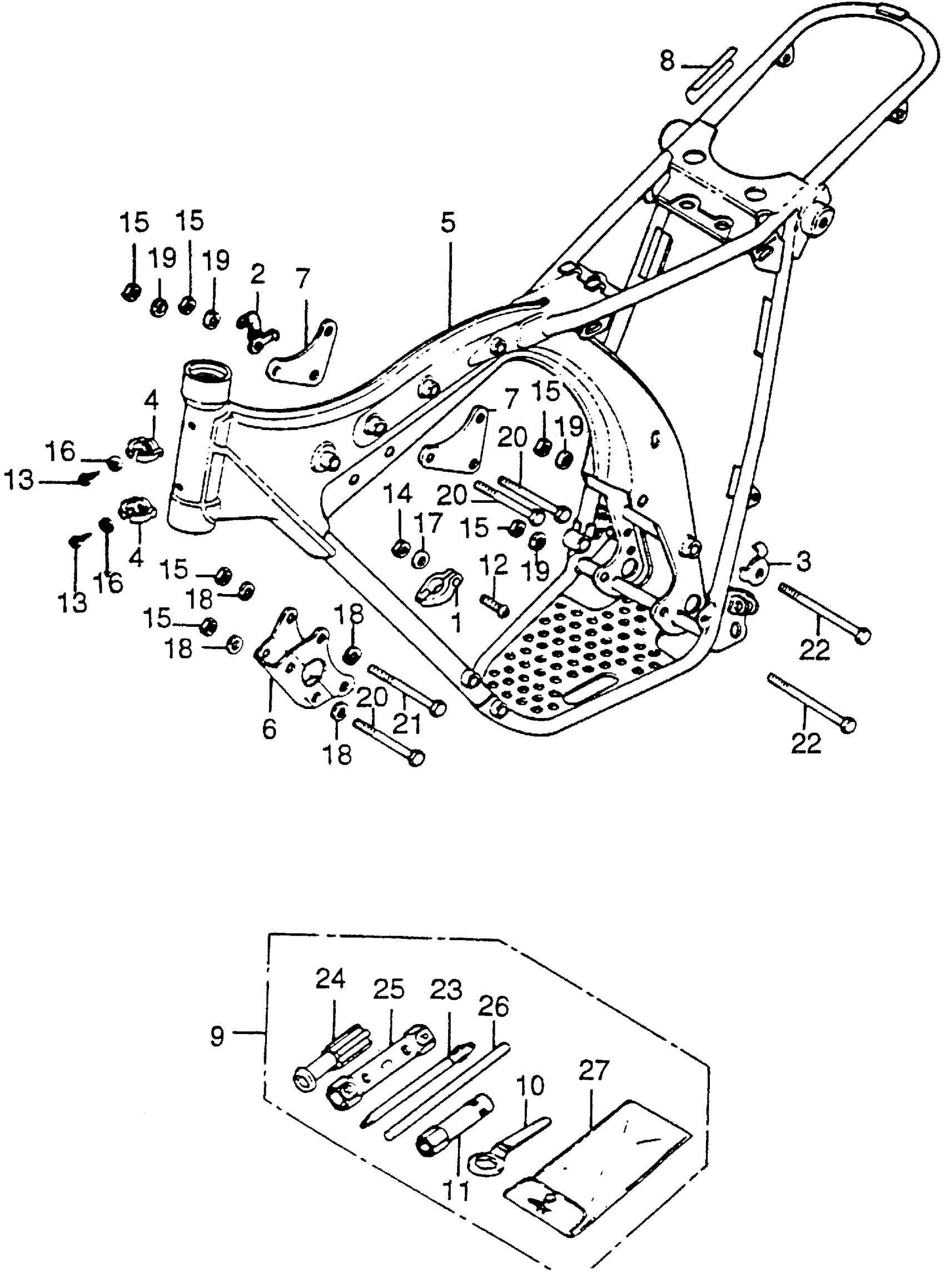

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 FRAME + TOOL Diagram

#

Description
Price

1

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-355-000

Unavailable

2

CLIP, IGNITION CABLE (NOT AVAILABLE)

32906-355-000

Unavailable

3

CLIP, ALTERNATOR WIRE

32907-331-000

Unavailable

4

CLIP, CABLE

32985-355-000

Unavailable

5

FRAME *NH1* (BLACK) (NOT AVAILABLE)

50100-355-710B

Unavailable

6

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-355-000B

Unavailable

7

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50353-107-000

Unavailable

8

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

8

LABEL, MUFFLER CAUTION This part replaces 87506-045-000.

87504-028-670

$2.92

9

TOOL SET (NOT AVAILABLE)

89010-355-710

Unavailable

10

WRENCH, EYE (24MM)

89214-355-710

Unavailable

11

WRENCH, BOX (10MM)

89217-355-000

$7.52

12

SCREW, PAN (5X20)

93500-05020-0A

$1.49

13

SCREW, TAPPING (4X6) (NOT AVAILABLE)

93901-14010

Unavailable

14

NUT, HEX. (5MM)

94001-05000-0S

$2.74

15

NUT, HEX. (8MM)

94030-08000

$1.49

16

WASHER, PLAIN (4MM)

94101-04000

$1.49

17

WASHER, PLAIN (5MM)

94101-05000

$1.49

18

WASHER, PLAIN (8MM)

94101-08000

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49

20

BOLT, HEX. (8X70) This part replaces 95300-08070-00.

95301-08070-00

$2.47

21

BOLT, HEX. (8X90) (NOT AVAILABLE)

95300-08090-00

Unavailable

22

BOLT, HEX. (8X111)

95300-08111-00

$2.92

23

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

24

GRIP, SCREW DRIVER

99003-50000

$3.27

25

WRENCH, BOX (P18X19)

99004-18190

$3.40

26

BAR A, HANDLE

99005-01000

$1.49

27

BAG, TOOL (160MM)

99008-01600

$2.22
