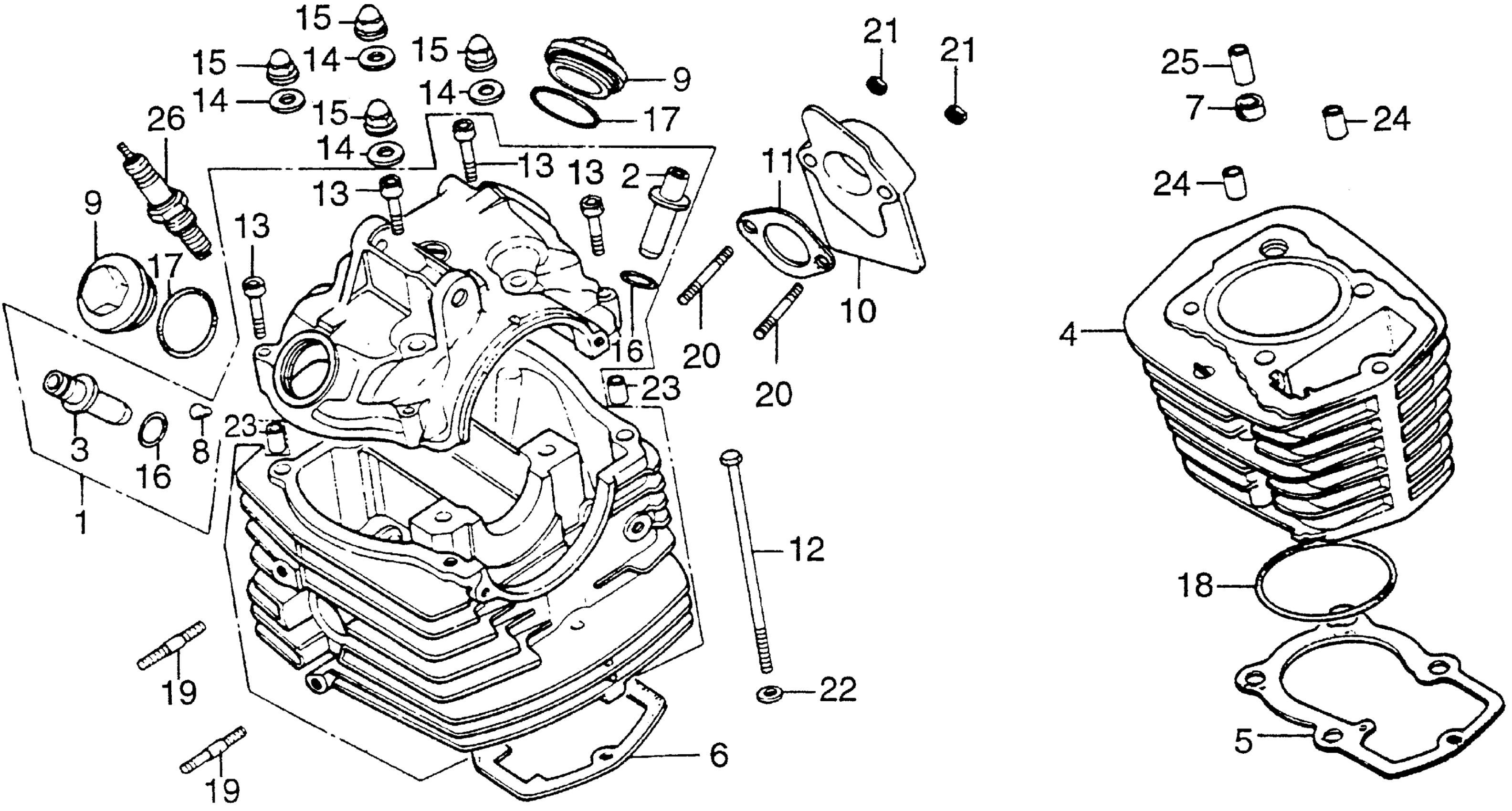

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. This part replaces 12000-324-680.

12000-324-683

Unavailable

1

CYLINDER HEAD ASSY. This part replaces 12000-324-681.

12000-324-683

Unavailable

1

CYLINDER HEAD ASSY. This part replaces 12000-324-682.

12000-324-683

Unavailable

1

CYLINDER HEAD ASSY.

12000-324-683

Unavailable

2

GUIDE, VALVE

12021-107-310

Unavailable

3

GUIDE, EX. VALVE This part replaces 12023-324-310.

12023-439-300

Unavailable

4

CYLINDER | Use up to Engine SN 1012541 This part replaces 12100-383-000.

12100-383-030

Unavailable

4

CYLINDER | Use up to Engine SN 1012541 This part replaces 12100-383-010.

12100-383-030

Unavailable

4

CYLINDER This part replaces 12100-383-010.

12100-383-030

Unavailable

4

CYLINDER | Use up to Engine SN 1012541 This part replaces 12100-383-020.

12100-383-030

Unavailable

4

CYLINDER This part replaces 12100-383-020.

12100-383-030

Unavailable

4

CYLINDER | Use up to Engine SN 1012541

12100-383-030

Unavailable

4

CYLINDER

12100-383-030

Unavailable

5

GASKET, CYLINDER

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-330-305.

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-330-306.

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-365-000.

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-365-306.

12191-KAY-690

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-331-770.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-331-771.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-331-772.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-437-020.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-437-306.

12251-437-P00

Unavailable

7

GASKET, CYLINDER STUD | Use up to Engine SN 1012541 This part replaces 12261-028-000.

12261-105-690

$7.96

7

GASKET, CYLINDER STUD | Use up to Engine SN 1012541

12261-105-690

$7.96

8

RUBBER, OIL SEAL

12271-383-000

$2.92

9

CAP, VALVE ADJ.

12361-383-000

$6.43

10

INSULATOR, CARB This part replaces 16213-355-700.

16213-355-307

Unavailable

11

GASKET, INSULATOR This part replaces 16229-107-000.

16229-107-306

Unavailable

11

GASKET, INSULATOR

16229-107-306

Unavailable

12

BOLT, HS (6MM)

90081-107-000

Unavailable

13

BOLT, SOCKET (6MM)

90081-383-000

$5.66

14

WASHER, SEALING (8MM)

90442-028-000

$1.77

15

NUT, CAP (8MM)

90443-107-000

$2.89

16

O-RING (10X1.6) | Use up to Engine SN 1012541

91301-200-000

$3.01

16

O-RING (10X1.6) | Use from Engine SN 1012542

91301-200-000

$3.01

17

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

18

O-RING (61.8X2.0) | Use up to Engine SN 1012541

91304-286-000

$10.25

19

BOLT, STUD (6X28) This part replaces 90038-250-000.

92900-06028-0B

$1.89

19

BOLT, STUD (6X28) This part replaces 90051-200-000.

92900-06028-0B

$1.89

19

BOLT, STUD (6X35)

92700-06035

$1.89

19

BOLT, STUD (6X28) This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

19

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

19

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

19

BOLT, STUD (6X28)

92900-06028-0B

$1.89

19

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

20

BOLT, STUD (6X50) (SOURCE: VINTAGE PARTS INC.) This part replaces 92700-06050.

92700-06050-0B

Unavailable

20

BOLT, STUD (6X50) (SOURCE: VINTAGE PARTS INC.)

92700-06050-0B

Unavailable

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

PIN, DOWEL (8X14)

94301-08140

$2.25

24

PIN A, DOWEL (10X14)

94301-10140

$2.28

25

PIN A, DOWEL (10X20)

94301-10200

$2.35

26

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

$2.44

26

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

26

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

$2.44

26

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

$2.44

26

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

$2.44

26

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

$2.44
