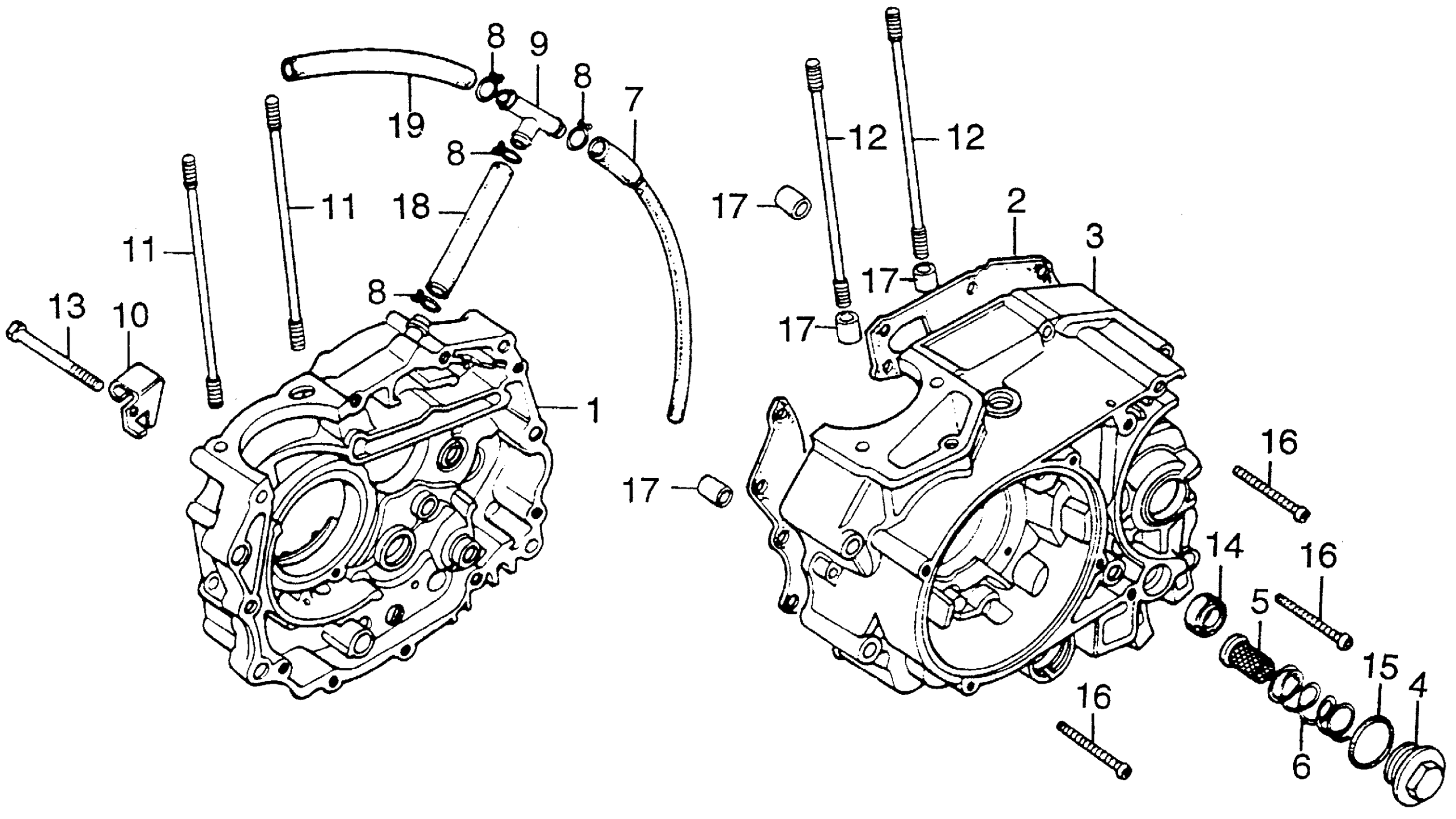

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 CRANKCASES Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-383-000.

11100-383-040

Unavailable

1

CRANKCASE, R. This part replaces 11100-383-020.

11100-383-040

Unavailable

1

CRANKCASE, R. This part replaces 11100-383-030.

11100-383-040

Unavailable

1

CRANKCASE, R.

11100-383-040

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-KY0-600.

11191-KY0-601

$11.18

2

GASKET, CRANKCASE | Use up to Engine SN 1012541 This part replaces 11191-383-000.

11191-KY0-601

$11.18

2

GASKET, CRANKCASE This part replaces 11191-383-010.

11191-KY0-601

$11.18

2

GASKET, CRANKCASE This part replaces 11191-383-306.

11191-KY0-601

$11.18

3

CRANKCASE, L.

11200-355-700

Unavailable

4

CAP, VALVE ADJ.

12361-383-000

$6.14

5

SCREEN, OIL FILTER

15421-107-000

$6.02

6

SPRING, OIL FILTER SCREEN

15426-107-000

$3.47

7

TUBE, BREATHER | Use up to Engine SN 1016423 This part replaces 15761-355-700.

15761-355-701

Unavailable

7

TUBE, BREATHER

15761-355-701

Unavailable

8

CLIP, BREATHER TUBE

15772-292-010

$2.80

9

JOINT, BREATHER (THREE-WAY)

15772-376-000

$18.01

10

HOLDER, CLUTCH CABLE (NOT AVAILABLE)

22838-355-000

Unavailable

11

BOLT A, CYLINDER STUD This part replaces 90031-107-000.

90031-107-010

$9.38

11

BOLT A, CYLINDER STUD

90031-107-010

$9.38

12

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90032-107-000.

90032-107-010

Unavailable

13

BOLT, HEX. (6X55) (NOT AVAILABLE)

90081-355-000

Unavailable

14

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$2.87

15

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.80

16

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.22

16

SCREW, PAN (6X50)

93500-06050-0A

$1.22

17

PIN A, DOWEL (10X14)

94301-10140

$2.80

18

BULK HOSE, VACUUM (11X1000) (11X130)

95005-11001-30M

$23.45

19

BULK HOSE, VACUUM (11X1000) (11X190)

95005-11001-30M

$23.45
