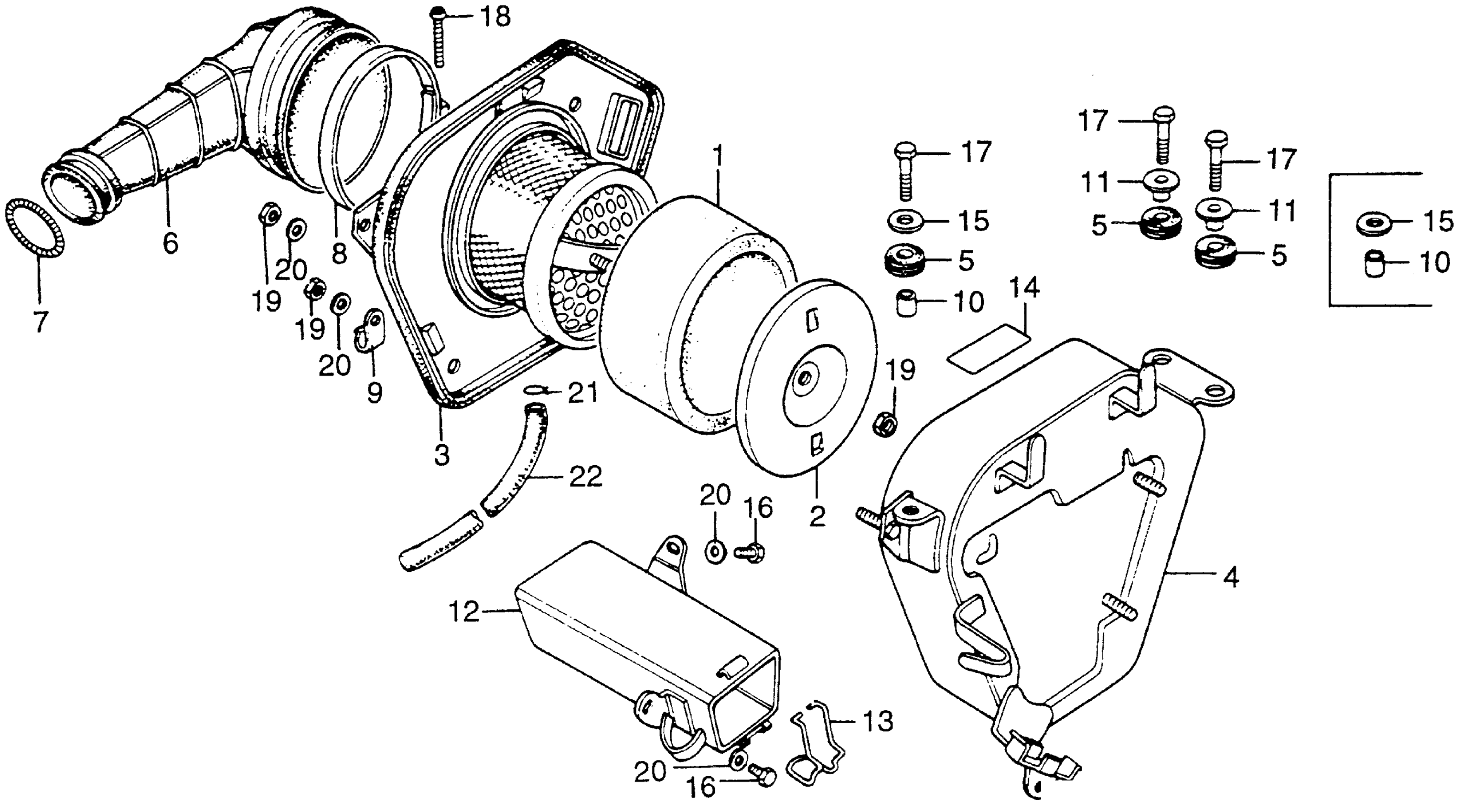

Honda TL125SA (76) TRIALS 125, JPN, VIN# TL125S-1000417 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-107-020

$6.78

2

CAP, AIR CLEANER ELEMENT

17212-107-780

Unavailable

3

COVER ASSY., AIR CLEANER HOUSING (NOT AVAILABLE)

17228-355-000

Unavailable

4

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-355-670

Unavailable

5

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

6

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-355-000

Unavailable

7

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

7

BAND A, AIR CLEANER IN. PIPE This part replaces 17255-028-000.

17231-051-000

$4.63

8

BAND, AIR CLEANER CONNECTING TUBE

17255-107-000

Unavailable

9

CLIP, BREATHER TUBE (NOT AVAILABLE)

32909-128-000

Unavailable

10

COLLAR, RR. TURN SIGNAL STAY | Use up to Frame SN 1010000

33603-053-650

$1.64

11

COLLAR, FR. FENDER (WHITE) | Use from Frame SN 1010001 This part replaces 61104-357-000.

61104-428-010

$4.42

11

COLLAR, FR. FENDER (WHITE) | Use from Frame SN 1010001 This part replaces 61104-428-000.

61104-428-010

$4.42

11

COLLAR, RR. FENDER | Use from Frame SN 1010001

61105-428-000

Unavailable

12

BOX, TOOL (NOT AVAILABLE)

83500-355-000

Unavailable

13

SPRING, TOOL BOX CAP (NOT AVAILABLE)

83510-355-000

Unavailable

14

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

15

WASHER, WHEEL (6MM) | Use up to Frame SN 1010000

90563-355-000

$3.13

16

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

17

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

17

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

18

SCREW, PAN (4X25)

93500-04025-0A

$1.93

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

CLIP, TUBE (C11)

95002-70000

$1.56

22

BULK HOSE, VINYL (7X11X8000) (7X11X200)

95003-19008-10M

Unavailable
