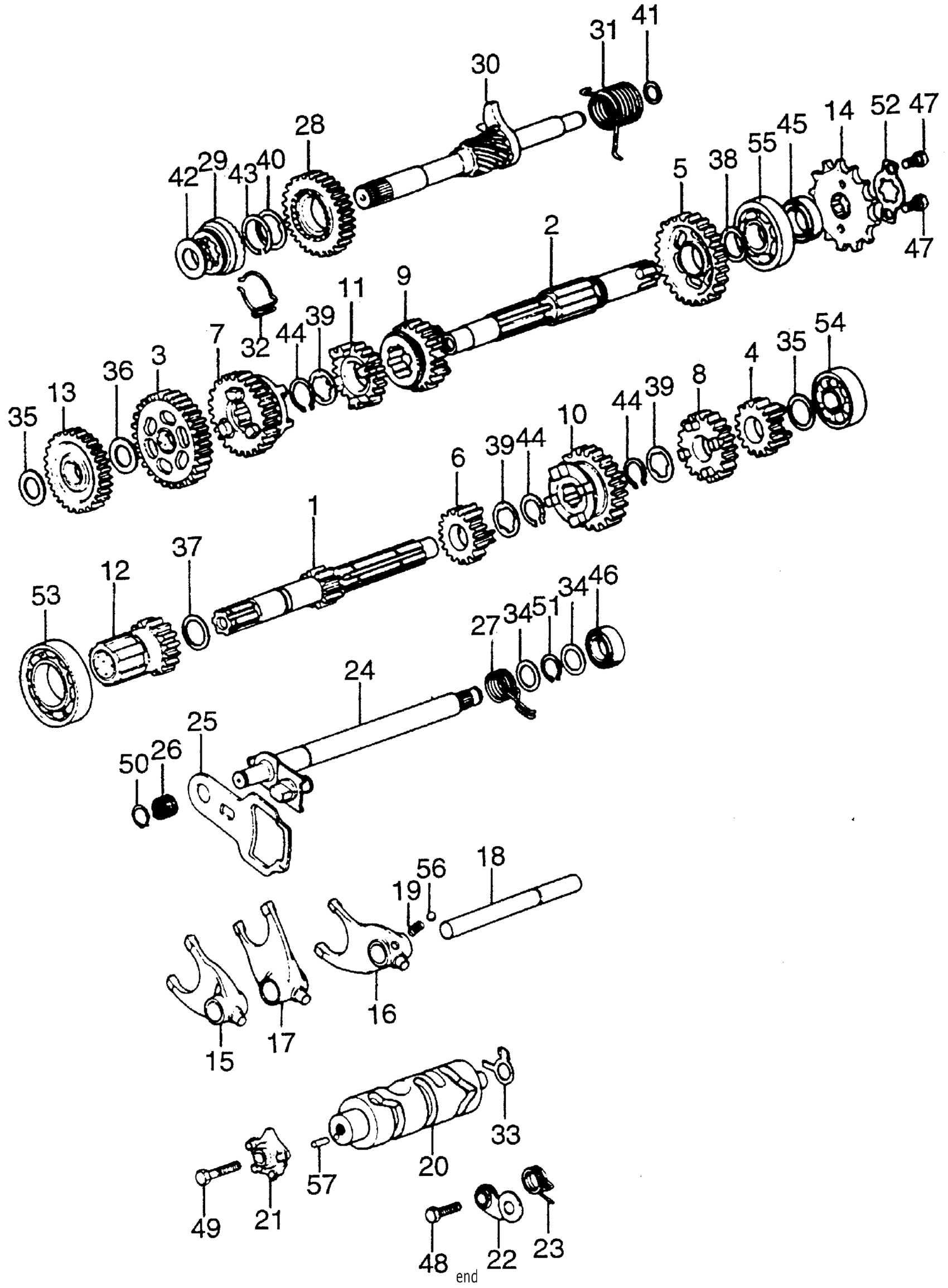

Honda TL125K2A MOTORCYCLE, JPN, VIN# TL125-1200001 GEARSHIFT + TRANSMISSION + KICK STARTER Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-355-000.

23211-383-003

Unavailable

1

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-383-000.

23211-383-003

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-000.

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-010.

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-107-020

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23421-355-000

Unavailable

4

GEAR, MAINSHAFT SECOND (16T) (NOT AVAILABLE)

23441-355-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (34T) (NOT AVAILABLE)

23451-355-000

Unavailable

6

GEAR, MAINSHAFT THIRD (19T) (NOT AVAILABLE)

23461-355-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (30T)

23471-355-000

Unavailable

8

GEAR, MAINSHAFT FOURTH (25T)

23481-355-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (25T) (NOT AVAILABLE)

23491-355-000

Unavailable

10

GEAR, MAINSHAFT TOP (29T)

23501-355-010

Unavailable

11

GEAR, COUNTERSHAFT TOP (21T) (NOT AVAILABLE)

23511-355-000

Unavailable

12

GEAR, STARTER (19T) This part replaces 23520-107-000.

23520-383-000

Unavailable

12

GEAR, STARTER (19T)

23520-383-000

Unavailable

13

GEAR, IDLE STARTER (29T) (NOT AVAILABLE) This part replaces 23530-107-000.

23530-383-000

Unavailable

13

GEAR, IDLE STARTER (29T) (NOT AVAILABLE)

23530-383-000

Unavailable

14

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

14

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

15

FORK, R. GEARSHIFT

24211-107-000

$52.69

16

FORK, L. GEARSHIFT

24221-355-000

Unavailable

17

FORK, CENTER GEARSHIFT This part replaces 24231-107-000.

24231-107-010

Unavailable

17

FORK, CENTER GEARSHIFT

24231-107-010

Unavailable

18

SHAFT, GEARSHIFT FORK GUIDE

24241-107-000

Unavailable

19

SPRING, BALL SETTING (NOT AVAILABLE)

24271-355-000

Unavailable

20

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-355-000

Unavailable

21

CAM, GEARSHIFT

24411-KCN-000

$28.74

21

CAM, GEARSHIFT This part replaces 24411-107-000.

24411-KCN-000

$28.74

21

CAM, GEARSHIFT This part replaces 24411-107-003.

24411-KCN-000

$28.74

22

STOPPER, GEARSHIFT DRUM

24430-324-000

Unavailable

23

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-107-761

Unavailable

24

SPINDLE, GEARSHIFT

24610-107-760

Unavailable

25

PLATE, GEARSHIFT

24621-107-760

$13.51

26

SPRING, GEARSHIFT PLATE

24631-107-000

$2.92

27

SPRING, GEARSHIFT RETURN

24651-107-000

$5.81

28

PINION, KICK STARTER (30T)

28211-107-000

Unavailable

28

PINION, KICK STARTER (29T)

28211-383-000

Unavailable

29

RATCHET, KICK STARTER DRIVE

28221-107-010

Unavailable

30

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-365-000

Unavailable

31

SPRING, KICK STARTER

28261-107-000

Unavailable

32

SPRING, STARTER PINION FRICTION (NOT AVAILABLE)

28271-107-000

Unavailable

33

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.76

33

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.76

34

WASHER, THRUST (14MM)

90451-001-000

$3.67

35

WASHER, THRUST (15MM)

90451-107-000

$1.49

36

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

37

WASHER A, THRUST (20MM)

90453-107-000

$2.25

38

WASHER, THRUST (20MM)

90454-107-000

$1.80

39

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

40

WASHER, THRUST (25MM) (NOT AVAILABLE)

90458-107-000

Unavailable

41

WASHER, THRUST (12MM)

90459-107-000

$1.49

42

WASHER, THRUST (16MM)

90462-107-000

$2.11

43

CIRCLIP (25MM)

90601-107-000

$3.74

44

SET-RING (20MM)

90605-200-000

$2.92

45

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

45

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

45

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

45

OIL SEAL (20X34X7)

91201-030-015

Unavailable

45

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

45

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

45

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

46

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

47

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

47

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

48

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

48

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

49

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

49

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

50

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

51

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

52

PLATE B, FIXING

95014-92100

$1.49

53

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

53

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

54

BEARING, RADIAL BALL (6202) This part replaces 96100-62020.

96100-62020-00

$9.18

54

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

55

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

55

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

56

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

57

ROLLER (4X10)

96220-40100

$1.49
