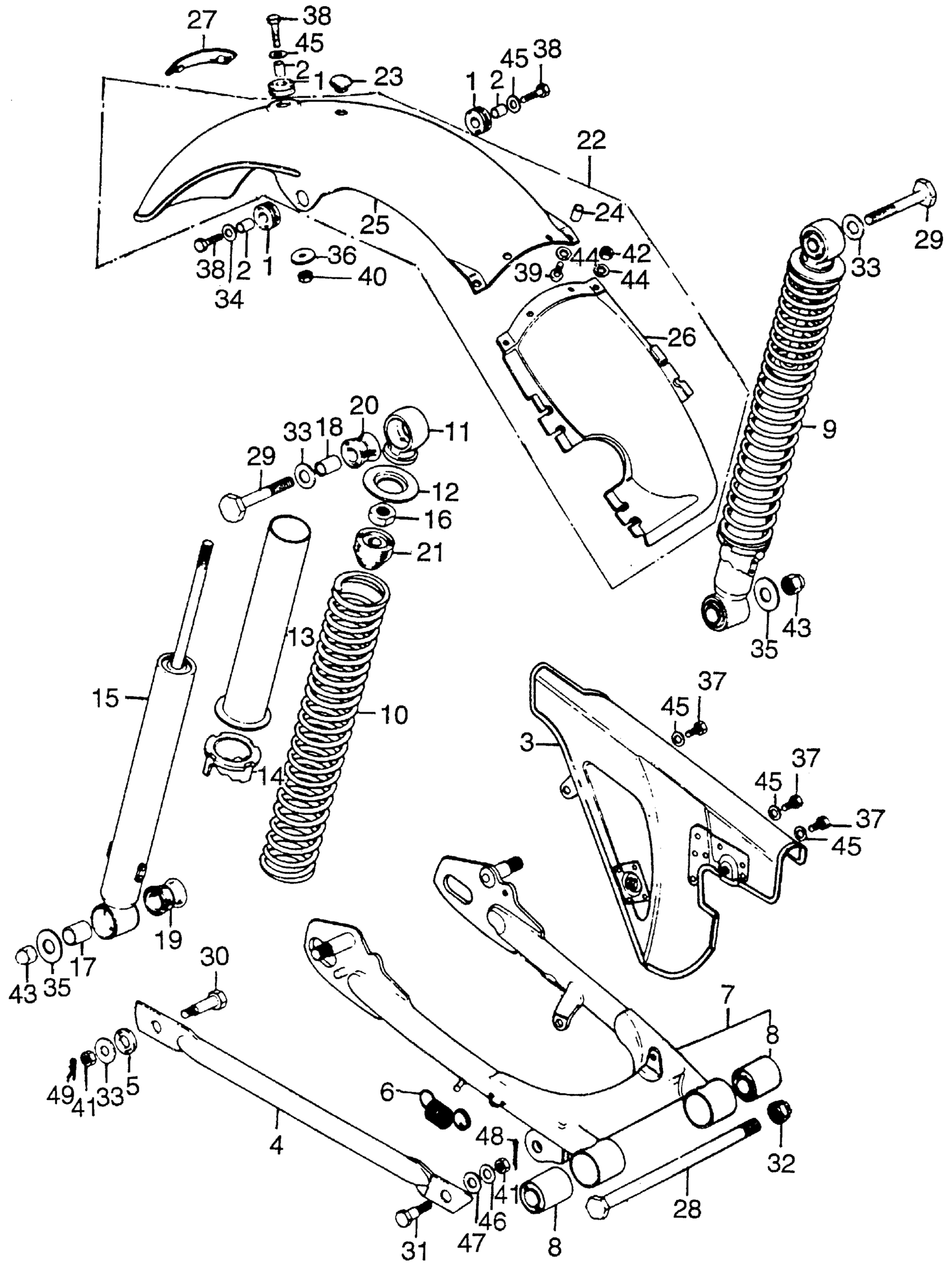

Honda TL125A MOTORCYCLE, JPN, VIN# TL125-1000003 REAR SHOCK ABSORBER + REAR FENDER + SWINGARM Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

3

CASE, DRIVE CHAIN *NH19M* (DARK GRAY METALLIC) (NOT AVAILABLE)

40510-355-000CB

Unavailable

4

ARM, RR. BRAKE STOPPER *NH19M* (DARK GRAY METALLIC) (NOT AVAILABLE)

43431-355-000CB

Unavailable

5

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

6

SPRING, STEP STOPPER (NOT AVAILABLE)

50660-355-000

Unavailable

7

SWINGARM, RR. *NH19M* (DARK GRAY METALLIC) (NOT AVAILABLE)

52100-355-670CB

Unavailable

8

BUSH, SWINGARM PIVOT This part replaces 52108-028-000.

52147-028-300

$17.90

8

BUSH, SWINGARM PIVOT

52147-028-300

$17.90

9

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) This part replaces 52400-355-000.

52400-355-700

Unavailable

10

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-355-000

Unavailable

11

JOINT (UPPER) (SHOWA)

52403-331-003

Unavailable

12

STOPPER, SPRING SEAT (NOT AVAILABLE)

52405-355-000

Unavailable

13

GUIDE, SPRING

52406-GM2-003

Unavailable

13

GUIDE, SPRING This part replaces 52406-355-000.

52406-GM2-003

Unavailable

14

ADJUSTER, RR. SHOCK ABSORBER SPRING

52422-455-000

Unavailable

15

DAMPER, RR. (NOT AVAILABLE) This part replaces 52430-355-000.

52430-355-010

Unavailable

16

NUT, LOCK (9MM) (NOT AVAILABLE)

52482-331-003

Unavailable

17

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-056-000

$4.28

18

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

19

RUBBER B, JOINT

52488-331-003

Unavailable

20

RUBBER A, JOINT (SHOWA)

52489-331-003

$2.03

21

RUBBER, STOPPER

52517-331-003

Unavailable

22

FENDER, RR. *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

80100-355-670MA

Unavailable

23

PLUG, HOLE (10MM) This part replaces 80102-355-670.

91601-SR3-000

Unavailable

23

PLUG

91601-SR3-000

Unavailable

24

COLLAR (NOT AVAILABLE)

80105-355-000

Unavailable

25

FENDER A *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

80100-355-000MA

Unavailable

25

FENDER A *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE) This part replaces 80107-355-000MA.

80100-355-000MA

Unavailable

26

FENDER B, RR. (NOT AVAILABLE)

80108-355-000

Unavailable

27

PLUG, RR. FENDER (NOT AVAILABLE)

80109-355-670

Unavailable

28

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-355-000

Unavailable

29

BOLT, RR. SHOCK ABSORBER (NOT AVAILABLE)

90122-355-000

Unavailable

30

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

30

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

31

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

32

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

33

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

34

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

35

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

36

WASHER, WHEEL (6MM)

90563-355-000

$3.13

37

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

37

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

37

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

38

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

38

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

39

SCREW, PAN (5X10)

93500-05010-0A

$1.49

40

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

40

NUT, HEX. (6MM)

94001-06200-0S

$1.49

40

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

41

NUT, HEX. (8MM)

94001-08000-0S

$1.49

42

NUT, HEX. (5MM)

94002-05000-0S

$1.49

43

NUT, CAP (10MM)

94021-10020-0S

$2.08

44

WASHER, PLAIN (5MM)

94101-05000

$1.49

45

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

45

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

45

WASHER, PLAIN (6MM)

94101-06800

$1.49

46

WASHER, PLAIN (8MM)

94101-08000

$1.49

47

WASHER, SPRING (8MM)

94111-10000

$1.49

48

PIN, COTTER (2.0X15)

94201-20150

$1.49

49

PIN, LOCK (8MM)

94251-08000

$1.49
