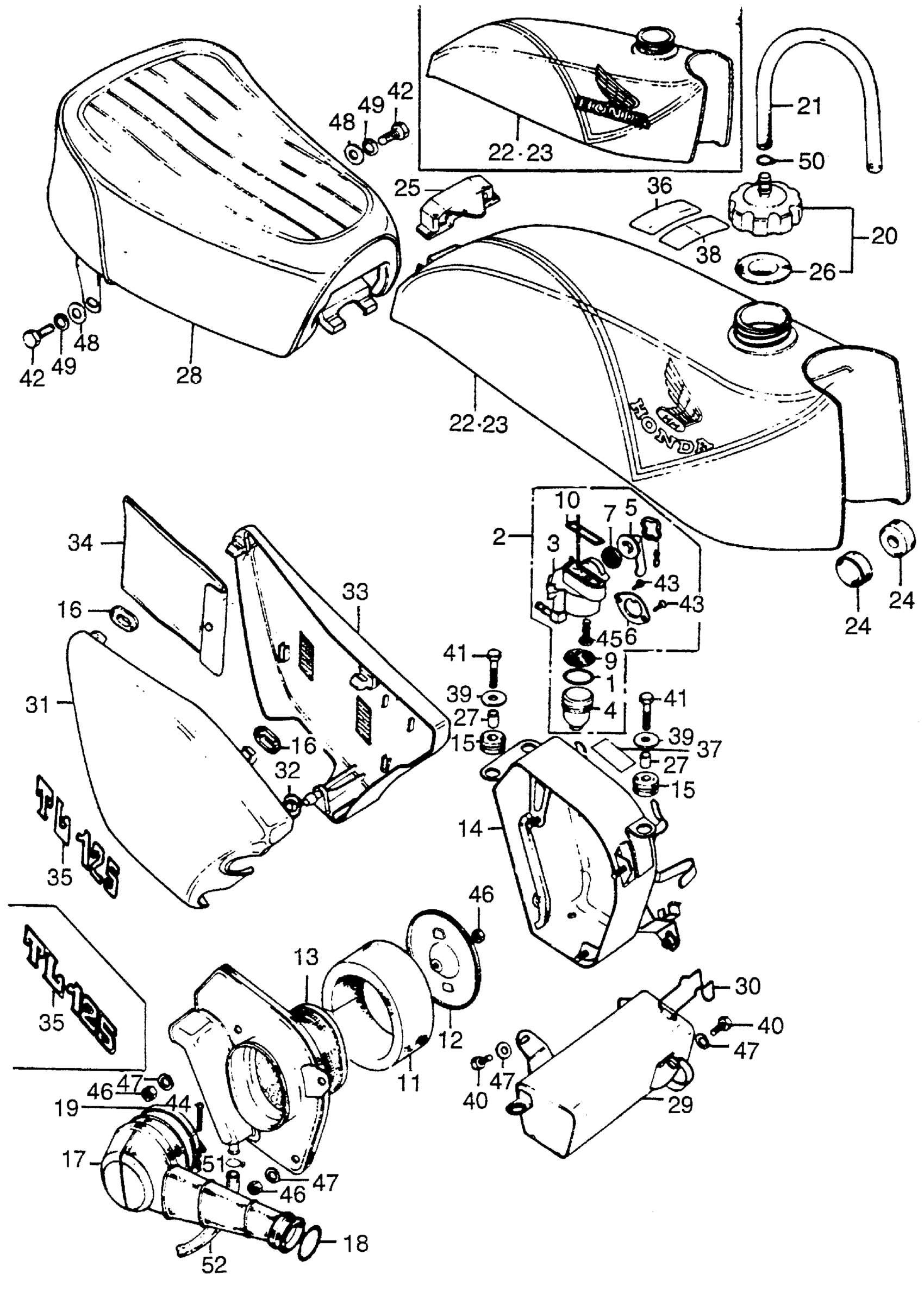

Honda TL125A MOTORCYCLE, JPN, VIN# TL125-1000003 FUEL TANK + SEAT + AIR CLEANER Diagram

#

Description
Price

1

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

2

PETCOCK ASSY. (NOT AVAILABLE)

16950-355-005

Unavailable

3

BODY SET, PETCOCK (NOT AVAILABLE)

16951-355-005

Unavailable

4

CUP, FUEL STRAINER

16952-028-000

Unavailable

5

LEVER, PETCOCK

16953-028-004

Unavailable

6

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

7

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

7

GASKET, VALVE

16957-ZE1-812

$3.08

8

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

8

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

8

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

8

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

9

SCREEN, FUEL STRAINER

16957-028-000

$16.22

10

GASKET, PETCOCK BODY

16997-273-006

$6.74

11

ELEMENT, AIR CLEANER

17211-107-020

$6.78

12

CAP, AIR CLEANER ELEMENT

17212-107-780

Unavailable

13

COVER ASSY., AIR CLEANER HOUSING (NOT AVAILABLE)

17228-355-000

Unavailable

14

HOUSING, AIR CLEANER

17230-355-670

Unavailable

15

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

16

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

17

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-355-000

Unavailable

18

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

18

BAND A, AIR CLEANER IN. PIPE This part replaces 17255-028-000.

17231-051-000

$4.63

19

BAND, AIR CLEANER CONNECTING TUBE

17255-107-000

Unavailable

20

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17510-355-000.

17510-355-010

Unavailable

20

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17510-355-010

Unavailable

21

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-357-000

Unavailable

22

TANK ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17530-355-000EC

Unavailable

24

RUBBER, FR. FUEL TANK

17611-331-000

$4.22

25

RUBBER, RR. FUEL TANK

17613-355-000

$17.07

26

GASKET, FUEL CAP This part replaces 17624-355-000.

17624-896-750

Unavailable

26

GASKET, FUEL CAP This part replaces 17624-355-010.

17624-896-750

Unavailable

26

GASKET, FUEL CAP

17624-896-750

Unavailable

27

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

28

SEAT

77100-KB2-000

Unavailable

28

SEAT This part replaces 77100-355-000A.

77100-KB2-000

Unavailable

29

BOX, TOOL (NOT AVAILABLE)

83500-355-000

Unavailable

30

SPRING, TOOL BOX CAP (NOT AVAILABLE)

83510-355-000

Unavailable

31

COVER, R. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

83540-KB2-000MA

Unavailable

31

COVER, R. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE) This part replaces 83540-355-000MA.

83540-KB2-000MA

Unavailable

31

COVER, R. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE) This part replaces 83540-355-700MA.

83540-KB2-000MA

Unavailable

32

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

33

COVER, L. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

83640-KB2-000MA

Unavailable

33

COVER, L. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE) This part replaces 83640-355-000MA.

83640-KB2-000MA

Unavailable

33

COVER, L. SIDE *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE) This part replaces 83640-355-700MA.

83640-KB2-000MA

Unavailable

34

BAG, OWNER'S MANUAL

83642-355-000

$26.87

35

EMBLEM, SIDE COVER *A100* (RED) (NOT AVAILABLE)

87128-355-670SB

Unavailable

36

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 87504-045-020.

87504-045-020S

Unavailable

36

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 87504-045-020B.

87504-045-020S

Unavailable

36

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

87504-045-020S

Unavailable

37

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

38

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

39

WASHER, WHEEL (6MM)

90563-355-000

$3.13

40

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

40

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

41

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

41

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

42

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

42

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

43

SCREW, PAN (3X6)

93500-03006-0A

$1.49

44

SCREW, PAN (4X25)

93500-04025-0A

$1.93

45

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

45

SCREW, PAN (6X16)

93500-06016-0A

$1.49

46

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

46

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

46

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

46

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

46

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

46

NUT, HEX. (6MM)

94001-06200-0S

$1.49

46

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

47

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

47

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

47

WASHER, PLAIN (6MM)

94101-06800

$1.49

48

WASHER, PLAIN (8MM)

94101-08000

$1.49

49

WASHER, SPRING (8MM)

94111-08000

$1.49

50

CLIP, TUBE (B10)

95002-02100

$1.90

51

CLIP, TUBE (C11)

95002-70000

$1.56

52

TUBE, VINYL (7X11X200) (NOT AVAILABLE)

95003-19020-20

Unavailable
