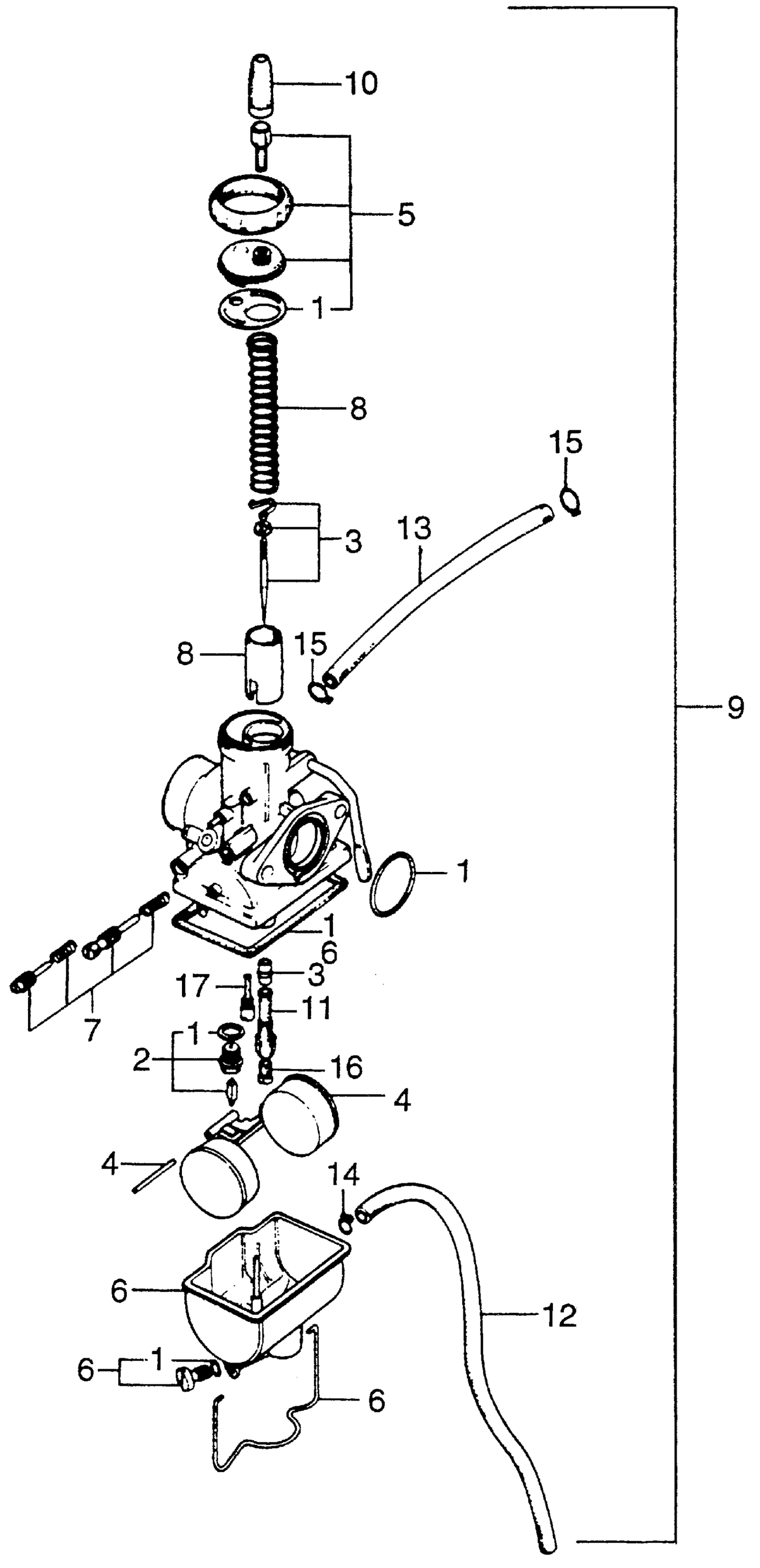

Honda TL125A MOTORCYCLE, JPN, VIN# TL125-1000003 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-304-305

$19.82

1

GASKET SET This part replaces 16010-355-004.

16010-304-305

$19.82

2

VALVE SET, FLOAT

16011-355-004

$20.89

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-355-004

Unavailable

4

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

4

FLOAT SET

16013-116-700

$28.61

4

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

5

TOP SET

16014-116-700

Unavailable

5

TOP SET This part replaces 16014-116-704.

16014-116-700

Unavailable

5

TOP SET This part replaces 16014-306-004.

16014-116-700

Unavailable

6

CHAMBER SET, FLOAT

16015-355-004

Unavailable

7

SCREW SET A

16016-046-004

Unavailable

8

VALVE SET B, THROTTLE (NOT AVAILABLE)

16027-304-004

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-355-004.

16100-355-702

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-355-700.

16100-355-702

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-355-702

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

10

CAP, CABLE SEALING

16118-166-004

$8.08

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-107-014

Unavailable

12

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

13

BULK HOSE, FUEL (4.5X3000) (4.5X120)

95001-45003-60M

$36.67

14

CLIP, TUBE (B7)

95002-02070

$1.80

15

CLIP, TUBE (B8)

95002-02080

$1.80

16

JET, MAIN (#95)

99114-246-0950

$8.10

17

JET, SLOW (#38) (NOT AVAILABLE)

99124-089-0380

Unavailable
