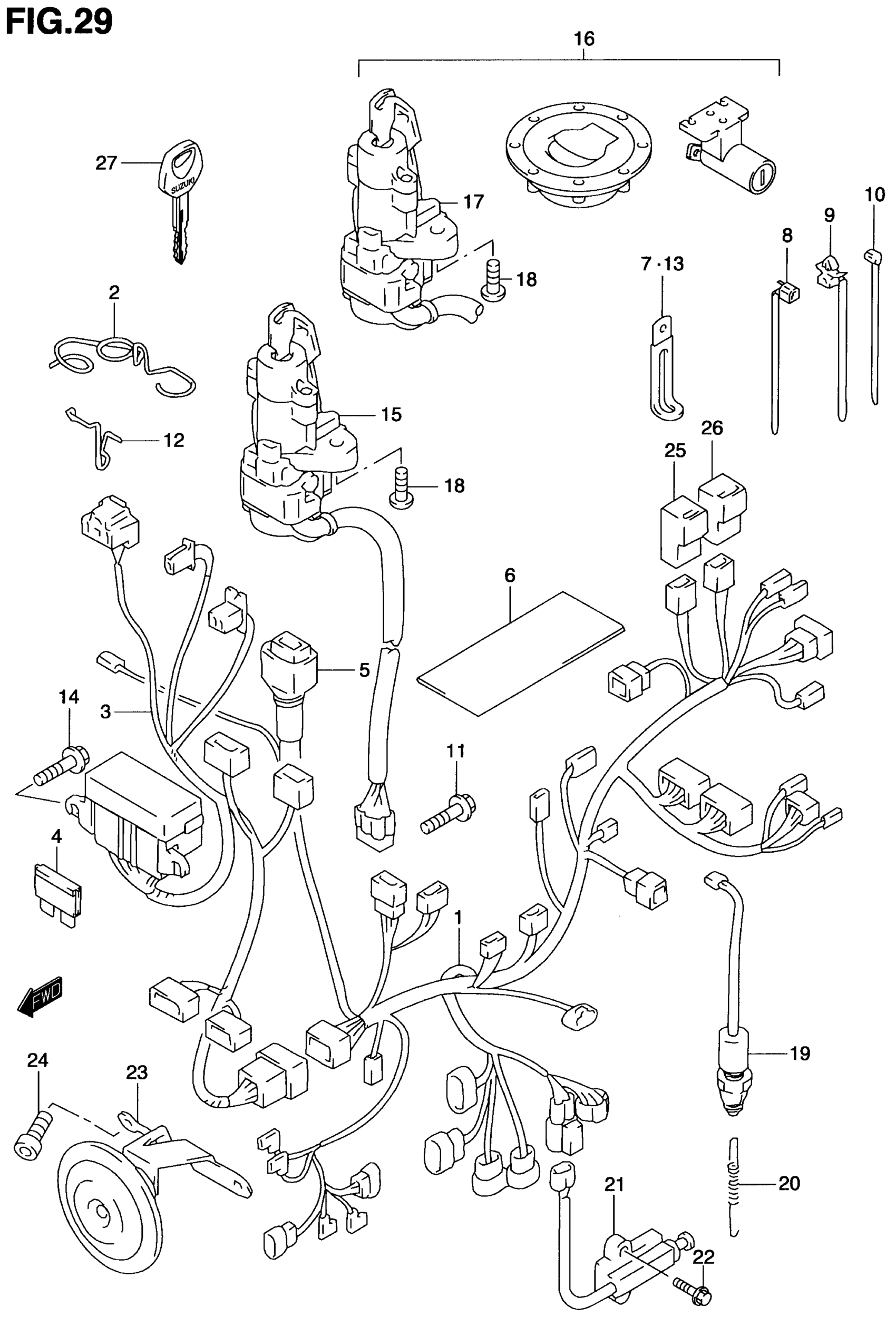

Suzuki TL1000S (2001) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | MODEL V

36610-02F00

Unavailable

1

HARNESS, WIRING NO.1 | MODEL W/X/Y/K1

36610-02F10

Unavailable

2

GUIDE, WIRING HARNESS

36619-33E00

Unavailable

3

HARNESS, WIRING NO.2 | Includes Item(s) 4 - 5

36620-02F10

Unavailable

4

FUSE (10A)

09481-10101

$2.07

4

FUSE (15A)

09481-15101

$2.53

5

COVER, SPEEDOMETER COUPLER

36618-33E00

$8.77

6

PROTECTOR, WIRING HARNESS | 35X170

36920-14D00

$7.77

7

CLAMP (L:60)

09404-06429

$1.83

7

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

8

CLAMP (L:95)

09407-11401

$2.63

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:235)

09407-25401

$4.66

9

CLAMP (L:90)

09407-11402

$1.80

9

CLAMP This part replaces 09407-17401.

09407-17402

$3.93

9

CLAMP (L:165)

09407-18402

$2.19

10

CLAMP (L:145)

09407-14407

$3.57

11

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

12

STOPPER, FUSE BOX

36745-33E00

Unavailable

13

CLAMP | MODEL V This part replaces 09404-06431.

09404-06039

$1.74

13

CLAMP(L:80) | MODEL W/X/Y/K1 ?09404-06433 This part replaces 09404-06434.

09404-06036

$1.74

14

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

15

LOCK ASSY, STEERING | MODEL V

37100-33E01

Unavailable

16

LOCK SET | MODEL V/W/X/Y/K1

37000-02830

Unavailable

16

LOCK SET | MODEL V/W/X/Y/K1 E33; Includes Item(s) 17

37000-02840

Unavailable

17

LOCK ASSY, STEERING | MODEL W/X/Y

37100-02F00

Unavailable

18

SCREW (8X20)

09139-08016

$3.37

19

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

20

SPRING

09443-06012

$3.16

21

SWITCH ASSY,SID This part replaces 37840-26X50.

37840-26X52

$74.31

22

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

23

HORN ASSY

38500-02F10

Unavailable

24

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

25

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

26

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

27

KEY, BLANK | OPT

37146-33E00

$21.21
