Description

Price

1

CASE,WATER PUMP | MODEL V This part replaces 17410-02F00.

17410-02F01

Unavailable

1

CASE, WATER PUM | MODEL W/X/Y/K1 This part replaces 17410-02F10.

17410-02F30

Unavailable

2

IMPELLER

17491-02F00

$32.57

2A

WASHER, IMPELLER

17533-02F00

$3.35

3

.SEAL,MECHANICAL | MODEL V This part replaces 17470-02F00.

17470-02F11

$29.22

3

.SEAL,MECHANICAL | MODEL W/X/Y/K1 This part replaces 17470-02F10.

17470-02F11

$29.22

4

OIL SEAL

17461-02F00

$7.06

5

O RING

17435-02F00

$10.62

6

SCREW

01547-06307

$2.03

7

BOLT

01547-06557

$2.32

8

BOLT (6X13) | ~E.NO.111570

09100-06099

$2.00

8

BOLT (6X13) | E.NO.111571~

09100-06162

$2.85

9

LOCK WASHER

09164-06006

$2.61

10

GASKET

09168-06025

$2.92

11

PIN

04211-09149

$1.65

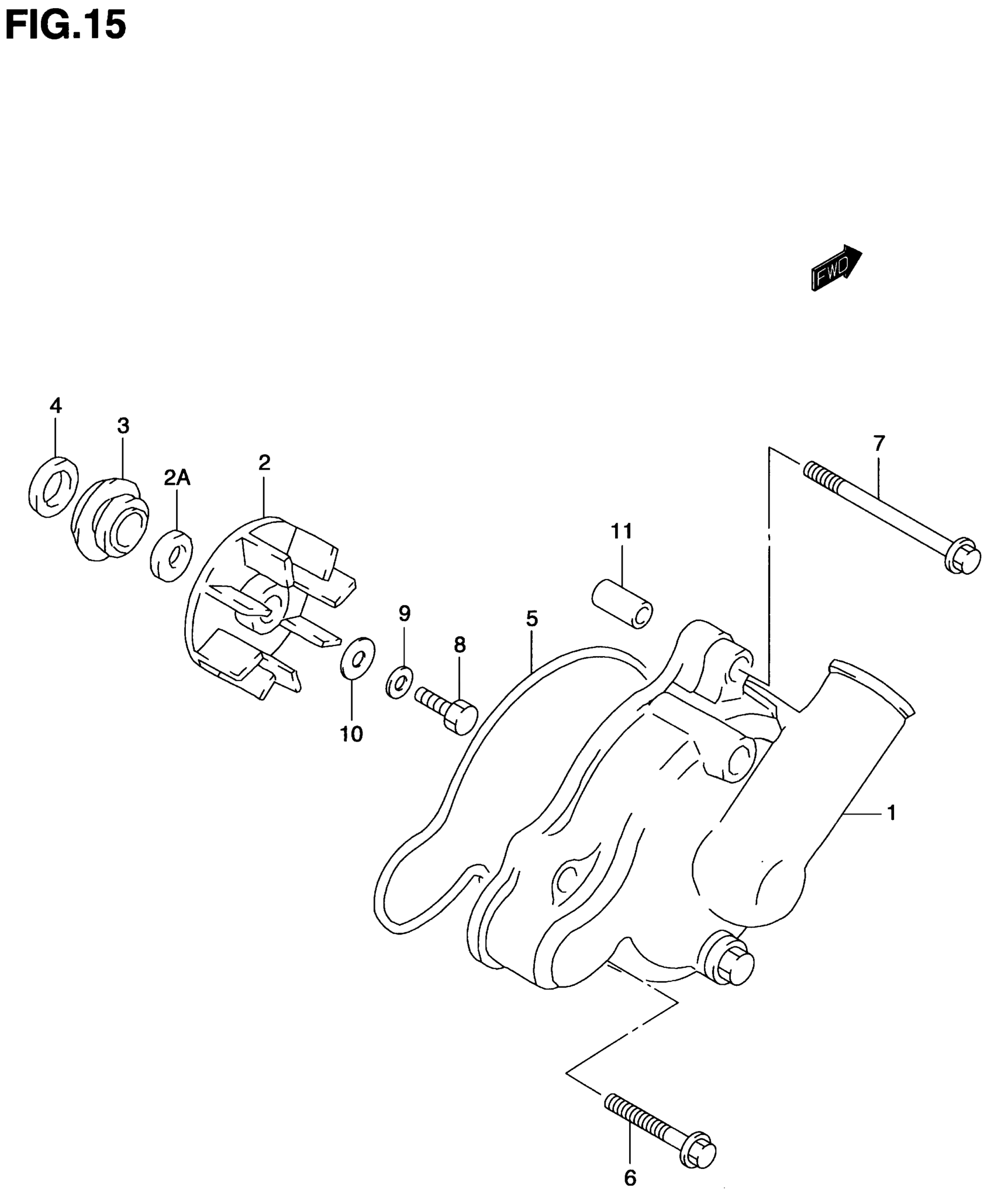

Suzuki TL1000S (2001) WATER PUMP Diagram
