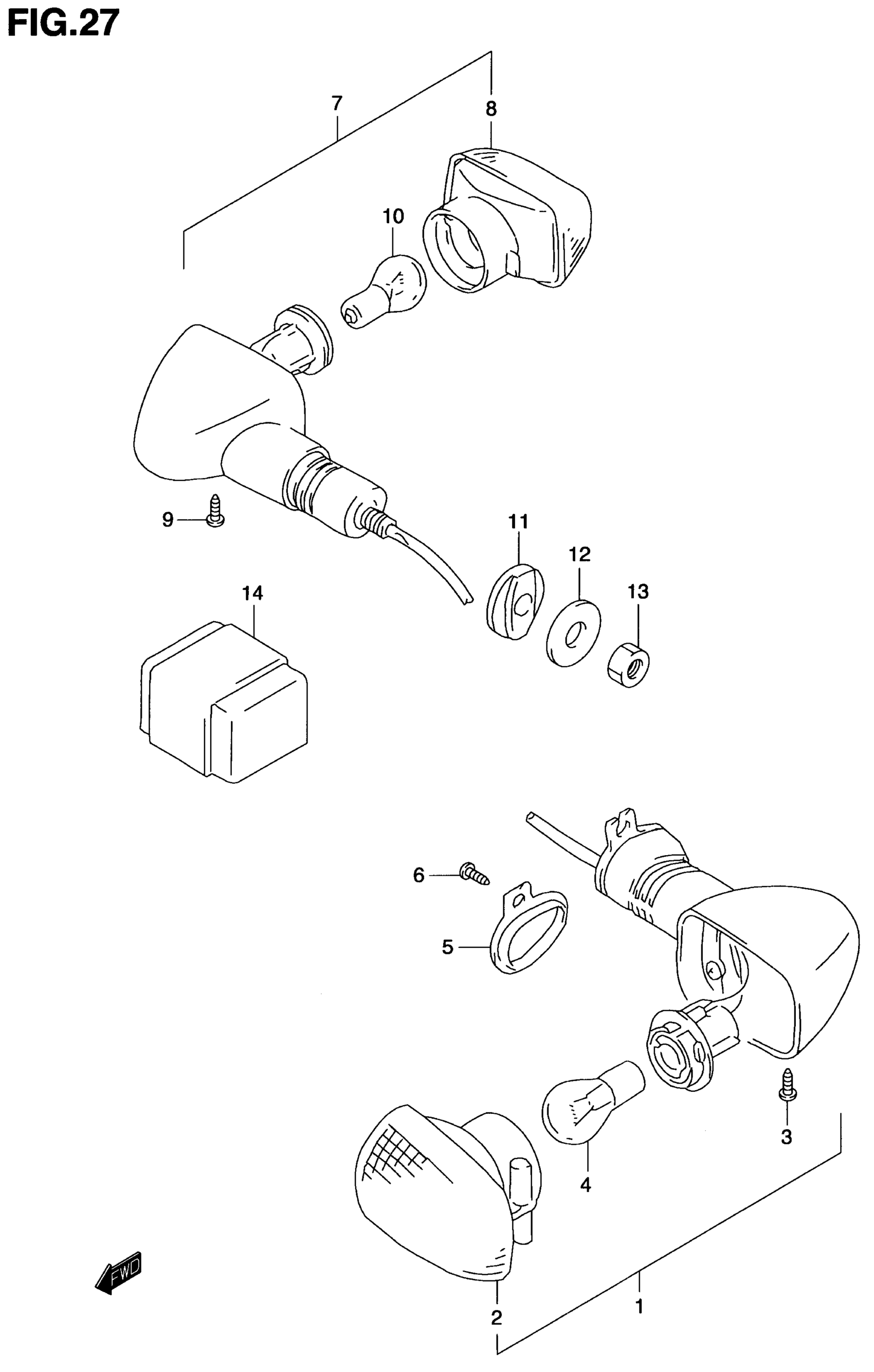

Suzuki TL1000S (2001) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-33E30

$104.15

1

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 2 - 4

35602-33E30

$80.07

2

LAMP UNIT

35610-33E00

$36.97

3

SCREW This part replaces 03242-04123.

03242-0412B

$3.23

4

BULB (12V,21W)

09471-12045

$2.95

5

PLATE, FRONT

35629-33E00

$6.75

6

SCREW This part replaces 03511-05103.

03511-0510A

$2.17

7

LAMP ASSY, REAR TURNSIGNAL RH

35603-33E30

$125.57

7

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 8 - 10

35604-33E30

$125.57

8

LAMP UNIT

35610-33E00

$36.97

9

SCREW This part replaces 03242-04123.

03242-0412B

$3.23

10

BULB (12V,21W)

09471-12045

$2.95

11

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$3.69

12

WASHER (10.5X30X2.3)

09160-10501

$2.33

13

NUT This part replaces 08310-00103.

08310-0010A

$1.86

14

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

$66.55
