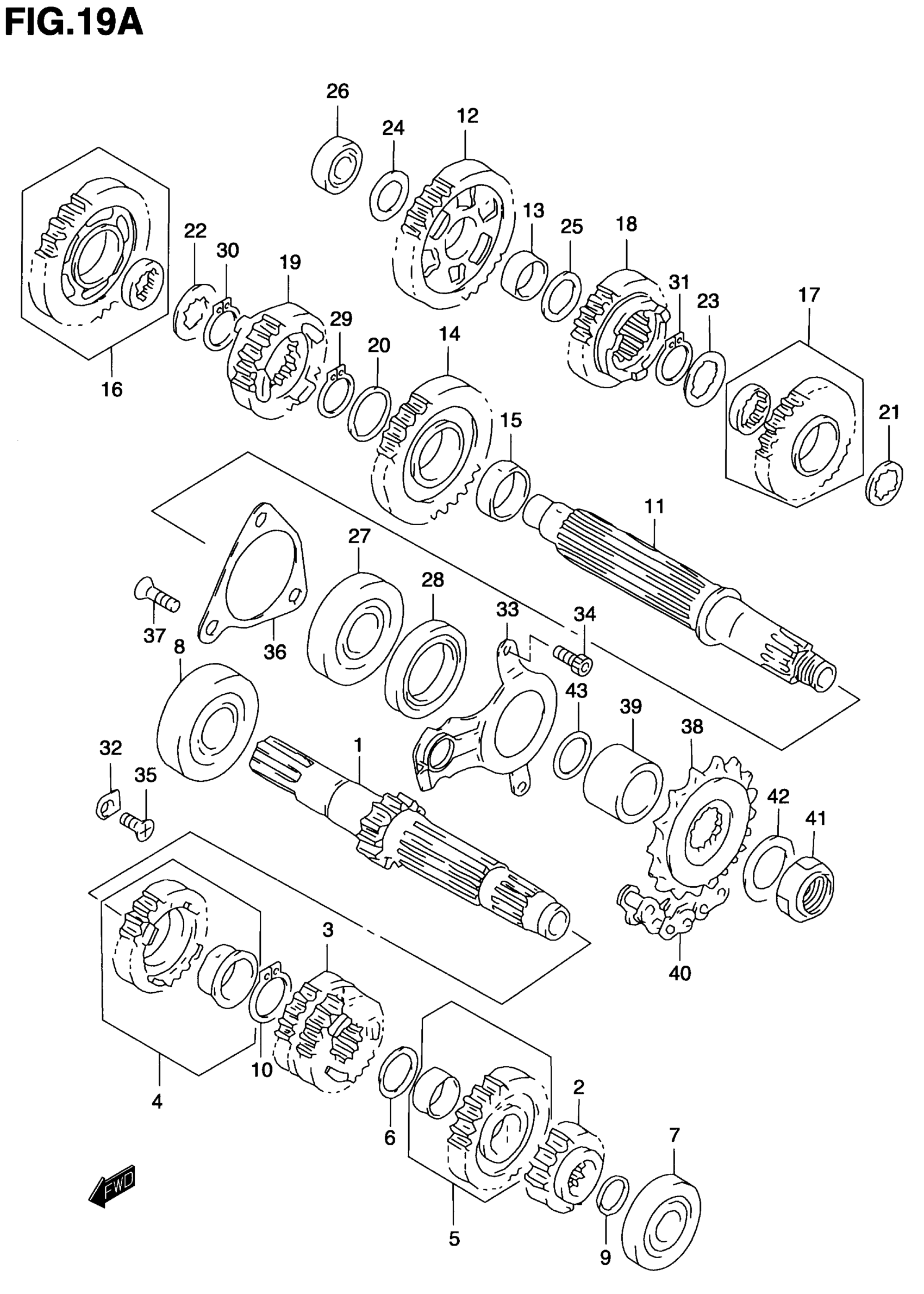

Suzuki TL1000S (2001) TRANSMISSION (MODEL X/Y/K1) Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:12)

24120-02F06

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-02F01

Unavailable

3

GEAR, 3RD & 4TH DRIVE | NT:18/27

24231-02F13

Unavailable

4

NO DESCRIPTION AVAILABLE | NT:23 This part replaces 24251-02810.

24251-02811

Unavailable

5

NO DESCRIPTION AVAILABLE | NT:24 This part replaces 24261-02810.

24261-02811

Unavailable

6

WASHER, 6TH DRIVE | 22X30X1.0

09181-22167

$2.96

7

BEARING, CENTER SHAFT LH | 20X47X14

09262-20139

$44.97

8

BEARING, CENTER SHAFT RH | 25X62X17

09262-25073

$25.92

9

O RING, CENTER SHAFT | D:1.9,ID:16.6

09280-17004

$3.67

10

CIRCLIP, 5TH DRIVE

09380-27001

$2.38

11

SHAFT, DRIVE | MODEL X/Y

24130-02F04

Unavailable

11

SHAFT, DRIVE | MODEL K1

24130-02F10

Unavailable

12

GEAR,1ST DRIVEN NT:32 (NT:32)

24311-02F10

Unavailable

13

BUSH, 1ST DRIVEN

24312-02F00

$28.15

14

GEAR, 2ND DRIVEN (NT:29)

24321-02F11

Unavailable

15

BUSH, 2ND DRIVEN

24322-02F01

$21.52

16

NO DESCRIPTION AVAILABLE | NT:27 This part replaces 24331-02810.

24331-02811

Unavailable

17

GEAR SET,4TH DR | NT:27 This part replaces 24341-02810.

24341-02811

Unavailable

18

GEAR,5TH DRIVEN (NT:25) This part replaces 24351-02F13.

24351-02F20

$123.53

19

GEAR,6TH DRIVEN (NT:24) This part replaces 24361-02F11.

24361-02F30

Unavailable

20

WASHER, 2ND D RIVEN | 27X36X1

09160-27008

$3.68

21

WASHER, 3RD & 4TH DRIVEN | 27X36X2

09167-27002

Unavailable

22

WASHER, 3RD DRIVEN

24333-02F00

$4.99

23

WASHER, 4TH DRIVEN

24333-02F00

$4.99

24

WASHER, 1ST DRIVEN RH | 20X34X1

09181-20251

$2.79

25

WASHER, 1ST DRIVEN LH | 22X34X1

09181-22223

$3.12

26

BEARING, DRIVE SHAFT RH | 20X52X15

09262-20082

$30.63

27

BEARING, DRIVE SHAFT LH | 28X68X20

09262-28040

$113.32

28

SEAL, DRIVE SHAFT | 38X52X8

09283-38020

$29.00

29

CIRCLIP, 2ND DRIVEN

09380-27001

$2.38

30

CIRCLIP, 3RD DRIVEN

09380-27001

$2.38

31

CIRCLIP, 4TH DRIVEN

09380-27001

$2.38

32

RETAINER, CENTER SHAFT

24741-21A00

$2.81

33

RETAINER, DRIVE SHAFT This part replaces 24751-02F01.

24751-06G00

$12.28

34

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

35

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

36

RETAINER, DRIVE SHAFT BRG

24741-02F00

Unavailable

37

SCREW, DRIVE SHAFT (6X12)

09126-06011

$2.03

38

SPROCKET, ENGINE (NT:17) | MODEL X This part replaces 27510-21A20.

27510-21A31

$97.15

38

SPROCKET, ENGINE (NT:17) | MODEL Y/K1

27510-21A31

$97.15

39

SPACER, SPROCKET This part replaces 27531-24B12.

27531-24B13

$35.78

40

CHAIN ASSY (RK50GSVZ3,104L) | MODEL X/Y This part replaces 27600-17C20-104.

27600-24F30-104

Unavailable

40

CHAIN ASSY (RK50GSVZ3,104L) | MODEL K1

27600-24F30-104

Unavailable

41

NUT

09159-20004

$15.67

42

WASHER (25X40X1.5)

09181-25268

$3.16

43

O RING (D:2.4,ID:23.7)

09280-24010

$5.64
