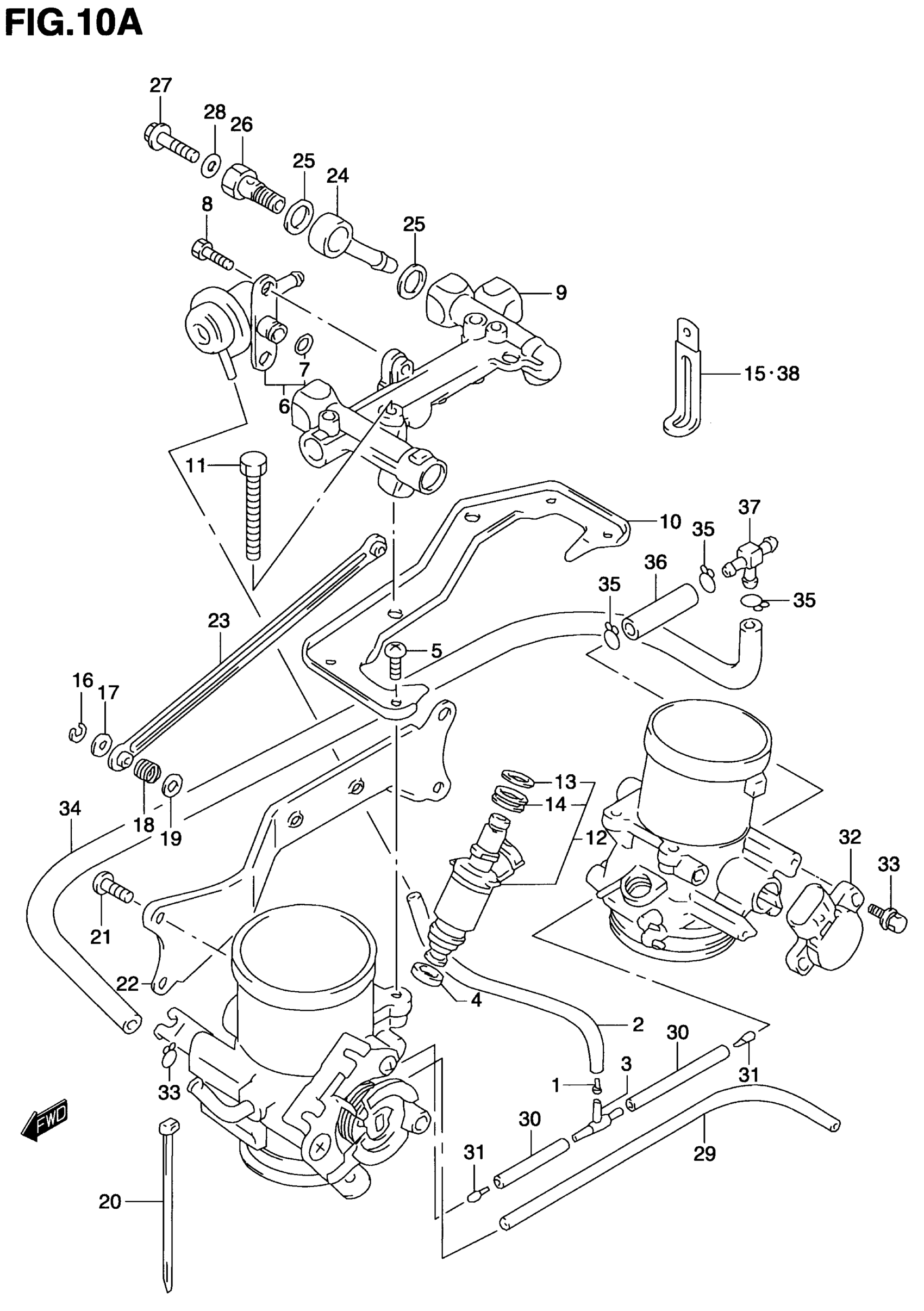

Suzuki TL1000S (2001) THROTTLE BODY FITTING PARTS Diagram

#

Description
Price

1

JET

09493-50006

Unavailable

2

HOSE (L:425) | MODEL V/W/X This part replaces 13682-02F10.

13683-10F61

$17.10

2

HOSE (L:425) | MODEL Y/K1 This part replaces 13683-10F60.

13683-10F61

$17.10

3

NIPPLE

09367-04007

$4.00

4

CUSHION

09320-08062

$13.42

5

SCREW

13602-06148

$3.62

6

REGULATOR, FUEL PRESSURE | MODEL V/W This part replaces 15610-02F00.

15610-02F10

Unavailable

6

REGULATOR, FUEL PRESSURE | MODEL X/Y/K1; Includes Item(s) 7

15610-02F10

Unavailable

7

O RING

15710-09300

$3.71

8

BOLT

13612-02F00

Unavailable

9

PIPE ASSY, DELIVERY

15731-02F00

Unavailable

10

PLATE

13625-02F00

Unavailable

11

BOLT

13612-02F10

Unavailable

12

INJECTOR ASSY | MODEL V This part replaces 15710-02F00.

15710-02FA0

Unavailable

12

INJECTOR ASSY | MODEL W/X/Y/K1; Includes Item(s) 13 - 14

15710-02FA0

Unavailable

13

O RING | MODEL V

15710-09300

$3.71

13

O RING | MODEL W/X/Y/K1

15717-02F00

$3.71

14

GROMMET

15720-09300

$3.71

15

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

16

E RING

13617-44500

Unavailable

17

RING

13615-02F10

Unavailable

18

SPRING | MODEL V/W/X/Y

13543-02F00

Unavailable

18

SPRING | MODEL K1

13546-02FA0

Unavailable

19

RING

13615-02F20

Unavailable

20

CLIP

13671-02F00

Unavailable

21

SCREW

13602-02F00

Unavailable

22

PLATE

13626-02F00

Unavailable

23

LEVER ASSY

13540-02F00

Unavailable

24

CONNECTOR

15815-02F00

Unavailable

25

GASKET

13925-85553

$3.72

26

BOLT

13923-85551

Unavailable

27

PLUG

17568-50F00

$4.76

28

GASKET

09168-06023

$2.35

29

HOSE (L:425) | MODEL V/W/X This part replaces 13681-02F00.

13683-10F61

$17.10

29

HOSE (L:425) | MODEL Y/K1 This part replaces 13683-10F60.

13683-10F61

$17.10

30

HOSE (L:425) | MODEL V/W/X/Y This part replaces 13682-02F00.

13683-10F61

$17.10

30

HOSE (L:425) | MODEL K1 This part replaces 13683-10F60.

13683-10F61

$17.10

31

JET

09493-20015

$12.90

32

SENSOR ASSY,THR This part replaces 13580-02F00.

13580-02F01

$86.81

33

BOLT

13605-02F00

$3.71

34

HOSE | E33

13684-02F10

Unavailable

35

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49

36

HOSE | MODEL V/W/X E33

13684-02F00

Unavailable

36

HOSE | MODEL Y/K1 E33

13684-02F10

Unavailable

37

.NIPPLE | E33

13685-48B00

$12.15

38

CLAMP | E33 This part replaces 09404-06432.

09404-06039

$1.74
