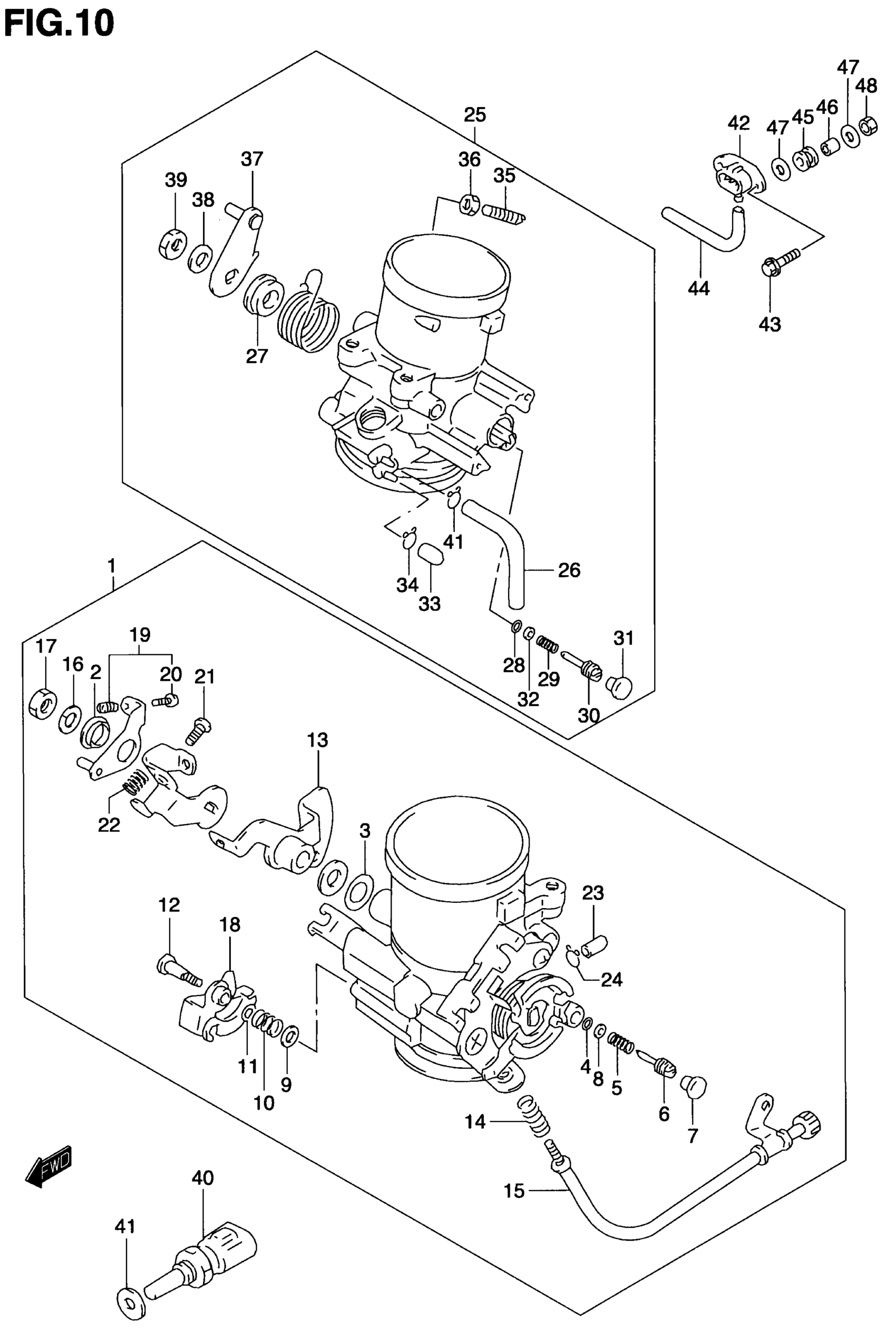

Suzuki TL1000S (2001) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE FRONT | MODEL V

13410-02F00

Unavailable

1

BODY ASSY, THROTTLE FRONT | MODEL V E33

13410-02F20

Unavailable

1

BODY ASSY, THROTTLE FRONT | MODEL W/X/Y/K1

13401-02F50

Unavailable

1

BODY ASSY, THROTTLE FRONT | MODEL W/X/Y/K1 E33; Includes Item(s) 2 - 23

13401-02F60

Unavailable

2

RING

95569-82140

Unavailable

3

PACKING | MODEL V/W/X/Y This part replaces 13556-02F00.

13557-02FA0

Unavailable

3

PACKING | MODEL K1

13557-02FA0

Unavailable

4

O-RING This part replaces 13295-29900.

13295-29901

$4.34

5

SPRING

13494-09410

$4.35

6

ADJUST SCREW

13269-16700

$13.05

7

PLUG

13357-36A00

$5.32

8

WASHER

13606-47A00

$3.28

9

WASHER

13606-38800

Unavailable

10

SPRING

13426-02F00

Unavailable

11

RING

13424-02F00

Unavailable

12

SCREW

13548-20E20

Unavailable

13

LEVER ASSY

13541-02F00

Unavailable

14

SPRING

13271-93011

$5.32

15

ADJUSTER ASSY

13270-02F00

Unavailable

16

WASHER

95559-82140

Unavailable

17

NUT This part replaces 13607-37010.

08310-00087

$2.13

18

LEVER ASSY

13421-02F00

Unavailable

19

SCREW SET, ADJUST

13601-60AT0

Unavailable

20

SCREW This part replaces 02112-04203.

02112-0420A

$1.49

21

SCREW

13602-42E10

Unavailable

22

SPRING

13375-60A00

$8.42

23

CAP

13274-84000

$3.82

24

CLIP

09401-06101

$2.03

25

BODY ASSY, THROTTLE REAR | MODEL V

13420-02F00

Unavailable

25

BODY ASSY, THROTTLE REAR | MODEL V E33

13420-02F20

Unavailable

25

BODY ASSY, THROTTLE REAR | MODEL W/X/Y/K1

13402-02F50

Unavailable

25

BODY ASSY, THROTTLE REAR | MODEL W/X/Y/K1 E33; Includes Item(s) 26 - 39

13402-02F60

Unavailable

26

HOSE (L:425) | MODEL V/W/X This part replaces 13683-02F00.

13683-10F61

$17.10

26

HOSE (L:425) | MODEL Y/K1 This part replaces 13683-10F60.

13683-10F61

$17.10

27

RING | MODEL V/W/X/Y

13615-02F00

Unavailable

27

RING | MODEL K1

13574-02FA0

Unavailable

28

O-RING This part replaces 13295-29900.

13295-29901

$4.34

29

SPRING

13494-09410

$4.35

30

ADJUST SCREW

13269-16700

$13.05

31

PLUG

13357-36A00

$5.32

32

WASHER

13606-47A00

$3.28

33

CAP

13274-84000

$3.82

34

CLIP

09401-06101

$2.03

35

SCREW | MODEL V/W/X/Y

13267-02F00

Unavailable

35

SCREW | MODEL K1

13605-47080

$7.77

36

NUT

13607-47070

$3.13

37

LEVER ASSY

13542-02F00

Unavailable

38

WASHER

95559-82140

Unavailable

39

NUT This part replaces 13607-37010.

08310-00087

$2.13

40

SENSOR, WATER TEMPERATURE

13650-51G10

$106.62

41

GASKET (12X17X1.0)

09168-12017

$1.95

42

SENSOR, AIR PRESSURE

18590-80C50

Unavailable

43

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

44

HOSE | L:600?150

09355-40805-600

$11.33

45

CUSHION

09320-10501

$6.23

46

SPACER

09180-06310

$1.91

47

WASHER

09160-06077

$1.91

48

NUT This part replaces 08316-10063.

08316-1006B

$2.50
