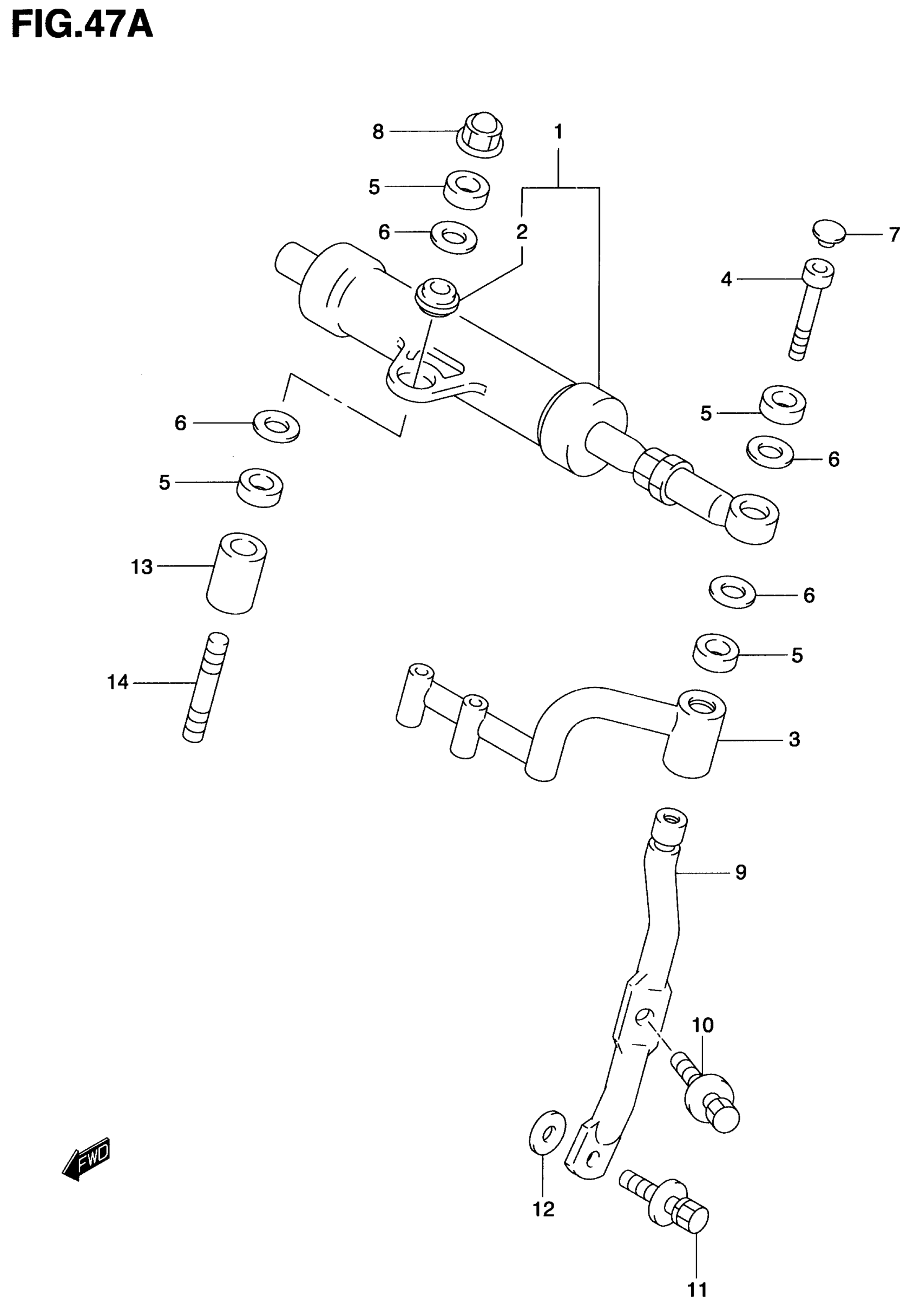

Suzuki TL1000S (2001) STEERING DAMPER (MODEL W/X/Y/K1) Diagram

#

Description
Price

1

DAMPER ASSY, STEERING | E3

51750-02F00

Unavailable

1

DAMPER ASSY, STEERING | E28; Includes Item(s) 2

51750-02F10

Unavailable

2

BEARING (8X17.5X11)

09269-08003

$51.13

3

STAY, STEERING DAMPER

51710-02F10

Unavailable

4

BOLT (8X50)

07130-08507

$4.77

5

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

6

WASHER (8X12X0.8)

09181-08106

$2.06

7

CAP

09250-06011

$2.50

8

NUT

08313-20087

$2.19

9

ROD, STEERING DAMPER

51720-02F10

Unavailable

10

BOLT (6X30)

09116-06171

$3.08

11

BOLT This part replaces 51735-02F00.

09118-06115

Unavailable

12

.WASHER (6.5X20X1.6)

09160-06088

$1.65

13

SPACER, DAMPER (8.1X17X25.5)

51722-02F10

Unavailable

14

BOLT (8X50)

09108-08167

Unavailable
