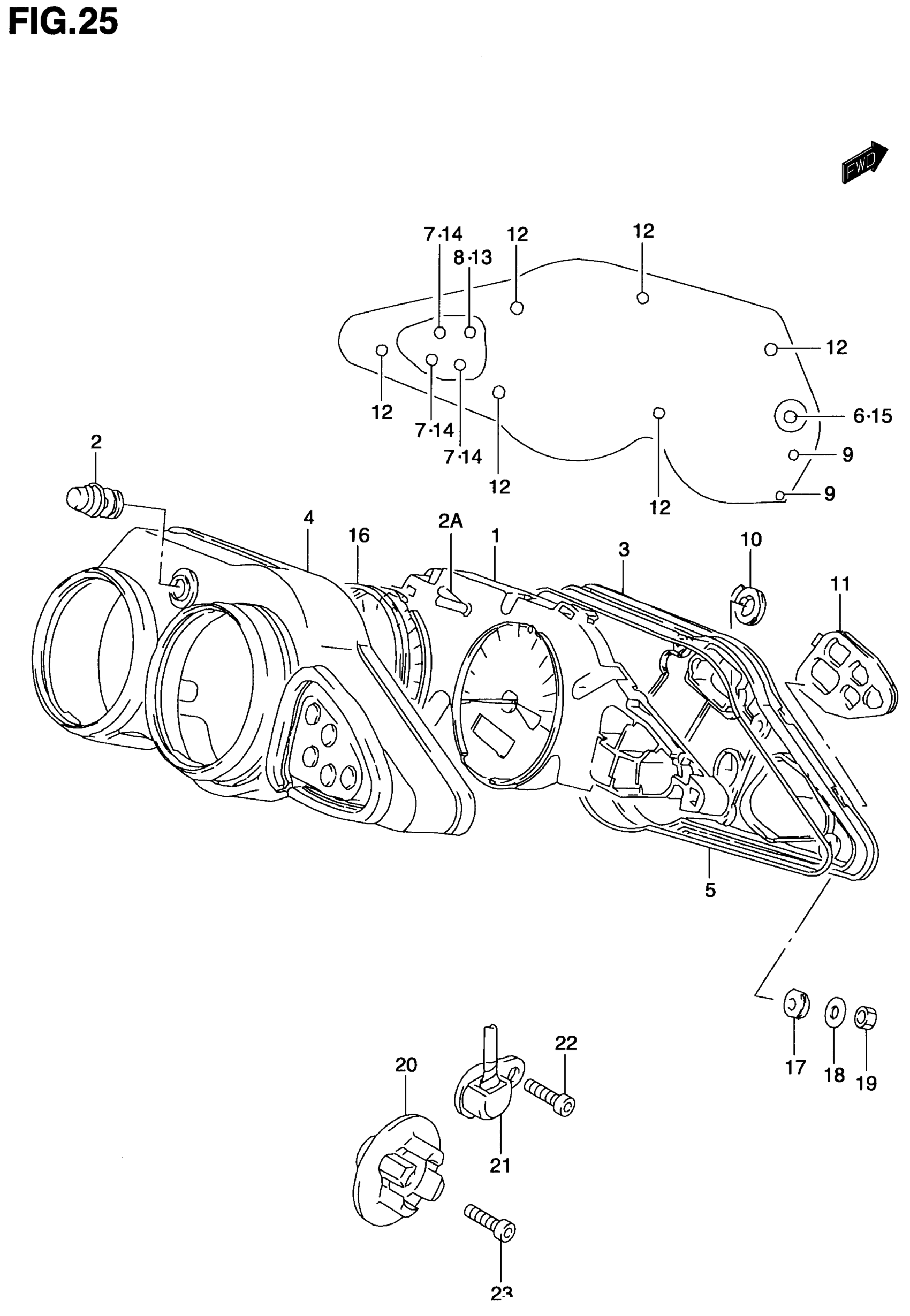

Suzuki TL1000S (2001) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL V/W/X/Y

34119-02F30

Unavailable

1

SPEEDOMETER (KILO) | MODEL V/W/X/Y E28

34119-02F10

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL K1

34119-02F80

Unavailable

1

SPEEDOMETER (KILO) | MODEL K1 E28

34119-02F60

Unavailable

2

SWITCH, GUM

34124-02F00

Unavailable

2A

LEVER

34123-02F00

Unavailable

3

CASE ASSY This part replaces 34130-02F00.

34130-02F01

Unavailable

4

VISOR

34150-02F00

Unavailable

5

GASKET

34153-02F00

Unavailable

6

SOCKET

34172-71E70

$7.27

7

SOCKET

34173-19D00

$18.63

8

SOCKET

34173-19D70

Unavailable

9

SCREW

34183-33DC0

Unavailable

10

BLIND, CAP (ILLUMI) | MODEL V/W/X/Y

34198-02F00

Unavailable

11

BLIND, CAP (P.BOX)

34198-02F10

Unavailable

12

SCREW

03211-04207

$1.49

13

BULB (12V,3W)

09471-12085

$5.01

14

BULB (12V,1.7W)

09471-12100

$4.13

15

BULB (14V,0.84W)

09471-12189

$5.57

16

CUSHION, SPEED & TACHO

34188-02F00

Unavailable

17

.CUSHION

34996-43410

$4.35

18

WASHER, METER (5.5X16X1.2)

09160-05037

$1.49

19

NUT This part replaces 08310-00053.

08310-0005A

$1.84

20

ROTOR,SPEED | MODEL V/W/X/Y This part replaces 34981-42E00.

34981-42E01

$17.42

20

ROTOR,SPEED | MODEL K1 This part replaces 34981-35F00.

34981-38G01

$17.92

21

SENSOR, SPEED | MODEL V/W/X/Y This part replaces 34990-33E10.

34990-35F00

$127.72

21

SENSOR, SPEED | MODEL K1

34990-35F00

$127.72

22

BOLT This part replaces 07120-05103.

07120-0510B

$3.05

23

BOLT | MODEL V/W/X/Y This part replaces 07130-08203.

07130-0820B

$3.49

23

BOLT | MODEL K1 This part replaces 07130-08253.

07130-0825B

$3.37
