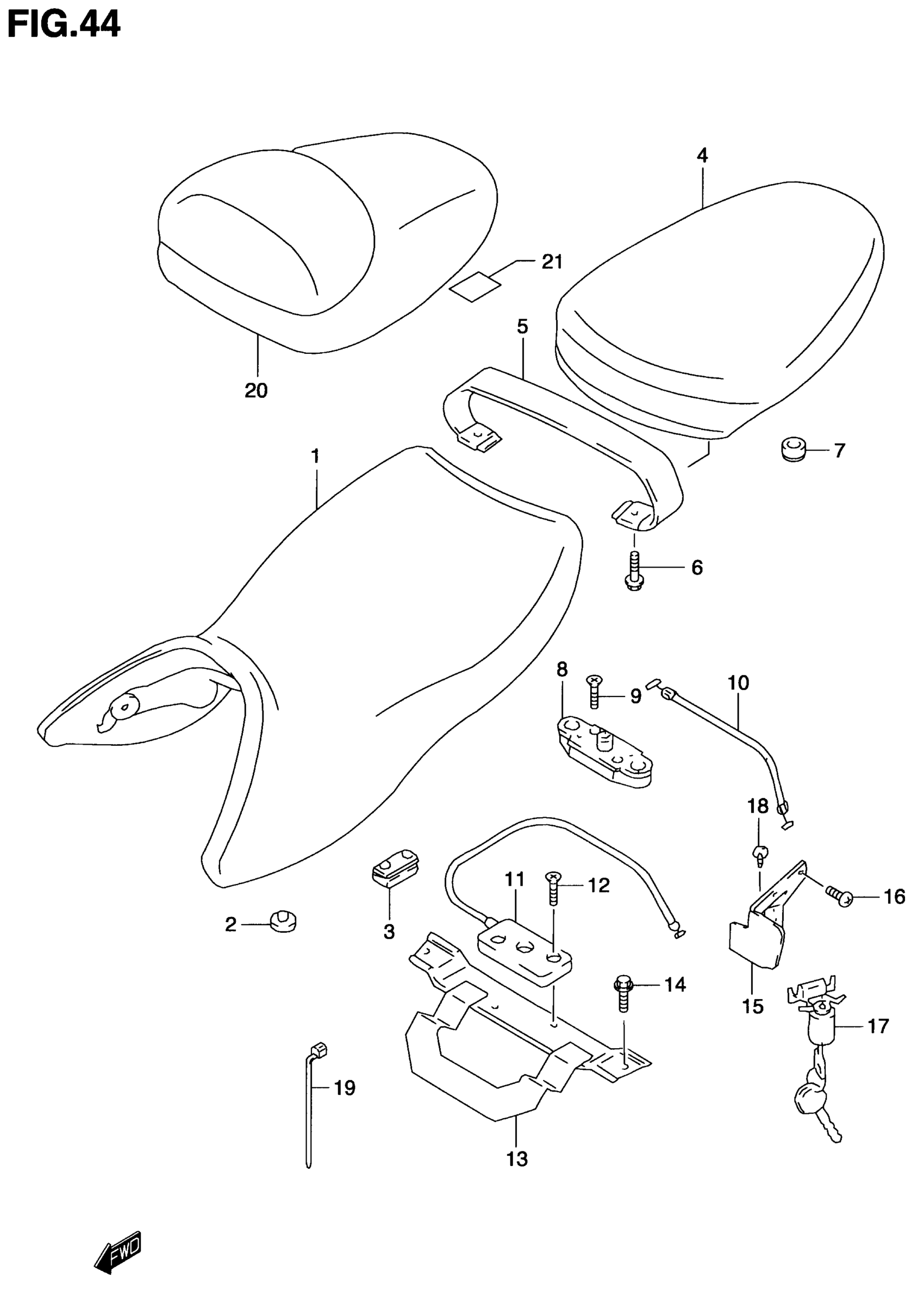

Suzuki TL1000S (2001) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | Includes Item(s) 2 - 3

45100-02F10-R42

Unavailable

2

CUSHION,SEAT This part replaces 45148-36C00.

45148-36C01

$4.23

2

CUSHION, FRONT

09321-10002

$2.22

3

CUSHION

45149-31300

$3.56

4

SEAT ASSY, PILLION (BLACK) | Includes Item(s) 5 - 7

45300-02F20-R42

Unavailable

5

BAND ASSY, SEAT (BLACK)

45180-02F20-R42

Unavailable

6

BOLT

01550-06207

$2.30

7

CUSHION

45213-31300

$2.81

8

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

9

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

10

CABLE, SEAT LOCK

45280-38400

$11.63

11

BRACKET, SEAT FRONT

45220-02F00

Unavailable

12

SCREW This part replaces 02122-06253.

02122-0625A

$1.49

13

BRACKET, SEAT LOCK

45120-02F00

Unavailable

14

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

15

BRACKET, SEAT LOCK

45289-02F00

Unavailable

16

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

17

NO DESCRIPTION AVAILABLE This part replaces 95700-02820.

95700-02821

Unavailable

18

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

19

CLAMP

09407-14403

$2.26

20

BOX, SEAT TAIL (RED) | MODEL V/W

45550-02F00-28V

Unavailable

20

BOX, SEAT TAIL (BLACK) | MODEL V/W

45550-02F00-33J

Unavailable

20

BOX, SEAT TAIL (ORANGE) | MODEL X

45550-02F00-Y0W

Unavailable

20

BOX, SEAT TAIL (BLUE) | MODEL X E28

45550-02F00-Y7H

Unavailable

20

BOX,SEAT TAIL | MODEL Y This part replaces 45550-02F00-Y7M.

45550-02F00

Unavailable

20

BOX, SEAT TAIL (YELLOW) | MODEL Y E28

45550-02F00-Y9H

Unavailable

20

BOX,SEAT TAIL | MODEL K1 This part replaces 45550-02F00-YC2.

45550-02F00

Unavailable

20

BOX, SEAT TAIL (BLACK) | MODEL K1

45550-02F00-Y7L

Unavailable

21

PROTECTOR, COVER (5PIECE)

45559-33E00

Unavailable
